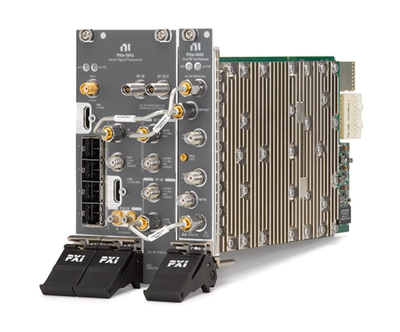

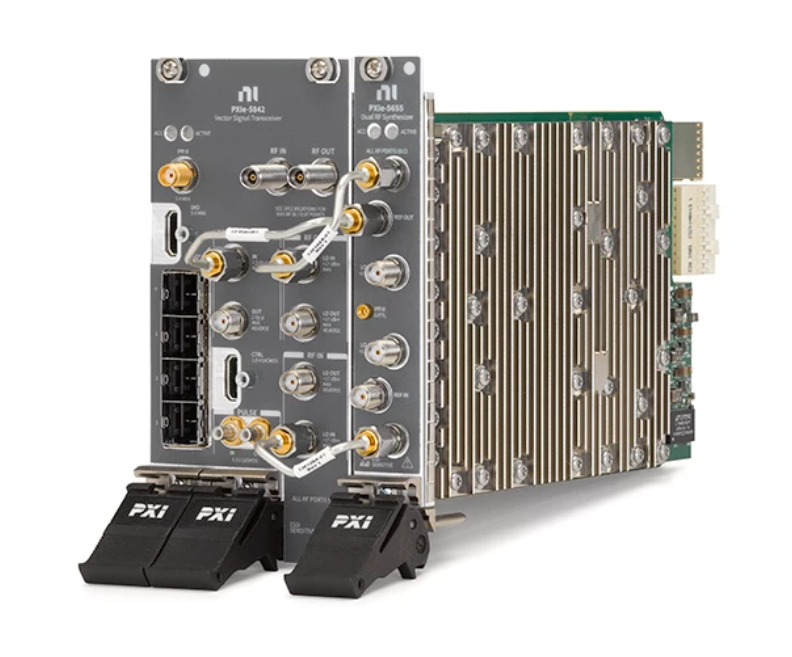

The PXIe-5842 is a vector signal transceiver (VST), which combines a vector signal generator and vector signal analyzer into a single four-slot PXI Express instrument. This VST provides the fast measurement speed and small form factor of a production test box with the flexibility and high performance of R&D-grade box instruments.
The PXIe-5842 benefits from PXI modularity and scalability, as up to four PXIe-5842 VSTs can fit into one 18-slot PXI Chassis. Additionally, the VST provides the error vector magnitude (EVM) performance required to test a variety of cellular and wireless standards such as Wi-Fi 7 and 5G NR. The PXIe-5842 supports frequency coverage and bandwidth availability for a wide range of semiconductor, aerospace, and defense applications.
Combines a vector signal generator and vector signal analyzer with FPGA-based, real-time signal processing and control.
The PXI Vector Signal Transceiver (VST) combines the flexibility of a software defined radio architecture and RF instrument class performance. You can use the VST to test a variety of cellular and wireless standards, and you can easily expand the small PXI Express form factor to support multiple input, multiple output (MIMO) configurations. The VST software is built on LabVIEW FPGA, and features several starting points for your application including application IP, reference designs, examples, and LabVIEW sample projects.
| Specifications |
|
|
|
|
|
|
PXI
Vector Signal Transceiver
|
|
|
|
|
|
|
| Model Overview |
|
|
|
|
|
|
Model
Part Number
| RF Generator
Instantaneous Bandwidth
| RF Generator
Frequency Range
| RF Analyzer
Frequency Range
| RF Analyzer
Instantaneous Bandwidth
| Generator Tuning Time
(Typical)
| I/O Type |
PXIe-5820
783967-01
| 1 GHz | 0 MHz to 500 MHz | 0 Hz to 500 MHz | 1 GHz | 0.38ms | Baseband |
PXIe-5830
787047-01
| 1 GHz | 5 GHz to 12 GHz | 5 GHz to 12 GHz | 1 GHz | -- | RF |
PXIe-5831
786853-01
| 1 GHz | 5 GHz to 21 GHz | 5 GHz to 21 GHz | 1 GHz | -- | RF |
PXIe-5831
786856-01
| 1 GHz | 5 GHz to 31.3 GHz
37 GHz to 44 GHz
| 5 GHz to 44 GHz | 1 GHz | -- | RF mmWave |
PXIe-5832
787728-01
| 1 GHz | 5 GHz to 44 GHz | 5 GHz to 44 GHz | 1 GHz | -- | RF mmWave |
PXIe-5841
788843-01
| -- | -- | 9 kHz to 6 GHz | 1 GHz | 380 μs | RF |
PXIe-5841
788842-01
| 1 GHz | 9 kHz to 6 GHz | -- | -- | 380 μs | RF |
PXIe-5841
788845-01
| -- | -- | 9 kHz to 6 GHz | 1 GHz | 175 μs | RF |
PXIe-5841
788844-01
| 1 GHz | 9 kHz to 6 GHz | -- | -- | 175 μs | RF |
PXIe-5841
786982-01
| 1 GHz | 9 kHz to 6 GHz | 9 kHz to 6 GHz | 1 GHz | 380 μs | RF |
PXIe-5841
785832-01
| 1 GHz | 9 kHz to 6 GHz | 9 kHz to 6 GHz | 1 GHz | 175 μs | RF |
PXIe-5842
788565-03
| 1 GHz | 50 MHz to 8 GHz | 50 MHz to 8 GHz | 1 GHz | 230 μs | RF |
PXIe-5842
788565-02
| 2 GHz | 50 MHz to 12 GHz | 50 MHz to 12 GHz | 2 GHz | 230 μs | RF |
PXIe-5842
788565-01
| 2 GHz | 50 MHz to 23 GHz | 50 MHz to 23 GHz | 2 GHz | 230 μs | RF |
