EMPIRE XPU™ – developed by engineers for engineers – is one of the leading 3D electromagnetic field simulators. It is based on the powerful Finite Difference Time Domain method (FDTD), which has become an industrial standard for RF component and antenna design. Due to EMPIRE’s unique XPU technology (Accelerated Processor Usage) it exhibits the fastest simulation engine, known today. This one-of-a-kind software utilizes a CPU based workflow, which outperforms GPU hardware acceleration in both speed and memory access. With this highly optimized kernel fullwave EM simulations have seen processing rates of over 9 GCells/sec on a dual CPU workstation.
A wide range of applications can be handled efficiently with EMPIRE XPU. Time domain, S-parameters, near and far field data are generated all in one simulation run for a broad frequency range.
| Applications: |
| Planar and multi-layered circuits |
| Antennas including environments |
| Microwave passive components |
| RF-MEMS structures |
| SI analysis of packages and PCBs |

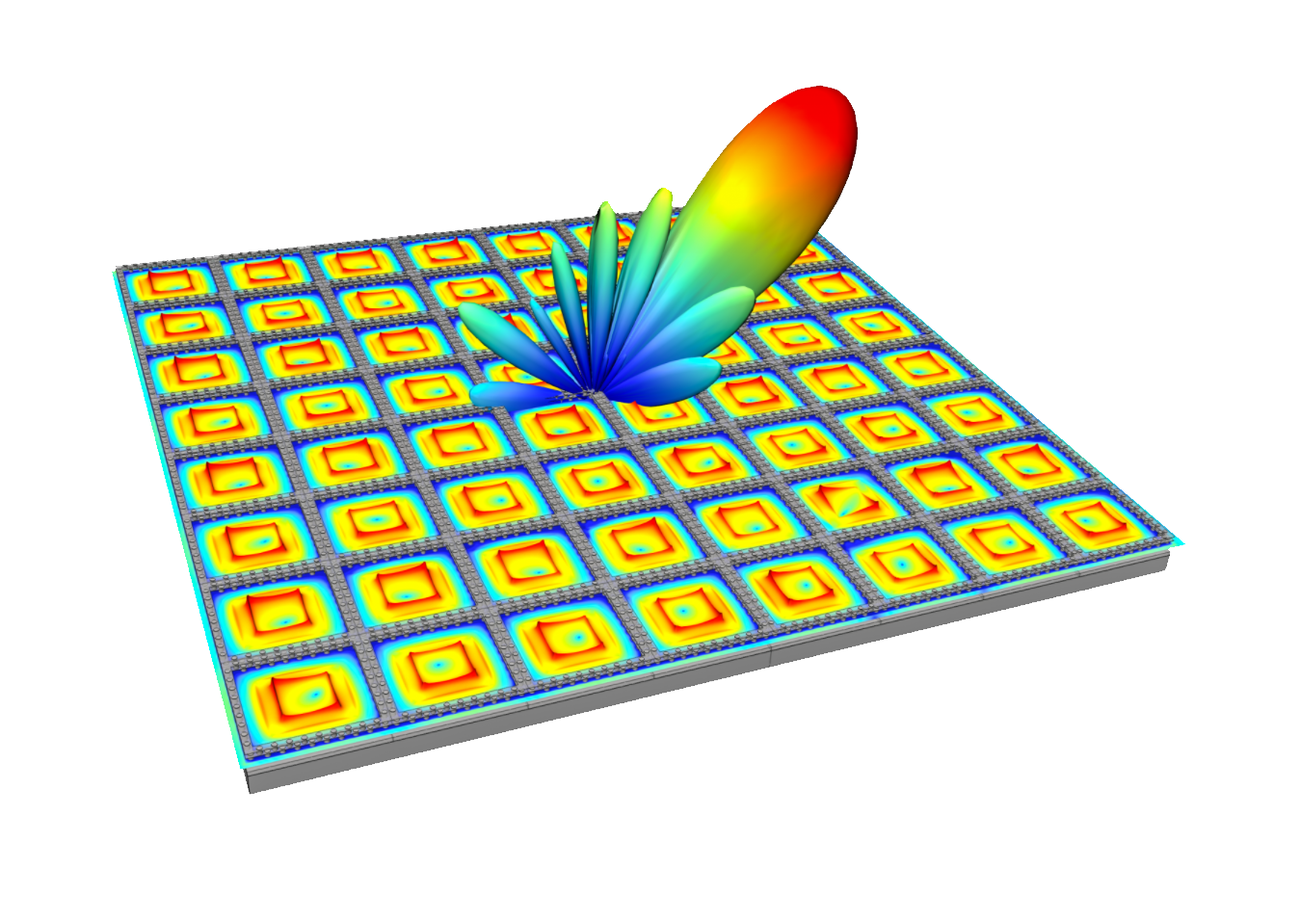

| Antenna arrays Radar cross section |
| Waveguide components HQ resonators |
| EMC / EMI Circuit simulation |
| Thermal analysis |
| Biomedical applications (imaging devices, implantable devices, field exposure) |
| Advanced Features: |
| Easy-to-use interface optimized for a fast model set up 2D and 3D import and export filters |
| Automatic expert-level meshing |
| Parametric geometry and properties |
| Libraries for sources and objects |
| Plane wave, multiple port, waveguide and nearfield sources |
| Perfect Geometry Approximation (PGA) for reducing staircase effect |
| Thin sheet model for metals |
| Batch job queuing, parameter sweep and optimization |
| Smart signal processing 3D near and far field visualization Job distribution (remote control) and job sharing (cluster solver) capability |
