Keysight Technologies N2785A

Configure Unit

Available to Buy Online

View Configurations

Probe Positioner; Two-Arm

Model

N2785A

Product Family

Oscilloscopes & Logic Analyzers

Manufacturer

Keysight Technologies

Configured models contain the following attributes:

Oscilloscopes & Logic AnalyzersOscilloscopes

Configurations

Key Specs

Product Overview

Resources

Let us help you with your exact configuration

Please use 'Get Quick Quote' or ‘Configure Unit’ and we’ll contact you and quote for your exact need.

Configure Unit

You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.

Product Overview

Provide stable XY positioning with only a “lift and drop” motion for hands-free probing.

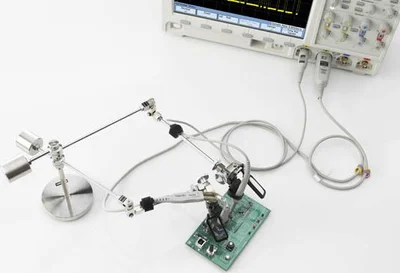

The N2785A probe positioner provides quick and stable X-Y positioning with only a “lift and drop” motion to put the probe in place for PC boards and devices that require hands-free probing. This probe holder also employs a weight stabilization technique to keep constant pressure at the probing point so that the probe tip stays in position even when the target board is shaken.

The N2785A is compatible with most Keysight scope probes including InfiniiMax single-ended or differential browser probes, as well as the scope probes from other vendors.

Key Features

Easy-to-manipulate probe arms for hands-free browsing

Two articulated arms with hi-mass base

Quick and stable XY positioning

Weight stabilization technique in probe holder keeps constant pressure at the probing point

Compatible with most Keysight and other vendor’s scope probes

Specifications
Probe Positioners
Model Overview
Model	Description
N2784A	1-arm probe positioner
N2785A	2-arm probe positioner
N2786A	Two leg positioner
N2787A	3D positioner

Notes:

1. N2784A and N2785A include 3x magnifying glass, arm strap, cable tie, probe rest and manual.

2. N2786A includes manual.

3. N2787A includes probe head and manual. 320 mm

4. Probe is not included in the positioner.
