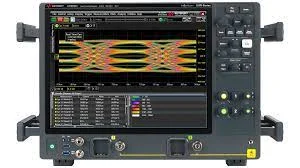

Keysight Technologies UXR0504A

Infiniium UXR Real-Time Oscilloscope; 4 Channels, 50 GHz

Model

UXR0504A

Product Family

Oscilloscopes & Logic Analyzers

Manufacturer

Keysight Technologies

Configured models contain the following attributes:

Oscilloscopes & Logic AnalyzersOscilloscopes 20GHz+

Configurations

Key Specs

Product Overview

Resources

Let us help you with your exact configuration

Please use 'Get Quick Quote' and we’ll contact you and quote for your exact need.

You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.

Product Overview

Developing next generation technology requires world-class signal integrity from your test equipment. Achieve design insights you never thought possible with the highest bandwidth, highest ENOB, and lowest noise floor. Keysight’s breakthrough technology enables you to conquer even the most difficult measurement and design challenges.

Key Features

5 to 110 GHz of bandwidth, with the most comprehensive set of probing, analysis applications, and measurements for advanced technologies

Most accurate oscilloscope at any bandwidth - lowest noise, highest ENOB, and 10-bit vertical resolution enable you to see the truest representation of of your signal

Solve problems faster with hardware-accelerated measurements and analysis

EVM performance for wideband mmWave measurements that rivals even the best signal analyzers

Protect your investment with a fully upgradeable, multipurpose platform capable of time domain, frequency domain, and phase noise measurements - the last oscilloscope you will ever need to purchase

Benefits

Have confidence in your measurements with superior signal integrity and industry leading specifications.

Measure with the highest effective number of bits (ENOB) at full bandwidth.

Upgrade your oscilloscope to meet your ever evolving design requirements with full bandwidth and channel upgradeability.

Test with the lowest noise floor: less than 1 mVrms of vertical noise at 110 GHz.

Ensure accuracy in your measurements with the lowest jitter: less than 25 fs (rms) of intrinsic jitter and less than 10 fs (rms) of inter-channel jitter.

Guarantee precision with the self-calibration modules.

Specifications
Infiniium UXR‑Series Oscilloscopes
Model Overview
Model	Bandwidth	Analog Channels	Channel Upgrades	Max. Sample Rate	Max. Memory Depth	Minimum Rise/Fall Time	Bandwidth Upgrades
UXR0051AP	5 GHz	1	Yes	256 GSa/s	2 Gpts max 200 Mpts standard	7.5ps(10-90%) 5.3ps(20-80%)	up to 110 GHz via FW
UXR0104A	10 GHz	4	Yes	128 GSa/s	2 Gpts max 200 Mpts standard	n/a	up to 33 GHz via FW up to 110 GHz via HW
UXR0134A	13 GHz	4	n/a	128 GSa/s	2 Gpts max 200 Mpts standard	33.8ps(10-90%) 23.9ps(20-80%)	up to 33 GHz via FW up to 110 GHz via HW
UXR0164A	16 GHz	4	n/a	128 GSa/s	2 Gpts max 200 Mpts standard	27.5ps(10-90%) 19.4ps(20-80%)	up to 33 GHz via FW up to 110 GHz via HW
UXR0204A	20 GHz	4	n/a	128 GSa/s	2 Gpts max 200 Mpts standard	22.0ps(10-90%) 15.6ps(20-80%)	up to 33 GHz via FW up to 110 GHz via HW
UXR0254A	25 GHz	4	n/a	128 GSa/s	2 Gpts max 200 Mpts standard	17.6ps(10-90%) 12.4ps(20-80%)	up to 33 GHz via FW up to 110 GHz via HW
UXR0334A	33 GHz	4	n/a	128 GSa/s	2 Gpts max 200 Mpts standard	13.3ps(10-90%) 9.4ps(20-80%)	up to 110 GHz via HW
UXR0252AP	25 GHz	2	n/a	256 GSa/s	2 Gpts max 200 Mpts standard	7.5ps(10-90%) 5.3ps(20-80%)	up to 110 GHz via FW
UXR0254AP	25 GHz	4	n/a	256 GSa/s	2 Gpts max 200 Mpts standard	7.5ps(10-90%) 5.3ps(20-80%)	up to 110 GHz via FW
UXR0404AP	40 GHz	4	n/a	256 GSa/s	2 Gpts max 200 Mpts standard	7.5ps(10-90%) 5.3ps(20-80%)	up to 110 GHz via FW
UXR0402AP	40 GHz	2	Yes	256 GSa/s	2 Gpts max 200 Mpts standard	7.5ps(10-90%) 5.3ps(20-80%)	up to 110 GHz via FW
UXR0402A	40 GHz	2	Yes	256 GSa/s	2 Gpts max 200 Mpts standard	11.0ps(10-90%) 7.8ps(20-80%)	up to 70 GHz via FW up to 110 GHz via HW
UXR0404A	40 GHz	4	n/a	256 GSa/s	2 Gpts max 200 Mpts standard	11.0ps(10-90%) 7.8ps(20-80%)	up to 70 GHz via FW up to 110 GHz via HW
UXR0502A	50 GHz	2	Yes	256 GSa/s	2 Gpts max 200 Mpts standard	8.8ps(10-90%) 6.2ps(20-80%)	up to 70 GHz via FW up to 110 GHz via HW
UXR0504A	50 GHz	4	n/a	256 GSa/s	2 Gpts max 200 Mpts standard	8.8ps(10-90%) 6.2ps(20-80%)	up to 70 GHz via FW up to 110 GHz via HW
UXR0592AP	59 GHz	2	Yes	256 GSa/s	2 Gpts max 200 Mpts standard	7.5ps(10-90%) 5.3ps(20-80%)	up to 110 GHz via FW
UXR0594AP	59 GHz	4	n/a	256 GSa/s	2 Gpts max 200 Mpts standard	7.5ps(10-90%) 5.3ps(20-80%)	up to 110 GHz via FW
UXR0592A	59 GHz	2	Yes	256 GSa/s	2 Gpts max 200 Mpts standard	7.5ps(10-90%) 5.3ps(20-80%)	up to 70 GHz via FW up to 110 GHz via HW
UXR0594A	59 GHz	4	n/a	256 GSa/s	2 Gpts max 200 Mpts standard	7.5ps(10-90%) 5.3ps(20-80%)	up to 70 GHz via FW up to 110 GHz via HW
UXR0702AP	70 GHz	2	Yes	256 GSa/s	2 Gpts max 200 Mpts standard	7.5ps(10-90%) 5.3ps(20-80%)	up to 110 GHz via FW
UXR0704AP	70 GHz	4	n/a	256 GSa/s	2 Gpts max 200 Mpts standard	7.5ps(10-90%) 5.3ps(20-80%)	up to 110 GHz via FW
UXR0702A	70 GHz	2	Yes	256 GSa/s	2 Gpts max 200 Mpts standard	6.3ps(10-90%) 4.4ps(20-80%)	up to 110 GHz via HW
UXR0704A	70 GHz	4	n/a	256 GSa/s	2 Gpts max 200 Mpts standard	6.3ps(10-90%) 4.4ps(20-80%)	up to 110 GHz via HW
UXR0802A	80 GHz	2	Yes	256 GSa/s	2 Gpts max 200 Mpts standard	5.6ps(10-90%) 3.9ps(20-80%)	up to 110 GHz via FW
UXR0804A	80 GHz	4	n/a	256 GSa/s	2 Gpts max 200 Mpts standard	5.6ps(10-90%) 3.9ps(20-80%)	up to 110 GHz via FW
UXR1002A	100 GHz	2	Yes	256 GSa/s	2 Gpts max 200 Mpts standard	5.6ps(10-90%) 3.9ps(20-80%)	up to 110 GHz via FW
UXR1004A	100 GHz	4	n/a	256 GSa/s	2 Gpts max 200 Mpts standard	5.6ps(10-90%) 3.9ps(20-80%)	up to 110 GHz via FW
UXR1102A	110 GHz	2	Yes	256 GSa/s	2 Gpts max 200 Mpts standard	5.6ps(10-90%) 3.9ps(20-80%)	Model at max value
UXR1104A	110 GHz	4	n/a	256 GSa/s	2 Gpts max 200 Mpts standard	5.6ps(10-90%) 3.9ps(20-80%)	Model at max value

Specifications
Infiniium UXR‑Series Oscilloscopes
Model Overview
Model	Description
UXR0051AP	The UXR0051AP is the 5 GHz, 1 channel, 1mm input, Infiniium UXR-Series real-time oscilloscope.
UXR0104A	The World's Most Advanced Oscilloscope
UXR0134A	The UXR0134A is the 13 GHz, 4 channel, Infiniium UXR-Series real-time oscilloscope.
UXR0164A	The UXR0164A is the 16 GHz, 4 channel, Infiniium UXR-Series real-time oscilloscope
UXR0204A	The UXR0204A is the 20 GHz, 4 channel, Infiniium UXR-Series real-time oscilloscope.
UXR0254A	The UXR0254A is the 25 GHz, 4 channel, Infiniium UXR-Series real-time oscilloscope.
UXR0334A	The UXR0334A is the 33 GHz, 4 channel, Infiniium UXR-Series real-time oscilloscope.
UXR0252AP	The UXR0252AP is the 25 GHz, 2 channel, 1mm input, Infiniium UXR-Series real-time oscilloscope.
UXR0254AP	The UXR0254AP is the 25 GHz, 4 channel, 1mm input, Infiniium UXR-Series real-time oscilloscope.
UXR0404AP	The UXR0404AP is the 40 GHz, 4 channel, 1mm input, Infiniium UXR-Series real-time oscilloscope
UXR0402AP	The UXR0402AP is the 40 GHz, 2 channel, 1mm input, Infiniium UXR-Series real-time oscilloscope
UXR0402A	The UXR0402A is the 40 GHz, 2 channel, Infiniium UXR-Series real-time oscilloscope
UXR0404A	The UXR0404A is the 40 GHz, 4 channel, Infiniium UXR-Series real-time oscilloscope
UXR0502A	The UXR0502A is the 50 GHz, 2 channel, Infiniium UXR-Series real-time oscilloscope
UXR0504A	The UXR0504A is the 50 GHz, 4 channel, Infiniium UXR-Series real-time oscilloscope
UXR0592AP	The UXR0592AP is the 59 GHz, 2 channel, 1mm input, Infiniium UXR-Series real-time oscilloscope
UXR0594AP	The UXR0594AP is the 59 GHz, 4 channel, 1mm input, Infiniium UXR-Series real-time oscilloscope
UXR0592A	The UXR0592A is the 59 GHz, 2 channel, Infiniium UXR-Series real-time oscilloscope
UXR0594A	The UXR0594A is the 59 GHz, 4 channel, Infiniium UXR-Series real-time oscilloscope
UXR0702AP	70 GHz, two-channel, 1 mm input Infiniium UXR-Series real-time oscilloscope
UXR0704AP	The UXR0704AP is the 70 GHz, 4 channel, 1mm input, Infiniium UXR-Series real-time oscilloscope
UXR0702A	70 GHz, two-channel Infiniium UXR-Series real-time oscilloscope
UXR0704A	The UXR0704A is the 70 GHz, 4 channel, Infiniium UXR-Series real-time oscilloscope
UXR0802A	The UXR0802A is the 80 GHz, 2 Channel, UXR-Series Real-Time Infiniium Oscilloscope
UXR0804A	The UXR0804A is the 80 GHz, 4 Channel, UXR-Series Real-Time Infiniium Oscilloscope
UXR1002A	The UXR1002A is the 100 GHz, 2 Channel, UXR-Series Real-Time Infiniium Oscilloscope
UXR1004A	The UXR1004A is the 100 GHz, 4-channel, UXR-Series real-time Infiniium oscilloscope
UXR1102A	The UXR1102A is the 110 GHz, 2-channel, UXR-Series real-time Infiniium oscilloscope
UXR1104A	The UXR1104A is the 110 GHz, 4-channel, UXR-Series real-time infiniium oscilloscope

Specifications
Infiniium UXR‑Series Oscilloscopes
Model Overview
Model Number 4 Channels	Model Number 2 Channels	Max. Bandwidth	Input Connector	Max. Sample Rate	Memory Depth Standard	Memory Depth Maximum
UXR1104A	UXR1102A	110 GHz	1 mm	256 GSa/s	200 Mpts	2 Gpts
UXR1004A	UXR1002A	100 GHz	1 mm	256 GSa/s	200 Mpts	2 Gpts
UXR0804A	UXR0802A	80 GHz	1 mm	256 GSa/s	200 Mpts	2 Gpts
UXR0704AP	UXR0702AP	70 GHz	1 mm	256 GSa/s	200 Mpts	2 Gpts
UXR0704A	UXR0702A	70 GHz	1.85 mm	256 GSa/s	200 Mpts	2 Gpts
UXR0594AP	UXR0592AP	59 GHz	1 mm	256 GSa/s	200 Mpts	2 Gpts
UXR0594A	UXR0592A	59 GHz	1.85 mm	256 GSa/s	200 Mpts	2 Gpts
UXR0504A	UXR0502A	50 GHz	1.85 mm	256 GSa/s	200 Mpts	2 Gpts
UXR0404AP	UXR0402AP	40 GHz	1 mm	256 GSa/s	200 Mpts	2 Gpts
UXR0404A	UXR0402A	40 GHz	1.85 mm	256 GSa/s	200 Mpts	2 Gpts
N/A	UXR0051AP*	5 GHz	1 mm	256 GSa/s	200 Mpts	2 Gpts
UXR0254AP	UXR0252AP	25 GHz	1 mm	256 GSa/s	200 Mpts	2 Gpts
UXR0334A	N/A	33 GHz	3.5 mm	128 GSa/s	200 Mpts	2 Gpts
UXR0254A	N/A	25 GHz	3.5 mm	128 GSa/s	200 Mpts	2 Gpts
UXR0204A	N/A	20 GHz	3.5 mm	128 GSa/s	200 Mpts	2 Gpts
UXR0164A	N/A	16 GHz	3.5 mm	128 GSa/s	200 Mpts	2 Gpts
UXR0134A	N/A	13 GHz	3.5 mm	128 GSa/s	200 Mpts	2 Gpts
UXR0104A	N/A	10 GHz	3.5 mm	128 GSa/s	200 Mpts	2 Gpts

Note:

* : 1 Channel model with optional second channel hardware pre-installed. Upgradable to 2 channels through purchase of N2166A license key.

Specifications
Infiniium Series	S-Series	MXR-Series	V-Series	Z-Series
Available Bandwidths	500MHz 1GHz 2.5GHz 4GHz 6GHz 8GHz	500MHz 1GHz 2.5GHz 4GHz 6GHz	8GHz 13GHz 16GHz 20GHz 25GHz 33GHz	20GHz 25GHz 33GHz 50GHz 63GHz
Maximum Upgradeable Bandwidth	8GHz (2ch)	6GHz	33GHz	63GHz
Analog Channels	2 / 4	4 or 8 (upgradable)	2 / 4	2 / 4
Max. Sample Rate	20 GSa/s	16 GSa/s	80 GSa/s	160 GSa/s
Max. Memory	1 Gpts	400 Mpts/ch	2 Gpts	2 Gpts
Standard Memory	100 Mpts	200 Mpts	100 Mpts	100 Mpts
ADC Bits	8-bits	10-bits	8-bits	8-bits
Channel Inputs	50 Ω and 1 MΩ	50 Ω and 1 MΩ	50 Ω	50 Ω
Connector Type	Precision BNC	Precision BNC	3.5 mm	3.5 mm (33 GHz input) 1.85 mm (> 33 GHz input)
Connector Mate	BNC	BNC	SMA 2.92 mm	SMA 2.92 mm (33 GHz input) 2.4 mm (> 33 GHz input)
MSO Models	Yes	Yes	Yes²	No
Hardware Serial Trigger Option	No	No	Yes¹¯²	No
Supported InfiniiMax Probe Series	InfiniiMax II	InfiniiMax II	InfiniiMax III/III+ InfiniiMax II with N5442A adapter	InfiniiMax III/III+ InfiniiMax II with N5442A adapter

Notes:

Yes¹ : Trigger at a maximum 160-bit sequence or sixteen 8b/10b symbols. Works only on channel 1

Yes² : Either MSO or hardware serial trigger option can be added to the oscilloscope.
