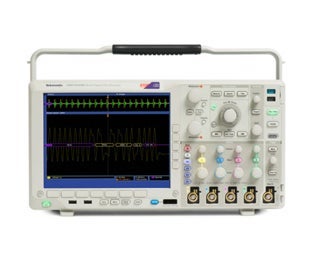

Tektronix MSO4104B

Key Specifications:

• 1 GHz, 500 MHz, 350 MHz, and 100 MHz bandwidth models
• 2 and 4 analog channel models
• Up to 5 GS/s sample rate on all channels
• Up to 20 M record length on all channels
• >340,000 wfm/s maximum waveform capture rate
• Standard passive voltage probes with 3.9 pF capacitive loading and
• 500 MHz or 1 GHz analog bandwidth
• Suite of advanced triggers

Key Features:

• Wave Inspector controls provide easy navigation and automated search of waveform data
• 42 automated measurements, and FFT analysis for simplified waveform analysis
• 16 digital channels (MSO series)
• Mixed signal design and analysis (MSO series)
• Automated triggering, decode, and search on parallel buses
• Per-channel threshold settings
• Multichannel setup and hold triggering
• MagniVu High-speed acquisition provides 60.6 ps fine timing resolution on digital channels
• Optional serial triggering and analysis - automated serial triggering, decode, and search options for I2C, SPI, USB, Ethernet, CAN, LIN, FlexRay, RS-232/422/485/UART, MIL-STD-1553, and I2S/LJ/RJ/TDM
• TekVPI probe interface supports active, differential, and current probes for automatic scaling and units
