Quick quote: Keysight Technologies EXR108A

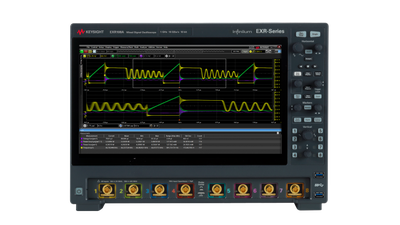

Keysight Technologies EXR108A
Available to Buy Online
View Configurations
Model
EXR108AProduct Family
Oscilloscopes & Logic AnalyzersManufacturer
Keysight TechnologiesConfigured models contain the following attributes:
Oscilloscopes & Logic AnalyzersOscilloscopes 1 - 3GHzLet us help you with your exact configuration
Please use 'Get Quick Quote' or ‘Configure Unit’ and we’ll contact you and quote for your exact need.
You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.
Key Specs
Please refer to the Resources section for Datasheets or see the Product Overview.
If you would like to know more, please get in touch and one of our team will be happy to help.
Product Overview
The Infiniium EXR-Series combines the signal integrity and capabilities of our high-performance UXR-Series scope with the instrument integration and speed of our InfiniiVision scopes. The EXR is 7 instruments in 1: a mixed signal oscilloscope, protocol analyzer, logic analyzer, waveform generator, frequency response analyzer, counter, and digital voltmeter. Keysight’s Infiniium EXR and MXR-Series oscilloscopes are the only scopes in the market that support up to 6 GHz of bandwidth on all eight channels simultaneously.
The Infiniium EXR-Series. With eight models ranging in performance from 500 MHz to 6 GHz, 4 or 8 analog channels, and dozens of hardware and software options, your Infiniium EXRSeries is powerful, easy to own, and intuitive to use.
| Key Features |
| Bandwidths of up to 500 MHz to 6 GHz on all 4 or 8 analog channels |
| Powered by the same Keysight-designed ASICs used in the Infiniium UXR-Series |
| Capabilities extended with 7-in-1 instrument integration: oscilloscope, logic and protocol analyzers, DVM, counter, bode plotter, waveform generator |
| Completely upgradeable, including channel upgrades |
| Benefits | |
| World-Class Signal Integrity | Each model incorporates a 10-bit ADC with a sample rate of 16 GSa/s available on all channels simultaneously. A high-resolution ADC’s usefulness is dependent on the low-noise front end that supports the additional quantization levels. Our low noise front end includes custom ICs, like the 130 nm BiCMOS IC that incorporates user-selectable analog filters and bandwidth upgrades via a software license. This gives you: • Four times more vertical resolution than 8-bit oscilloscopes • Up to 16 bits with high-res mode • As low as 43 µV of noise, 9.0 bits system ENOB with hardware filtering |
| History Mode and Segmented Memory | The Infiniium EXR-Series comes standard with two useful tools that allow you to look forward and backward in time. With history mode, simply stop the oscilloscope at any time to review up to 1,024 previous trigger events. With segmented memory, you can capture > 100,000 events post-trigger for analysis, with no limit between events. If your design has an elusive event that only seems to happen when you’re not around, these tools arm the oscilloscope to look for it, then let you review what gets captured at your leisure. And with a full HD screen of 1920x1080 pixels, and support for a second, independent external monitor, that data can be organized and displayed however is best for you. |
| Completely Upgradeable | Assume that today’s project requires 4 channels of 1 GHz analysis bandwidth. What if your next project needs 8 channels and 6 GHz of analysis bandwidth? And a waveform generator? This is no problem with the Infiniium EXR-Series, which is fully upgradeable – no exceptions. The Infiniium EXR gives you the flexibility to use capital or operating expense budgets more intelligently when making your purchase now and in the future. Keysight is the world’s only oscilloscope manufacturer to offer an upgrade from 4 to 8 analog channels, and it is always more affordable than purchasing a new 8 channel oscilloscope. Along with this, you can upgrade bandwidth, memory, integrated equipment, applications and more after purchase, with just a license key. No matter how your needs change, the Infiniium EXR-Series protects your investment by growing with your lab’s needs of tomorrow. |
| Specifications | |
| Infiniium EXR-Series | |
| Feature | Parameter |
| Analog Channels | 4 or 8, upgradeable |
| Bandwidth | 500 MHz to 6 GHz, upgradeable |
| Sample Rate | 16 GSa/s |
| Memory | 100 Mpts, upgradeable to 400 Mpts or 1.6 Gpts flexible memory ¹ |
| Resolution | 10 bits, up to 16 with high resolution |
| ENOB | As high as 9.0 |
| Digital Logic Channels | 16, dedicated input, upgradeable |
| Update Rate | > 200,000 wfm/s |
| Eye Diagram Speed | > 750,000 UI/s |
| Screen Display | 15.6” touch, full HD, dual screen support |
| Specifications | ||||||
| Infiniium EXR-Series | ||||||
| Model Overview | ||||||
| Model | EXR058A | EXR108A | EXR208A | EXR258A | EXR408A | EXR608A |
| Bandwidth | 500 MHz | 1 GHz | 2 GHz | 2.5 GHz | 4 GHz | 6 GHz |
| Input Channels | 8 channels analog BNC (f) 16 channels digital (optional) | 8 channels analog BNC (f) 16 channels digital (optional) | 8 channels analog BNC (f) 16 channels digital (optional) | 8 channels analog BNC (f) 16 channels digital (optional) | 8 channels analog BNC (f) 16 channels digital (optional) | 8 channels analog BNC (f) 16 channels digital (optional) |
| Memory Depth 1 | Standard: 100 Mpts/channel, all channels Optional: 400 Mpts/channel, all channels (400 Mpts/ch option) 1.6 Gpts shared between channels 1-4, 5-8 (1.6 Gpts Combined Flexible Memory option) 3 | Standard: 100 Mpts/channel, all channels Optional: 400 Mpts/channel, all channels (400 Mpts/ch option) 1.6 Gpts shared between channels 1-4, 5-8 (1.6 Gpts Combined Flexible Memory option) 3 | Standard: 100 Mpts/channel, all channels Optional: 400 Mpts/channel, all channels (400 Mpts/ch option) 1.6 Gpts shared between channels 1-4, 5-8 (1.6 Gpts Combined Flexible Memory option) 3 | Standard: 100 Mpts/channel, all channels Optional: 400 Mpts/channel, all channels (400 Mpts/ch option) 1.6 Gpts shared between channels 1-4, 5-8 (1.6 Gpts Combined Flexible Memory option) 3 | Standard: 100 Mpts/channel, all channels Optional: 400 Mpts/channel, all channels (400 Mpts/ch option) 1.6 Gpts shared between channels 1-4, 5-8 (1.6 Gpts Combined Flexible Memory option) 3 | Standard: 100 Mpts/channel, all channels Optional: 400 Mpts/channel, all channels (400 Mpts/ch option) 1.6 Gpts shared between channels 1-4, 5-8 (1.6 Gpts Combined Flexible Memory option) 3 |
| Max. Sample Rate | 16 GSa/s | 16 GSa/s | 16 GSa/s | 16 GSa/s | 16 GSa/s | 16 GSa/s |
| Typical Rise/Fall Time 2 | 860 ps (10-90) 620 ps (20-80) | 430 ps (10-90) 310 ps( 20-80) | 215 ps (10-90) 155 ps( 20-80) | 172 ps (10-90) 124 ps (20-80) | 107.5 ps (10-90) 77.5 ps (20-80) | 71.7 ps (10-90) 51.7 ps (20-80) |
Note:
1 Denotes warranted specifications, all others are typical. Specifications are valid after a 30-minute warm-up period and ± 5 °C from firmware calibration temperature. Input impedance is valid when V/div scaling is adjusted to show all waveform vertical values within the oscilloscope display
2 10/90 calculation based on Tr = 0.43/BW. 20/80 calculation based on Tr = 0.31/BW.
3 Combined flexible memory shares 1.6 Gpts of memory between channels 1 through 4. This means you can have 1 channel with 1.6 Gpts, two channels with 800 Mpts, or three channels with 533 Mpts memory (on top of 400 Mpts on all channels). Double those channel counts for 8 channel models, as the same logic applies to channels 5-8.
| Specifications | |
| Infiniium EXR-Series | |
| Model Overview | |
| Model | Description |
| EXR058A | 8 Channel; 500MHz |
| EXR108A | 8 Channel; 1 GHz |
| EXR208A | 8 Channel; 2 GHz |
| EXR258A | 8 Channel; 2.5 GHz |
| EXR408A | 8 Channel; 4 GHz |
| EXR608A | 8 Channel; 6 GHz |
| Specifications | |
| Infiniium EXR-Series | |
| Model Overview | |
| Model | Description |
| EXR054A | 4 Channel; 500MHz |
| EXR104A | 4 Channel; 1 GHz |
| EXR204A | 4 Channel; 2 GHz |
| EXR254A | 4 Channel; 2.5 GHz |
| EXR404A | 4 Channel; 4 GHz |
| EXR604A | 4 Channel; 6 GHz |
| Specifications | |
| Infiniium EXR-Series | |
| Performance Upgrades | |
| Model | Description |
| EXR2MEM-001 | Memory Upgrade, 200 Mpts/ch |
| EXR2MEM-002 | Memory Upgrade, 400 Mpts/ch |
| EXR2MEM-004 | Memory Upgrade, 1.6 Gpts Combined Flexible Memory |
| EXR2SSD-01T | Upgrade to 1 TB Removable SSD |
| EXR000-1A7 | ISO 17025 Calibration (Not Accredited) |
| EXR000-AMG | ISO 17025 Calibration (Accredited) |
| Additional Equipment | |
| EXR2RACK | Rackmount Kit, 8U |
| EXR2SSD | Additional Removable SSDs, 500 GB or 1 TB |
| 3F2002-1910C | Hard Shell Transit Case |
| 54855-676041 | BNC(m) to SMA(f) Adapters, DC-10 GHz |
| 4865B | GPIB Adapter |
Note:
1 Precision adapter designed to extend the oscilloscope mating plane to sma connector. The measured insertion loss of this adaptor and the front panel connector is around -.05db at 13GHz. This loss is included in the performance specification of the oscilloscope.
