High-Definition Oscilloscope: 2 GHz, 4 Analog Plus 16 Digital Channels

Model

MSOS204A

Product Family

Oscilloscopes & Logic Analyzers

Manufacturer

Keysight Technologies

Configured models contain the following attributes:

Oscilloscopes & Logic AnalyzersOscilloscopes 1 - 3GHz20 GS/s1GHz <= 10GHz

Configurations

Key Specs

Product Overview

Resources

Let us help you with your exact configuration

Please use 'Get Quick Quote' or ‘Configure Unit’ and we’ll contact you and quote for your exact need.

Configure Unit

You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.

Key Specs

Indicates attributes available at part level. See Configurations tab for part detail.

Attribute	Value
Maximum Sample/Data Rate	20 GS/s
High Frequency (range)	1GHz <= 10GHz

Product Overview

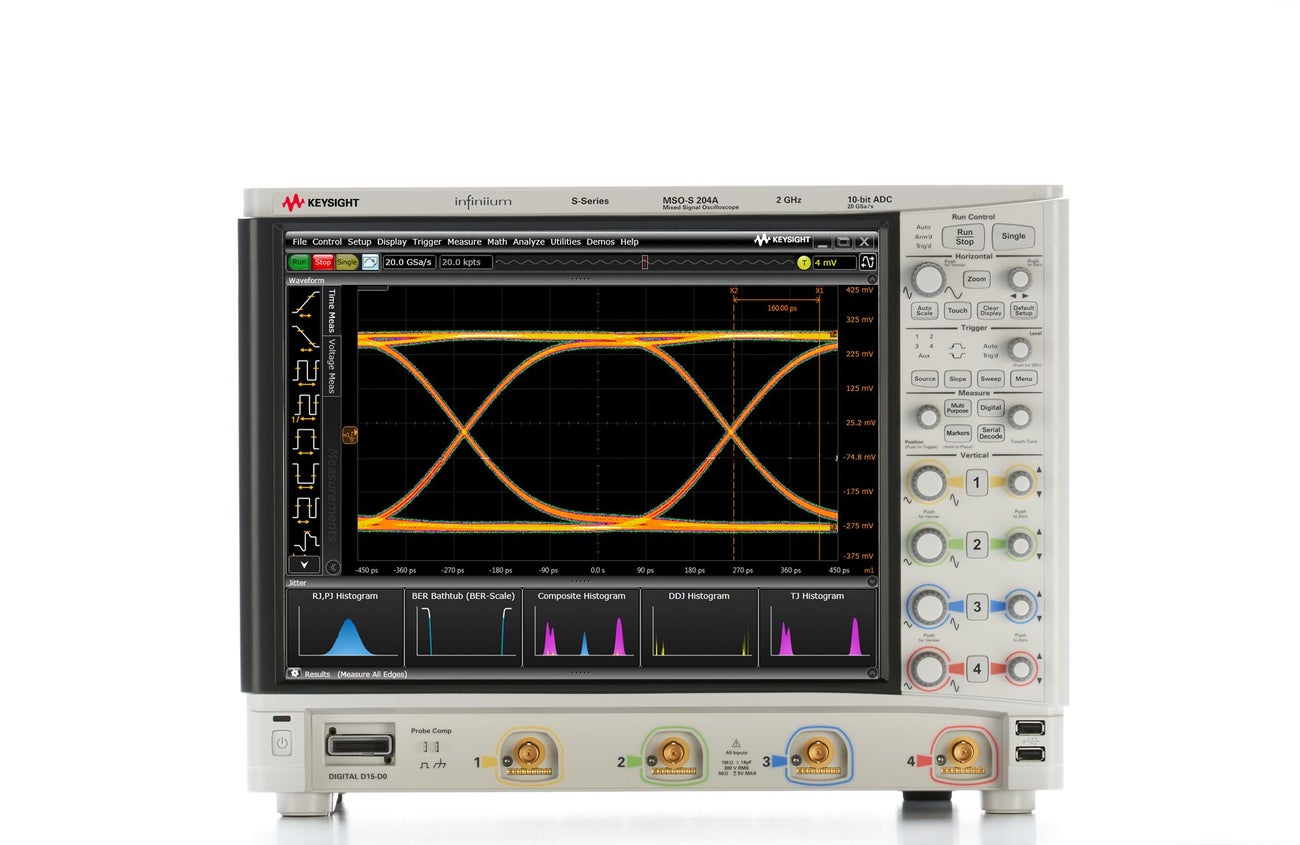

Infiniium S-Series oscilloscopes incorporate innovative technology designed to deliver superior measurements. Cutting edge hardware and a broad suite of software work together to give you unmatched measurement capability. Our 10- bit ADC and low-noise front-end work together to provide up to 8 GHz of performance with fantastic signal integrity. Improve noise performance even more using high resolution mode, which can achieve up to 16 bits of vertical resolution. A vast selection of high-speed digital debug tools gives you the best troubleshooting and design tools available on the market. We put all of this in an advanced frame with a solid-state drive for fast boot-up, 15” capacitive touch display for ease of use, and a high-powered motherboard for fast processing. It’s all compatible with a myriad of Keysight probes and applications.

Key Features:

2 GHz bandwidths with flat frequency response for high signal fidelity
20 GSa/s maximum sample rate
10-bit analog-to-digital converter (ADC) for high vertical resolution
Low-noise front end with system ENOB of 7.4
15” capacitive touch screen with multi-touch support
Intel i5 motherboard with 8G RAM for fast processing
Standard solid state drive for fast boot and high reliability
USB 3.0 and Ethernet with offload speeds up to 200 MB/s
Upgrade to a higher bandwidth
Capture long records with 50 Mpts/channel standard memory depth
Choose from a wide range of protocol, compliance, and analysis options
Supports a wide variety of voltage, current, differential, single-ended, active, and passive probes

Specifications
Bandwidth	2 GHz
Bandwidth Upgrades	n/a
Max Memory Depth	800 Mpts (2 channels), 400 Mpts (4 channels)
Max Sample Rate	20 GSa/s (2 channels), 10 GSa/s (4 channels)
Display Size	n/a
ADC Bits	10 bits
Noise Floor	n/a
Effective Number of Bits (ENOB)	n/a
Operating System	n/a
Maximum Vertical Resolution	16 bits

S - Series Specifications:

Model	DSOS054A MSOS054A	DSOS104A MSOS104A	DSOS204A MSOS204A	DSOS254A MSOS254A	DSOS404A MSOS404A	DSOS604A MSOS604A	DSOS804A MSOS804A
Bandwidth (BW)	500 MHz	1 GHz	2 GHz	2.5 GHz	4 GHz	6 GHz (4)	8 GHz (4)
10/90% Rise Time (2)	860 ps	430 ps	215 ps	172 ps	107.5 ps	71.7 ps	53.8 ps
Full BW ENOB (3)	8.1	7.8	7.5	7.4	7.2	6.8	6.4
Full BW Noise Floor (5)	74 uV	90 uV	120 Uv	130 uV	153 uV	195 uV	260 uV
Sample Rate	20 GSa/s on 2 channels 10 GSa/s on 4 channels	20 GSa/s on 2 channels 10 GSa/s on 4 channels	20 GSa/s on 2 channels 10 GSa/s on 4 channels	20 GSa/s on 2 channels 10 GSa/s on 4 channels	20 GSa/s on 2 channels 10 GSa/s on 4 channels	20 GSa/s on 2 channels 10 GSa/s on 4 channels	20 GSa/s on 2 channels 10 GSa/s on 4 channels
Standard Memory	100 Mpts/ch upgradeable up to 400 Mpts/ch	100 Mpts/ch upgradeable up to 400 Mpts/ch	100 Mpts/ch upgradeable up to 400 Mpts/ch	100 Mpts/ch upgradeable up to 400 Mpts/ch	100 Mpts/ch upgradeable up to 400 Mpts/ch	100 Mpts/ch upgradeable up to 400 Mpts/ch	100 Mpts/ch upgradeable up to 400 Mpts/ch
Vertical Resolution	10 bits at full bandwidth up to 16 bits in high resolution	10 bits at full bandwidth up to 16 bits in high resolution	10 bits at full bandwidth up to 16 bits in high resolution	10 bits at full bandwidth up to 16 bits in high resolution	10 bits at full bandwidth up to 16 bits in high resolution	10 bits at full bandwidth up to 16 bits in high resolution	10 bits at full bandwidth up to 16 bits in high resolution
RF Noise Density (6)	-160 dBm/Hz	-160 dBm/Hz	-160 dBm/Hz	-160 dBm/Hz	-160 dBm/Hz	-160 dBm/Hz	-160 dBm/Hz
SFDR (7)	72 dB	72 dB	72 dB	72 dB	72 dB	72 dB	72 dB
Display Size	15” XGA Capacitive Touchscreen VGA Display Port for External Monitors	15” XGA Capacitive Touchscreen VGA Display Port for External Monitors	15” XGA Capacitive Touchscreen VGA Display Port for External Monitors	15” XGA Capacitive Touchscreen VGA Display Port for External Monitors	15” XGA Capacitive Touchscreen VGA Display Port for External Monitors	15” XGA Capacitive Touchscreen VGA Display Port for External Monitors	15” XGA Capacitive Touchscreen VGA Display Port for External Monitors

1. DSO and MSO models have four analog channels. MSO models include 16 digital channels. 2. Calculation passed on 0.43/BW. 3. Measured at full bandwidth without high resolution mode enabled. Typical specification; not warranted. 4. 6 GHz and 8 GHz only possible when two channels are active. Four channel bandwidth is 4 GHz. 5. Measured at 2 mV/div at full oscilloscope bandwidth and sample rate, no high resolution. 6. Tested at 1 mV/div, -38 dBm, 1.0001 GHz CF, 500 kHz span, 3 kHz RBW. 7. Tested with 1 GHz, 0dBm signal at input, FFT with 3 GHz CF, 5 GHz span, 100 kHz RBW.
