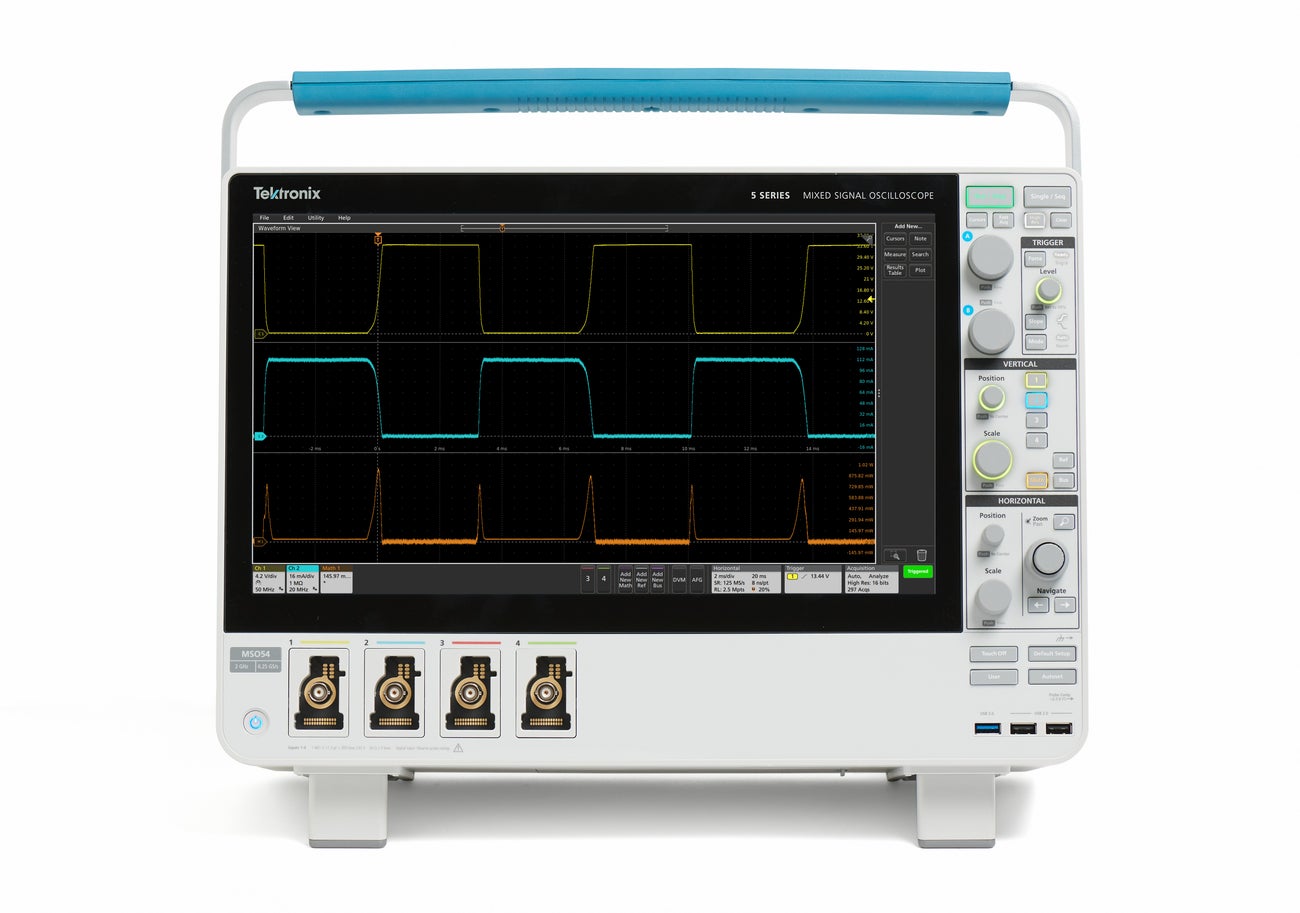

The 5 Series MSO offers better visibility into complex systems by offering four, six and eight channel models with a large 15.6-inch high-definition (1,920 x 1,080) display. Many applications, such as embedded systems, three-phase power electronics, automotive electronics, power supply design, and DC-to-DC power converters, require the observation of more than four analog signals to verify and characterize device performance, and to debug challenging system issues.
Most engineers can recall situations in which they were debugging a particularly difficult problem and wanted greater system visibility and context, but the scope they were using was limited to two or four analog channels. Using a second scope involves significant effort to align trigger points, difficulty in determining timing relationships across the two displays, and documentation challenges.
And while you might assume that a six and eight channel scope would cost 50% or 100% more than a four-channel scope, you'll be pleasantly surprised to find that six channel models are only ~25% more than four channel models and eight channel models are only ~67% more than four channel models. The additional analog channels can pay for themselves quickly by enabling you to keep current and future projects on schedule.
Benefits | |
Performance | Bandwidth up to 2 GHz Record Length up to 500 Mpoints |
Digital Inputs | TLP058 Logic Probes each provide 8 digital channels |
Operating System | Add Windows OS to run PC software on the scope |
Signal Generation | Add Windows OS to run PC software on the scope |
Advanced Analysis | Serial Decode/Trigger support for key buses like I2C, SPI, USB 2.0, Ethernet, CAN, LIN, many others Automated compliance testing for Ethernet, USB 2.0, and Automotive Ethernet Advanced Jitter Analysis Automated Power Measurement and Analysis Power Rail Measurements Inverters, Motors and Drives Analysis |
Specifications | |||
5 Series MSO Mixed Signal Oscilloscope | |||
Series Overview | |||
Model | MSO58 | MSO56 | MSO54 |
FlexChannel Inputs | 8 | 6 | 4 |
Maximum Analog Channels | 8 | 6 | 4 |
Maximum Digital Channels (with optional logic probes) | 64 | 48 | 32 |
Bandwidth (calculated rise time) | 350 MHz (1.15 ns) 500 MHz (800 ps) 1 GHz (400 ps) 2 GHz (225 ps) | 350 MHz (1.15 ns) 500 MHz (800 ps) 1 GHz (400 ps) 2 GHz (225 ps) | 350 MHz (1.15 ns) 500 MHz (800 ps) 1 GHz (400 ps) 2 GHz (225 ps) |
DC Gain Accuracy | < 2 GHz Models: 50 Ω: ±1.0%, (±2.0% at ≤ 1 mV/div) ±0.5% of full scale, (±1.0% of full scale at 1 mV/Div and 500 μV/Div Settings) 1 MΩ: ±1.0%, (±2.0% at ≤ 1 mV/div) ±0.5% of full scale, (±1.0% of full scale at 1 mV/Div and 500 μV/Div Settings) 2 GHz Models: 50 Ω: ±1.2%, (±2.0% at ≤ 1 mV/div) ±0.6% of full scale, (±1.0% of full scale at 1 mV/Div and 500 μV/Div Settings) 1 MΩ: ±1.0%, (±2.0% at ≤ 1 mV/div) ±0.5% of full scale, (±1.0% of full scale at 1 mV/Div and 500 μV/Div Settings) | < 2 GHz Models: 50 Ω: ±1.0%, (±2.0% at ≤ 1 mV/div) ±0.5% of full scale, (±1.0% of full scale at 1 mV/Div and 500 μV/Div Settings) 1 MΩ: ±1.0%, (±2.0% at ≤ 1 mV/div) ±0.5% of full scale, (±1.0% of full scale at 1 mV/Div and 500 μV/Div Settings) 2 GHz Models: 50 Ω: ±1.2%, (±2.0% at ≤ 1 mV/div) ±0.6% of full scale, (±1.0% of full scale at 1 mV/Div and 500 μV/Div Settings) 1 MΩ: ±1.0%, (±2.0% at ≤ 1 mV/div) ±0.5% of full scale, (±1.0% of full scale at 1 mV/Div and 500 μV/Div Settings) | < 2 GHz Models: 50 Ω: ±1.0%, (±2.0% at ≤ 1 mV/div) ±0.5% of full scale, (±1.0% of full scale at 1 mV/Div and 500 μV/Div Settings) 1 MΩ: ±1.0%, (±2.0% at ≤ 1 mV/div) ±0.5% of full scale, (±1.0% of full scale at 1 mV/Div and 500 μV/Div Settings) 2 GHz Models: 50 Ω: ±1.2%, (±2.0% at ≤ 1 mV/div) ±0.6% of full scale, (±1.0% of full scale at 1 mV/Div and 500 μV/Div Settings) 1 MΩ: ±1.0%, (±2.0% at ≤ 1 mV/div) ±0.5% of full scale, (±1.0% of full scale at 1 mV/Div and 500 μV/Div Settings) |
ADC Resolution | 12 bits | 12 bits | 12 bits |
Vertical Resolution | 8 bits @ 6.25 GS/s 12 bits @ 3.125 GS/s 13 bits @ 1.25 GS/s (High Res) 14 bits @ 625 MS/s (High Res) 15 bits @ 312.5 MS/s (High Res) 16 bits @ ≤125 MS/s (High Res) | 8 bits @ 6.25 GS/s 12 bits @ 3.125 GS/s 13 bits @ 1.25 GS/s (High Res) 14 bits @ 625 MS/s (High Res) 15 bits @ 312.5 MS/s (High Res) 16 bits @ ≤125 MS/s (High Res) | 8 bits @ 6.25 GS/s 12 bits @ 3.125 GS/s 13 bits @ 1.25 GS/s (High Res) 14 bits @ 625 MS/s (High Res) 15 bits @ 312.5 MS/s (High Res) 16 bits @ ≤125 MS/s (High Res) |
Sample Rate | 6.25 GS/s on all analog / digital channels (160 ps resolution) | 6.25 GS/s on all analog / digital channels (160 ps resolution) | 6.25 GS/s on all analog / digital channels (160 ps resolution) |
Record Length (std.) | 62.5 Mpoints on all analog / digital channels | 62.5 Mpoints on all analog / digital channels | 62.5 Mpoints on all analog / digital channels |
Record Length (opt.) | 125, 250, or 500 Mpoints on all analog / digital channels | 125, 250, or 500 Mpoints on all analog / digital channels | 125, 250, or 500 Mpoints on all analog / digital channels |
Waveform Capture Rate | >500,000 wfms/s | >500,000 wfms/s | >500,000 wfms/s |
Arbitrary/Function Generator (opt.) | 13 predefined waveform types with up to 50 MHz output | 13 predefined waveform types with up to 50 MHz output | 13 predefined waveform types with up to 50 MHz output |
DVM | 4-digit DVM (free with product registration) | 4-digit DVM (free with product registration) | 4-digit DVM (free with product registration) |
Trigger Frequency Counter | 8-digit frequency counter (free with product registration) | 8-digit frequency counter (free with product registration) | 8-digit frequency counter (free with product registration) |
Specifications | ||||||
5 Series MSO Mixed Signal Oscilloscope | ||||||
Model Overview | ||||||
Model | Analog Bandwidth | Sample Rate | Record Length | Analog Channels | Digital Channels | Function Generator Output |
MSO54 | 350 MHz - 2 GHz | 6.25 GS/s | 62.5 M - 500 M | 4 | Up to 32 (optional) | 1 (optional) |
MSO56 | 350 MHz - 2 GHz | 6.25 GS/s | 62.5 M - 500 M | 6 | Up to 48 (optional) | 1 (optional) |
MSO58 | 350 MHz - 2 GHz | 6.25 GS/s | 62.5 M - 500 M | 8 | Up to 64 (optional) | 1 (optional) |
Specifications | |
5 Series MSO Mixed Signal Oscilloscope | |
Model Overview | |
Model | Description |
MSO54 | 4 FlexChannels |
MSO56 | 6 FlexChannels |
MSO58 | 8 FlexChannels |
Included Accessories | |
One passive analog probe per FlexChannel: 350 MHz or 500 MHz bandwidth models: TPP0500B 500 MHz probes 1 GHz or 2 GHz bandwidth models: TPP1000 1 GHz probes | |
Installation and safety manual (translated in English, Japanese, Simplified Chinese ) | |
Embedded Help | |
Front cover with integrated accessory pouch | |
Mouse | |
Power Cord | |
Calibration certificate documenting traceability to National Metrology Institute(s) and ISO9001/ISO17025 quality system registration | |
Bandwidth Option | |
5-BW-350 | 350 MHz |
5-BW-500 | 500 MHz |
5-BW-1000 | 1 GHz |
5-BW-2000 | 2 GHz |
