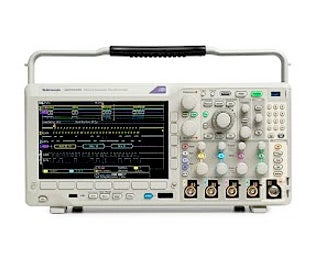

Mixed Domain Oscilloscope, 4-Channel, 350 MHz

Model

MDO3034

Product Family

Oscilloscopes & Logic Analyzers

Manufacturer

Tektronix

Configured models contain the following attributes:

Oscilloscopes & Logic AnalyzersOscilloscopes < 1GHz42.5 GS/s100MHz <= 1GHz

Configurations

Key Specs

Product Overview

Resources

Let us help you with your exact configuration

Please use 'Get Quick Quote' or ‘Configure Unit’ and we’ll contact you and quote for your exact need.

Configure Unit

You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.

Key Specs

Indicates attributes available at part level. See Configurations tab for part detail.

Attribute	Value
Channel/Port Count	4
Maximum Sample/Data Rate	2.5 GS/s
High Frequency (range)	100MHz <= 1GHz

Product Overview

The MDO3000 Mixed Domain Oscilloscope features up to six integrated instruments, including options like a spectrum analyzer, function generator and more, giving you the ability to capture analog, digital and RF signals with one scope.

Key Features:

4 analog channels
350 MHz bandwidth models
Bandwidth is upgradable (up to 1 GHz)
Up to 5 GS/s sample rate
10 M record length on all channels
>280,000 wfm/s maximum waveform capture rate
Standard passive voltage probes with 3.9 pF capacitive loading and 1 GHz, 500 MHz, or 250 MHz analog bandwidth

Model Specifications
Model Overview	MDO3012	MDO3014	MDO3022	MDO3024	MDO3032	MDO3034	MDO3052	MDO3054
Analog Channels	2	4	2	4	2	4	2	4
Analog Channel bandwidth	100 MHz	100 MHz	200 MHz	200 MHz	350 MHz	350 MHz	500 MHz	500 MHz
Rise Time (typical, calculated) (10 mV/div setting with 50 Ω input termination)	4 ns	4 ns	2 ns	2 ns	1.14 ns	1.14 ns	800 ps	800 ps
Sample Rate (1 ch)	2.5 GS/s	2.5 GS/s	2.5 GS/s	2.5 GS/s	2.5 GS/s	2.5 GS/s	2.5 GS/s	2.5 GS/s
Sample Rate (2 ch)	2.5 GS/s	2.5 GS/s	2.5 GS/s	2.5 GS/s	2.5 GS/s	2.5 GS/s	2.5 GS/s	2.5 GS/s
Sample Rate (4 ch)	-	2.5 GS/s	-	2.5 GS/s	-	2.5 GS/s	-	2.5 GS/s
Record Length (1 ch)	10 M	10 M	10 M	10 M	10 M	10 M	10 M	10 M
Record Length (2 ch)	10 M	10 M	10 M	10 M	10 M	10 M	10 M	10 M
Record Length (4 ch)	-	10 M	-	10 M	-	10 M	-	10 M
Digital Channels with MDO3MSO Option	16	16	16	16	16	16	16	16
Arbitrary Function Generator Outputs with MDO3AFG Option	1	1	1	1	1	1	1	1
Spectrum Analyzer Channels	1	1	1	1	1	1	1	1
Standard Spectrum Analyzer Frequency Range	9 kHz - 100 MHz	9 kHz - 100 MHz	9 kHz - 200 MHz	9 kHz - 200 MHz	9 kHz - 350 MHz	9 kHz - 350 MHz	9 kHz - 500 MHz	9 kHz - 500 MHz
Optional Spectrum Analyzer Frequency Range with MDO3SA Option	9 kHz - 3 GHz	9 kHz - 3 GHz	9 kHz - 3 GHz	9 kHz - 3 GHz	9 kHz - 3 GHz	9 kHz - 3 GHz	9 kHz - 3 GHz	9 kHz - 3 GHz
