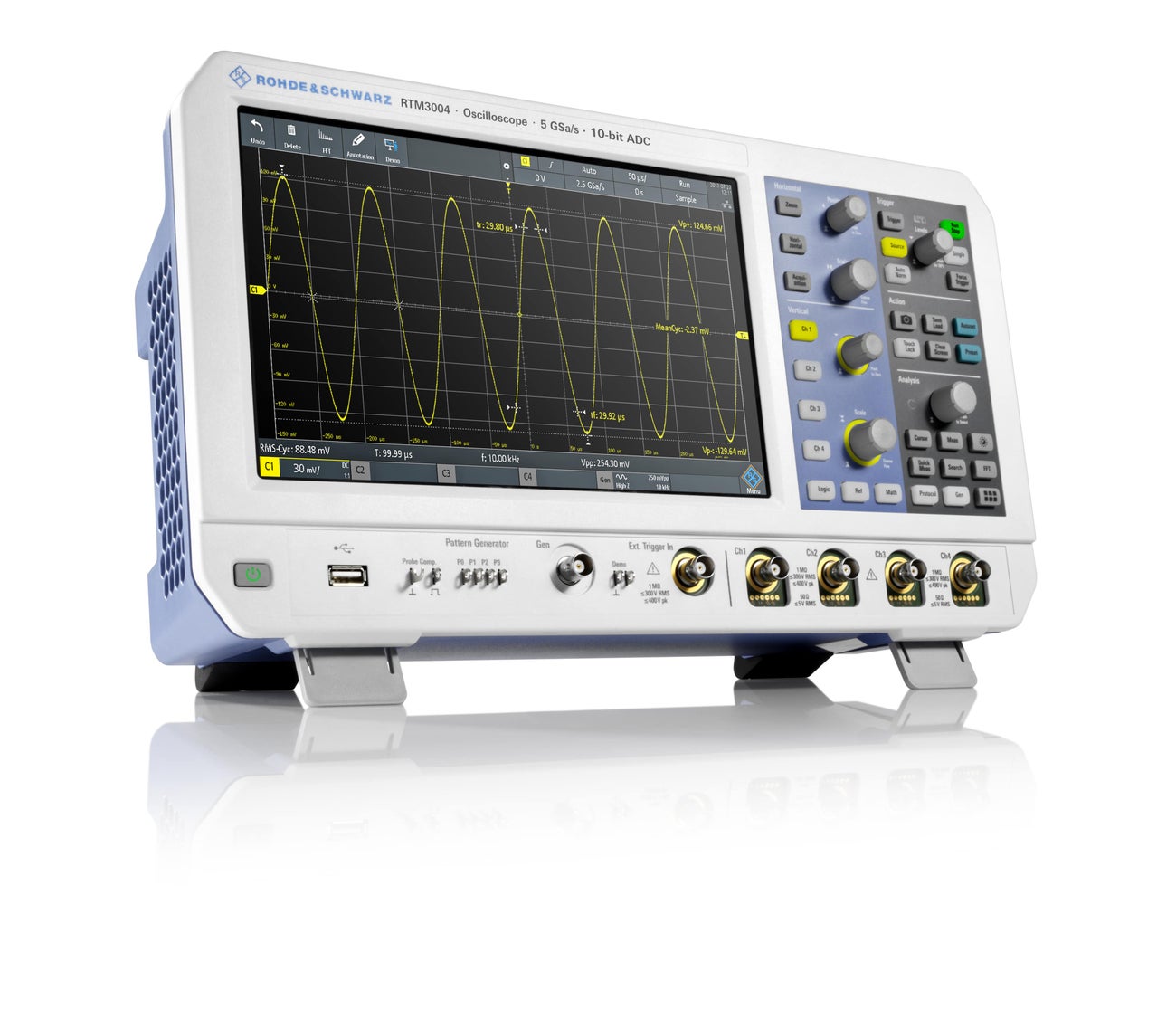

Rohde & Schwarz RTM3004 (1335.8794.04)

Configure Unit

Available to Buy Online

View Configurations

Digital Oscilloscope, 4-Channel, 100 MHz

Model

RTM3004 (1335.8794.04)

Product Family

Oscilloscopes & Logic Analyzers

Manufacturer

Rohde & Schwarz

Configured models contain the following attributes:

Oscilloscopes & Logic AnalyzersOscilloscopes < 1GHz10MHz <= 100MHz100MHz <= 1GHz

Configurations

Key Specs

Product Overview

Resources

Let us help you with your exact configuration

Please use 'Get Quick Quote' or ‘Configure Unit’ and we’ll contact you and quote for your exact need.

Configure Unit

You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.

Key Specs

Indicates attributes available at part level. See Configurations tab for part detail.

Attribute	Value
High Frequency (range)	10MHz <= 100MHz
High Frequency (range)	100MHz <= 1GHz

Product Overview

The RTM3000 features a customized Rohde & Schwarz designed 10-bit A/D converter that delivers a four-fold improvement over conventional 8-bit A/D converters. The increased resolution results in sharper waveforms with more signal details that would otherwise be missed. One example is the characterization of switched-mode power supplies. The voltages across the switching device must be determined during on/off times within the same acquisition.

Key Features

Bandwidth: 100 MHz to 1GHz

Sample rate: up to 5 Gsample/s

Memory depth: up to 80 Msample

ADC resolution: 10-bit

Display: 10.1’’ capacitive touchscreen

Specifications
RTM3000 Oscilloscopes
Ordering Information
Product Name	Order Number	Bandwidth	Channels	Sample Rate	Max. Memory Depth	Optional MSO
RTM3002	1335.8794.02	100 MHz	2	5 Gsample/s	80 Msample	16 digital channels
RTM3004	1335.8794.04	100 MHz	4	5 Gsample/s	80 Msample	16 digital channels
RTM3002 and RTM-B222	1335.8794P22	200 MHz	2	5 Gsample/s	80 Msample	16 digital channels
RTM3004 and RTM-B242	1335.8794P24	200 MHz	4	5 Gsample/s	80 Msample	16 digital channels
RTM3002 and RTM-B223	1335.8794P32	350 MHz	2	5 Gsample/s	80 Msample	16 digital channels
RTM3004 and RTM-B243	1335.8794P34	350 MHz	4	5 Gsample/s	80 Msample	16 digital channels
RTM3002 and RTM-B225	1335.8794P52	500 MHz	2	5 Gsample/s	80 Msample	16 digital channels
RTM3004 and RTM-B245	1335.8794P54	500 MHz	4	5 Gsample/s	80 Msample	16 digital channels
RTM3002 and RTM-B2210	1335.8794P62	1 GHz	2	5 Gsample/s	80 Msample	16 digital channels
RTM3004 and RTM-B2410	1335.8794.P64	1 GHz	4	5 Gsample/s	80 Msample	16 digital channels

Specifications
RTM3000 Oscilloscopes
Ordering Information
Model	Order Number	Description
R&S RTM3000 Base Model
RTM3002	1335.8794.02	Oscilloscope, 100 MHz, 2 channels
RTM3004	1335.8794.04	Oscilloscope, 100 MHz, 4 channels
Bandwidth Upgrade
RTM-B222	1335.9003.02	Upgrade of R&S®RTM3002 oscilloscopes to 200 MHz bandwidth
RTM-B223	1335.9010.02	Upgrade of R&S®RTM3002 oscilloscopes to 350 MHz bandwidth
RTM-B225	1335.9026.02	Upgrade of R&S®RTM3002 oscilloscopes to 500 MHz bandwidth
RTM-B2210	1335.9032.02	Upgrade of R&S®RTM3002 oscilloscopes to 1 GHz bandwidth
RTM-B242	1335.9049.02	Upgrade of R&S®RTM3004 oscilloscopes to 200 MHz bandwidth
RTM-B243	1335.9055.02	Upgrade of R&S®RTM3004 oscilloscopes to 350 MHz bandwidth
RTM-B245	1335.9061.02	Upgrade of R&S®RTM3004 oscilloscopes to 500 MHz bandwidth
RTM-B2410	1335.9078.02	Upgrade of R&S®RTM3004 oscilloscopes to 1 GHz bandwidth
