Product Overview

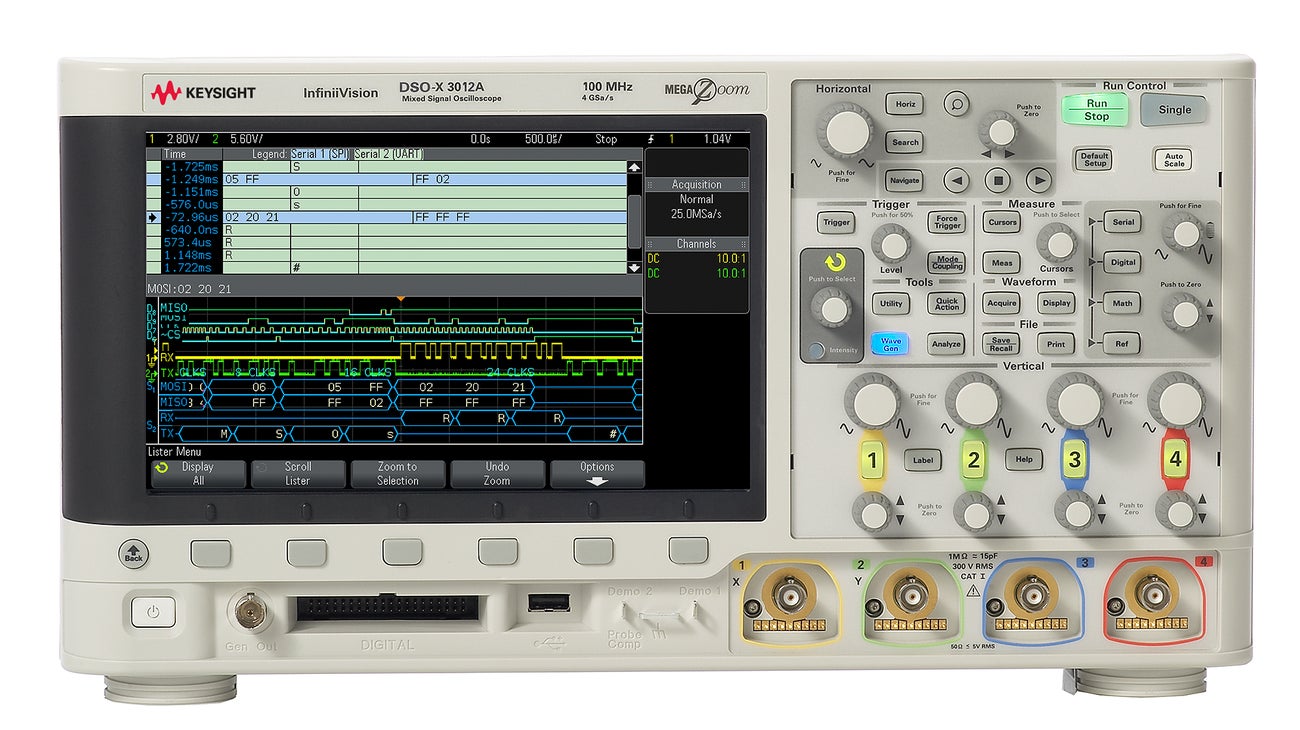

The InfiniiVision 3000 X-Series redefined oscilloscopes. It sees the most signal detail, does more functions than any other oscilloscope, and gives you maximum investment protection.
The 3000 X-Series’s innovation starts with the industry’s only 6-instruments in-1 integration. The industry-leading one million waveforms per second update rate is 20 times faster than the competition to display the most signal detail. The 3000 X-Series provides maximum investment protection with fully-upgradable 6-instruments-in-1; even bandwidth is upgradable.
100 MHz to 1GHz digital storage and mixed signal economy oscilloscopes with the largest screen, the deepest memory, the only built-in function generator and the fastest waveform update rates in its class, plus the ability to add serial bus.
| Key Features |
| 100 MHz to 1 GHz, DSO and MSO models |
| View time-correlated digital content with 16 digital channels (MSO) |
| Modulate signals within the scope with WaveGen, built-in 20 MHz function generator (optional) |
| Quickly characterize signals with the built-in 3-digit voltmeter and 5-digit counter |
| Decode serial busses faster with hardware-based serial analysis options for CAN, LIN, I²C, SPI, RS232 and more |
| Protect your investment with full upgradability |
| Specifications | |||||||||
| 3000 X-Series Overview | |||||||||
| Model | 3012A | 3014A | 3024A | 3032A | 3034A | 3052A | 3054A | 3102A | 3104A |
Bandwidth* (– 3 dB) | 100MHz | 100MHz | 200MHz | 350MHz | 350MHz | 500MHz | 500MHz | 1GHz | 1GHz |
Calculated Rise Time (10 to 90%) | ≤ 3.5ns | ≤ 3.5ns | ≤ 1.75ns | ≤ 1ns | ≤ 1ns | ≤ 700ps | ≤ 700ps | ≤ 450ps | ≤ 450ps |
Input Channels DSOX MSOX | 2 2 + 16 | 4 4 + 16 | 4 4 + 16 | 2 2 + 16 | 4 4 + 16 | 2 2 + 16 | 4 4 + 16 | 2 2 + 16 | 4 4 + 16 |
| Specifications | |||||
| Keysight InfiniiVision X-Series oscilloscopes | |||||
| Series Overview | |||||
| Model | 4000 X-Series | 3000T X-Series | 3000A X-Series | 2000 X-Series | 1000 X-Series |
| Analog Channels | 2 or 4 | 2 or 4 | 2 or 4 | 2 or 4 | 2 or 4 |
| Digital Channels | 16 (MSO models or upgrade) | 16 (MSO models or upgrade) | 16 (MSO models or upgrade) | 8 (MSO models or upgrade) | External trigger can be used as a 3rd digital channel on 2-channel models |
Bandwidth (upgradable) | 200MHz 350MHz 500MHz 1GHz 1.5GHz | 100MHz 200MHz 350MHz 500MHz 1GHz | 100MHz 200MHz 350MHz 500MHz 1GHz | 70MHz 100MHz 200MHz | 50MHz 70MHz 100MHz 200MHz |
| Max Sampling Rate | 5 GSa/s | 5 GSa/s | 4 GSa/s (≤ 500 MHz) 5 GSa/s (1 GHz) | 2 GSa/s | 2 GSa/s |
| Max Memory Depth | 4 Mpts | 4 Mpts | 2 Mpts (standard) 4 Mpts (option) | 1 Mpts (standard) | 2 Mpts |
| Max Waveform Update Rate | > 1,000,000 wfms/sec | > 1,000,000 wfms/sec | > 1,000,000 wfms/sec | > 200,000 wfms/sec | up to 200,000 wfms/sec |
| Display | 12.1 inches capacitive touch | 8.5 inches capacitive touch | 8.5 inches | 8.5 inches | 7 inches |
| Zone Touch Trigger | Standard | Standard | No | No | No |
| WaveGen 20-MHz Funtion/Arbitrary Waveform Generator | Dual-channel AWG (option) | Single-channel AWG (option) | Single-channel AWG (option) | Single-channel funtion (option) | Single-channel function (standard on G models) |
Integrated Digital Voltmeter (standard) | Yes | Yes | Yes | Yes | Yes |
Integrated Hardware Counter (standard) | 5-digit frequency or period counter (8 digits with external 10 MHz clock reference) | 8-digit frequency, period, or totalizer counter | 5 digits | 5 digits | 5 digits |
| Search and Navigate | Standard | Standard lister supported | Standard | Standard | No |
| Segment Memory | Standard | Standard | Standard | Standard | Standard (on DSO models) |
| Mask/Limit Test | Option | Option | Option | Option | Standard (on DSO models) |
| Serial Protocol Analysis Options | I²S/SPI UART CAN/CANdbc/CANFD/LIN/LIN symbolic SENT FlexRay I²S MILSTD1553 ARINC429 USB2.0 CXPI Manchester/NRZ | I²S/SPI UART/RS232 CAN/CANdbc/CANFD/LIN/LIN symbolic SENT FlexRay I²S MILSTD1553 CXPI ARINC429 Manchester/NRZ | I²S/SPI UART CAN/LIN FlexRay I²S MIL-STD1553 ARINC429 | I²S/SPI UART CAN/LIN | I²C UART(standard on all models) SPI CAN/LIN (standard on DSO models) |
| Advanced Analysis Options | Power analysis USB 2.0 signal quality test HDTV analysis FRA NFC | Power analysis HDTV analysis FRA NFC | No | No | FRA |
| Power Analysis | Yes (option) | Yes (option) | No | No | No |
| FFT | Standard | Standard Enhanced FFT | Standard | Standard | Standard |
| Advanced Math | Standard Display one funtion | Standard Display one funtion | Standard Display one funtion | Standard Display one funtion | No |
| Connectivity | Standard USB 2.0 LAN video (GPIB option) USB mouse and keyboard support | Standard USB 2.0 (LAN/video/GPIB option) USB mouse and keyboard support | Standard USB 2.0 (LAN/video/GPIB option) USB keyboard support | Standard USB 2.0 (LAN/video/GPIB option) USB keyboard support | Standard USB 2.0 LAN |
