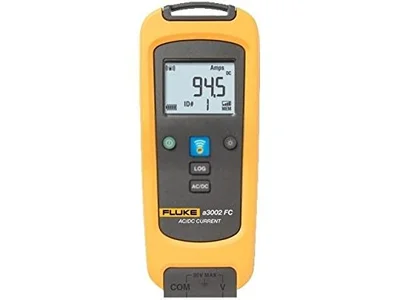

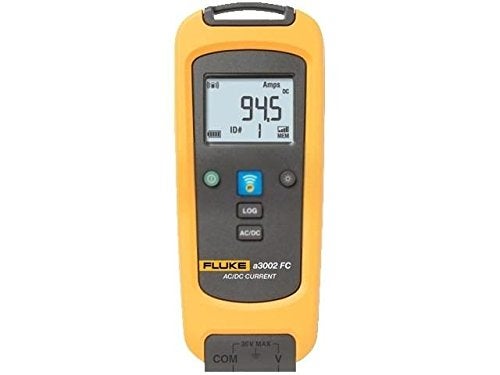

Fluke FLK-A3002FC

All the facts, right in the field.

The Fluke a3002 FC Wireless AC/DC Current Module is one member of a family of wireless test tools that let you share test data using the Fluke Connect® app with ShareLive™ video call.

Fluke Connect Wireless Test Tools put tools, not your body, near live electrical panels.

It's simple. Connect the a3002 FC current module, or any of the other Fluke Connect remote modules, and read the results on the Fluke Connect Wireless Multimeter or a portable PC from a safe distance.

Better still, the Fluke Connect test tools can send measurement data to your smartphone, so you can save and share measurements from the field with your team anytime, from anywhere.

Timing is everything when trying to find an intermittent problem and the hard part is, it doesn't always show up when you have your meter connected.

We've solved that problem with Fluke Connect - leave your remote modules connected to log measurements and walk away to address other issues.

You can then download the data for further analysis.

Personal protective equipment (PPE) can save your life, but it's bulky, hot and hard to work in.

With Fluke Connect, there's no need to work in front of live open panels or moving/hazardous machinery.

Picture having the ability to access live readings without being exposed to the live panel.

It's easy. Just de-energize the cabinet, open the panel while wearing PPE and connect one or more a3002 FC modules.

Close the cabinet, re-energize and let the Fluke Connect system work, reducing the risk of arc flash by separating yourself from hazardous measurement situations.

When your cabinet is de-energized, attach a Fluke Connect current clamp to each phase.

Close, re-energize and start taking readings.

What used to take hours and use costly equipment can be done in minutes with an affordable Fluke Connect wireless system.

Take 3-phase measurements in 1/3 of the time.

Add your laptop and go from logging to analysis and diagnosis

You can solve problems faster by seeing live measurements from multiple test points on a single screen.

Using a3002 FC current clamp modules with either Fluke i410 or i1010 AC/DC current clamps (not included with module), you can:

Take 3-phase measurements in 1/3 the time of previous methods.

Send data to your laptop and go from logging to analysis and diagnosis.

Record over time to monitor circuit load changes for an hour, a shift or a week.

Use the Fluke Connect wireless USB adapter to collect logged data from remote modules by walking past a working module and downloading logged data.

Perform for analysis with your PC and share the results using Fluke Cloud™ storage and ShareLive™ video call. View data or graphs to get input from team members.

 a3002

FC Wireless AC/DC Current Module

Range / Resolution: 1000 A / 0.1 A

Accuracy¹: (0.5% + 3)

Range / Resolution: 600.0 A / 0.1 A

Accuracy¹: (1.0% + 3)

 a3002

FC Wireless AC/DC Current Module

Maximum Voltage;

Between Terminal and Earth Ground (module)

2 AA Alkaline batteries

NEDA 15A

IEC LR6

Open air, unobstructed: Up to 20 m

Obstructed, sheetrock wall: Up to 6.5 m

Obstructed, concrete wall or steel electrical enclosure: Up to 3.5 m

0% to 90% (0°C to 35°C)

0% to 75% (35°C to 40°C)

0% to 45% (40°C to 50°C)

IEC 61236-1

Portable

Protected to IEC 61010-1

600 V CAT IV / 1000 V CAT III

3rd edition Pollution Degree 2

160 x 66 x 38 mm

(6.3 x 2.6 x 1.5 in)

0.255 kg

(9 oz)

Wireless 2000 A DC Current Clamp Meter

and Meter Modules

Wireless 2000 A DC Current Clamp Meter

and Meter Modules

Fluke 3000 FC Industrial System;

Includes multimeter, three iFlex clamp meters, one ac voltage meter, PC adapter and desktop software, accessories

Fluke 3000 FC General Maintenance System;

Includes multimeter, iFlex clamp meter, ac voltage meter, dc voltage meter, PC adapter and desktop software, accessories

Fluke 3000 FC HVAC System;

Includes multimeter, ac current clamp meter, temperature meter, PC adapter and desktop software, accessories

Fluke t3000 FC Kit

Includes multimeter, temperature meter, accessories

Fluke a3000 FC Kit;

Includes multimeter, ac current clamp meter, accessories

Fluke a3001 FC Kit;

Includes multimeter, iFlex clamp meter, accessories

Fluke v3000 FC Kit;

Includes multimeter, ac voltage meter, accessories

Fluke v3001 FC Kit;

Includes multimeter, dc voltage meter, accessories

Fluke v3003 FC Kit;

Includes multimeter, ac voltage meter, dc voltage meter, accessories
