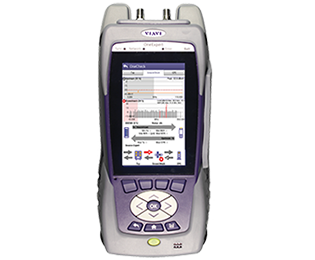

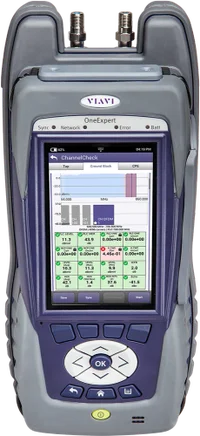

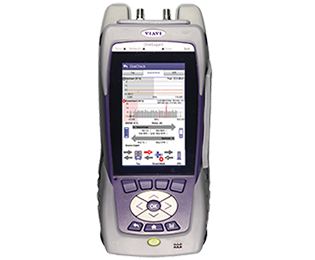

OneExpert CATV helps field technicians fix problems right—the first time. A multi-touch, user-friendly interface and OneCheck automated tests ease complex tasks with a simple dashboard with clear pass/fail results. And, its future-proof modularity ensure years of use supporting cable television and home networks.
The OneExpert platform empowers techs for quick, accurate testing and troubleshooting, with models/packages designed to address the specific needs of different work groups. As technology evolves, the future-proof platform adapts easily and capably with thorough state-of-the-art tests. Service providers must be able to adapt, quickly deploy new services and operate at high efficiency in order to maintain the highest levels of reliability and customer satisfaction.
| Key Features |
| DuoPort design with PosiScan -- a VIAVI Exclusive -- ensures proper connection and testing of Ingress Scan and Downstream tests, helping techs do the job right the first time |
| AutoChannel - Automatically identifies channel plan |
| Cloud Enabled via StrataSync to track test results and compliance |
| OneCheck dashboard clearly displays summarized results of the entire lineup, including MER/BER in about 60 seconds, with simple identification of faults needing attention |
| Expertise Built In – Session Expert -- offers background analysis that identifies issues consistently between technicians, suggests actions that help technicians fix problems, and provides VIAVI expertise and algorithms built into a simple test |
| Built in Usage Guide – learn to use the meter on the job |
| Advanced capabilities: |
| DOCSIS 3.1 physical and service performance |
| 32x8 DOCSIS for Gigabit speeds |
| WiFi 2.4GHz and 5GHz, Bluetooth |
| Dual GigE Ethernet with optional TrueSpeed for testing at ONT or CM |
| Optional Fiber Scope and Power Meter |
| Forward sweep to 1.2 GHz, reverse sweep to 200 MHz |
| Sweep backward compatible with SDA/DSAM gear |
| Specifications |
|
| Ordering Information |
|
| Description | Part Number |
| ONX-620 Packages |
|
| Dual Diplexer |
|
| Basic 42/85 MHz | ONX-620D31-4285-1010-BAS |
| Basic 65/204 MHz | ONX-620D31-6520-1212-BAS |
| IPX 42/85 MHz | ONX-620D31-4285-1010-IPX |
| IPX 65/204 MHz | ONX-620D31-6520-1212-IPX |
| TSX 42/85 MHz | ONX-620D31-4285-1010-TSX |
| TSX 65/204 MHz | ONX-620D31-6520-1212-TSX |
| Specifications |
|
| Ordering Information |
|
| Description | Part Number |
| ONX-630 Packages |
|
| Dual Diplexer |
|
| NTX 42/85 MHz | ONX-630D31-4285-1012-NTX |
| NTX 65/204 MHz | ONX-630D31-6520-1212-NTX |
| SWX 42/85 MHz | ONX-630D31-4285-1012-SWX |
| SWX 65/204 MHz | ONX-630D31-6520-1212-SWX |
