Viavi OSA-110M (2304/91.12)

Configure Unit

Available to Buy Online

View Configurations

Optical Spectrum Analyzer Module; OSA-110M, 1250 nm to 1650 nm, APC

Model

OSA-110M (2304/91.12)

Product Family

Network & Fiber Installations

Manufacturer

Viavi

Configured models contain the following attributes:

Network & Fiber InstallationsOptical Spectrum AnalyzersOSA-110M

Configurations

Key Specs

Product Overview

Resources

Let us help you with your exact configuration

Please use 'Get Quick Quote' or ‘Configure Unit’ and we’ll contact you and quote for your exact need.

Configure Unit

You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.

Product Overview

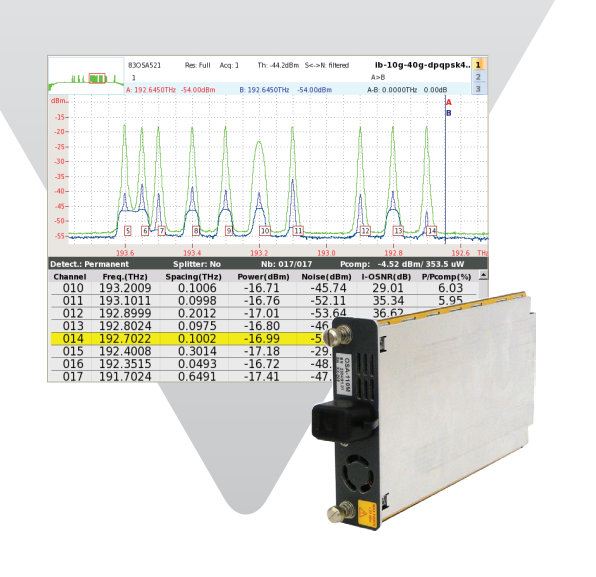

VIAVI offers a full range of compact OSAs tailored for spectral measurements in CWDM systems in the access network as well as DWDM systems in the backbone and in for Next Generation 40G/ or 100G high-speed networks backbone. The range also features an OSA version for ROADM-based systems or 40G networks with tight channel spacing, providing true OSNR measurements based on VIAVI’s unique in-band OSNR method.

IMPORTANT MAINFRAME DETAILS

These OSA Modules are generally bundled with a handheld mainframe. Ready to be used as a unit to test fiber optic cables at the job site.

For full information on mainframe capability, check the configuration to see which mainframe is bundled. Then, check our page on Viavi mainframes for full descriptions and datasheets.

Key Features

Full-band measurement: 1250nm up to 1650nm

±0.05nm wavelength accuracy guaranteed with built-in wavelength calibrator

High Power measurement version (up to +30dBm) for CATV applications (OSA-110H)

In-band OSNR measurement version (OSA-110R)

Compatible with the T-BERD/MTS-6000A, -8000 Platforms

Benefits

Optimized mobility with a light and portable OSA

Suitable for all CWDM to DWDM applications down to 33GHz channel spacing

minimize training with an easy, consistent graphical interface with auto Pass/Fail analysis on a large, high-visibility color touchscreen

Future-proof signal analysis for 40/100G testing and new modulation formats

True in-band OSNR measurements in ROADM and 40G networks with tight channel spacing

Applications

DWDM Metro and Core networks deployment and maintenance

CWDM systems in CATV, Access, and Mobile Backhaul installation and maintenance

High-speed 40G/100G interfaces verification

ROADM networks provisioning and troubleshooting

Specifications
OSA-110M/110H/110R Compact Full-Band OSAs
Features	Parameters
Optical port	universal SM-PC universal SM-APC
Connectors	FC SC ST LC DIN
ORL	>35 dB
Size (module)	122 x 235 x 26 mm (4.8 x 9.3 x 1.0 in)
Weight (module)	0.6 kg (1.3 lb)
Temperature Operating Storage	+5 to +40°C (41 to 104°F) −20 to +60°C (−4 to 140°F)
Relative Humidity	0 to 95% noncondensing

Specifications
OSA-110M/110H/110R Compact Full-Band OSAs
Module Overview
Model / Part Number	Description
OSA Modules
2304/91.02	OSA-110M, PC version
2304/91.12	OSA-110M, APC version
2304/91.03	OSA-110H, high-power PC version
2304/91.13	OSA-110H, high-power APC version
2304/91.04	OSA-110R, in-band OSNR PC version
2304/91.14	OSA-110R, in-band OSNR APC version
Application Software for Report Generation
EOFS100	FiberTrace2 reporting software
EOFS200	FiberCable 2 reporting software
