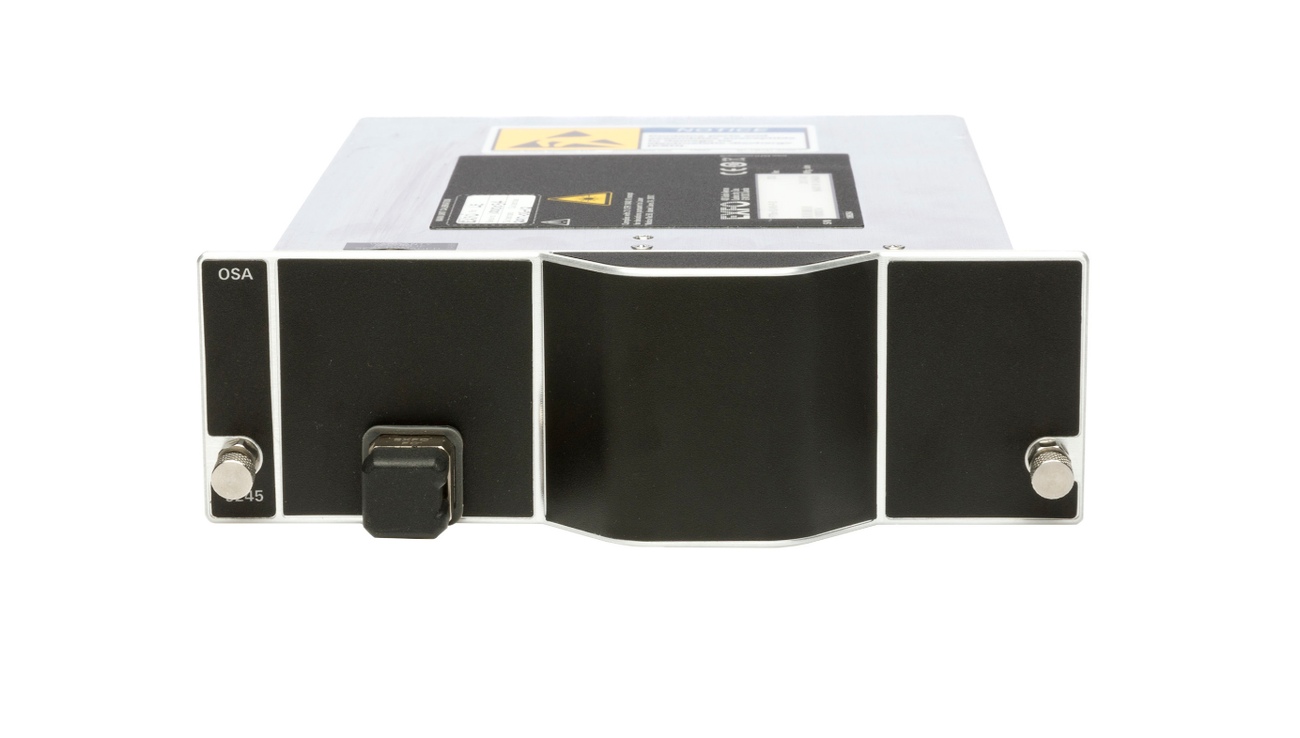

EXFO FTB-5245-P

Optical Spectrum Analyzer; with Polarization Controller

Model

FTB-5245-P

Product Family

Network & Fiber Installations

Manufacturer

EXFO

Configured models contain the following attributes:

Network & Fiber InstallationsOptical Spectrum AnalyzersHandheldModular

Configurations

Key Specs

Product Overview

Resources

Choose your configuration

Show:

Search & combine Options e.g 'C4000; M400'

Available Options for EXFO FTB-5245-P

Option	Description
Automation	Remote and local access to instrument using SCPI
COM	Enables commissioning assistant option to automate
EA-EUI-91	APC/SC Connector Adapter
EI-EUI-89	UPC/FC narrow key Connector Adapter
EI-EUI-91	UPC/SC Connector Adapter
FTB-2	2-slot capacity Modular mainframe
INB	Enables in-band OSNR option.
RF	Built-in Wi-Fi and Bluetooth Capability

Showing 1 - 5 of 5 results

Optical Spectrum Analyser with Polarization Controller

Product ID: P-616637

FTB-2 • 2-slot capacity Modular mainframeINB • Enables in-band OSNR option.EI-EUI-89 • UPC/FC narrow key Connector Adapter

Rent

Availability confirmed on quote

Quote

Quantity

No. weeks

Start date

Used

Availability confirmed on quote

Inquire

Email +1 800.553.2255

Looking For New?

This product may be available by an alternative finance solution.

Optical Spectrum Analyser with Polarization Controller

Product ID: P-616641

FTB-2 • 2-slot capacity Modular mainframeRF • Built-in Wi-Fi and Bluetooth CapabilityCOM • Enables commissioning assistant option to automateEA-EUI-91 • APC/SC Connector AdapterINB • Enables in-band OSNR option.

Rent

Availability confirmed on quote

Quote

Quantity

No. weeks

Start date

Used

Availability confirmed on quote

Inquire

Email +1 800.553.2255

Looking For New?

This product may be available by an alternative finance solution.

Optical Spectrum Analyser with Polarization Controller

Product ID: P-616642

Automation • Remote and local access to instrument using SCPIEI-EUI-89 • UPC/FC narrow key Connector AdapterINB • Enables in-band OSNR option.FTB-2 • 2-slot capacity Modular mainframe

Rent

Availability confirmed on quote

Quote

Quantity

No. weeks

Start date

Used

Availability confirmed on quote

Inquire

Email +1 800.553.2255

Looking For New?

This product may be available by an alternative finance solution.

Optical Spectrum Analyser with Polarization Controller

Product ID: P-643558

RF • Built-in Wi-Fi and Bluetooth CapabilityINB • Enables in-band OSNR option.EI-EUI-89 • UPC/FC narrow key Connector AdapterFTB-2 • 2-slot capacity Modular mainframeAutomation • Remote and local access to instrument using SCPI

Rent

Availability confirmed on quote

Quote

Quantity

No. weeks

Start date

Used

Availability confirmed on quote

Inquire

Email +1 800.553.2255

Looking For New?

This product may be available by an alternative finance solution.

Optical Spectrum Analyser with Polarization Controller

Product ID: P-225786

FTB-2 • 2-slot capacity Modular mainframeRF • Built-in Wi-Fi and Bluetooth CapabilityEI-EUI-91 • UPC/SC Connector Adapter

Rent

Availability confirmed on quote

Quote

Quantity

No. weeks

Start date

Used

Availability confirmed on quote

Inquire

Email +1 800.553.2255

Looking For New?

This product may be available by an alternative finance solution.

Showing 1 - 5 of 5 results

NOTE: If you’re in Canada, please use the ‘Quote’ option. Online Purchase is currently only available for US addresses, either via Card or Purchase Order.

How do I select a configuration?

You can scroll through configurations, search for options (separated by ;) above, and filter by Rental, New & Used. Or, let our experts guide you to the right solution by simply using ‘Quick Quote’ at the top of the page.

What’s the difference between Quote and Buy?

You can request a Quote for any item. Many New and Used items are also available to Buy online! You can mix your cart with items to Quote and items to Buy online. You’ll be able to complete the Quote and Buy checkout process at the same time. To check details, simply use ‘Quote’ and we’ll confirm everything. You can now buy either by card or by supplying a Purchase Order (P.O.). Note that P.O's will require verification and account set-up if you do not have an account.

Can I add extra items or make special requests?

Look out for the ‘Additional Information’ field when submitting your details. Use this for extra accessory or special calibration requests or for special delivery instructions. We’ll contact you when we receive your Order or Quote to fulfil.

* Prices & availability are subject to change without notice. All prices may vary due to shipping terms, sales tax, import duties, and exchange rates. Products may not be available in all locations. Any listed savings are based on the full list price of new instruments and are indicative depending on date of list; actual savings may vary based on option(s), configuration, currency exchange rates, and other factors. Warranty may vary by category or specific available product. All terms to be confirmed by full written quote or available to review in the Payment page when you buy online.

¹ For Certified Pre-Owned equipment, units go into 23-step certification checks before shipping and we will confirm lead times.

Attribute	Value
Form Factor	Handheld
Form Factor	Modular

Product Overview

New in-service Pol-Mux OSNR

With the advent of EXFO’s In-service Pol-Mux OSNR method (INSPM), the wait for a non-intrusive Pol-Mux OSNR method that works on live networks is now over! This robust method features a high dynamic range and provides very accurate Pol-Mux OSNR values for 40G/100G/200G/400G* signals. It is the preferred method for reducing coherent network outages, pinpointing defective amplifiers and decreasing troubleshooting time.

Analyze any WDM network

Regardless your network specificities and testing requirements, the FTBx-5245/5255 covers your DWDM applications and all channel spacings—from 25 GHz DWDM to CWDM—which is what we like to refer to as “no-compromise performance”.

Powerful platforms, powerful combos

Housed in the compact and portable FTB-2, FTB-2 Pro and FTB-4 Pro platforms, or in the rack-mountable LTB-8 platform, the FTBx-5245/5255 OSA test modules provide all the tools needed for maximum field efficiency from the market’s most compact high-speed deployment and multiservice testing solutions. When equipped with the commissioning assistant option or the In-service Pol-Mux option, this versatile OSA can be combined with the FTBx-88200NGE Power Blazer module to become the industry’s smallest OSA/transport solution in a single platform for commissioning 40G/400G circuits.

Key Features:

Field testing Robust in-service Pol-Mux OSNR for 100G/200G/400G (FTBx-5255)

Industry’s only all-in-one OSA covering all applications: high speed (100G+ in-service OSNR), CWDM, O- and L-band testing

Portable solution for spectral characterization of DWDM/CWDM networks

Industry’s smallest OSA/transport solution in a single platform (FTB-4 Pro)

Pol-Mux OSNR option compliant with IEC 61282-12 standard

SPECTRAL MEASUREMENT
	FTBx-5245	FTBx-5255
Wavelength range (nm)	1250 to 1650	1250 to 1650
Wavelength uncertainty (nm)	±0.05	±0.025
	±0.01	±0.010
Reference	Internal	Internal
Resolution bandwidth (RBW) (nm)	0.065	0.035
		<0.02 (high resolution mode)
Wavelength linearity (nm)	±0.01	±0.01
Wavelength repeatability 2σ (nm)	±0.003	±0.003
Analysis mode	WDM, EDFA, drift, spectral transmittance, DFB, FP	WDM, EDFA, drift, spectral transmittance, DFB, FP

POWER MEASUREMENT	FTBx-5245	FTBx-5255	HPW option
Dynamic range (dBm) (per channel)^{b}	–80 to 18	–80 to 18	–75 to 23
Maximum total safe power (dBm)	23	23	29
Absolute power uncertainty (dB)	±0.5	±0.5	±0.5
Power repeatability 2σ (dB)	±0.02	±0.02	±0.02
