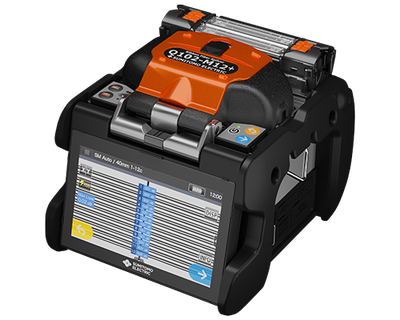

The Sumitomo Q102-M12+, with NanoTune, automatically identifies optimal fusion-splicing conditions based on the fiber’s end face. When a cleave error is detected, fibers are spliced with an optimized arc condition.
Auto-clamping adjustment system (ACAS) automatically optimizes the clamping pressure according to the number of fibers. Additional horizontal fiber movement helps the fiber align properly on the high-precision V-Groove by removing dust and debris.
The Q102-M12+ helps prevent fiber offset which increases splicing success rate and lower splice loss.
Buildup and dust adheres to V-grooves due to repeated splicing. Cleaning the splicer is now easier with patented special coatings on the V-grooves and microscope lenses. Additionally, the microscope lens has an anti-scratch and anti-fog coating that preserves image quality for superior splicing.
| PROPERTY | SPECIFICATION |
| Monitor | 5.0″ touch screen color LCD display |
| Splice Time (Typical) | 11 sec (SM 12c Quick Mode), 14 sec (SM 12c Std. Mode) |
| Heating Time (Typical) | 28 sec (FPS-6 sleeves, 40 mm 1-12c Quick Mode) |
Splice & Heat Cycles per
Battery Full Charge | Approx 180 |
| Shock Resistance | Drop from 76 cm on 5 faces (excluding top face) |
| Water Resistance | Equivalent to IPx2 |
| Dust Resistance | Equivalent to IP5x |
| PROPERTY | SPECIFICATION |
| Height | 5.1 in (130 mm) |
| Width | 5 in (128 mm) |
| Depth | 6 in (154 mm) |
| Weight (Without Battery) | 4 lb (1.8 kg) |
| Weight (With Battery) | 4.6 lb (2.1 kg) |
