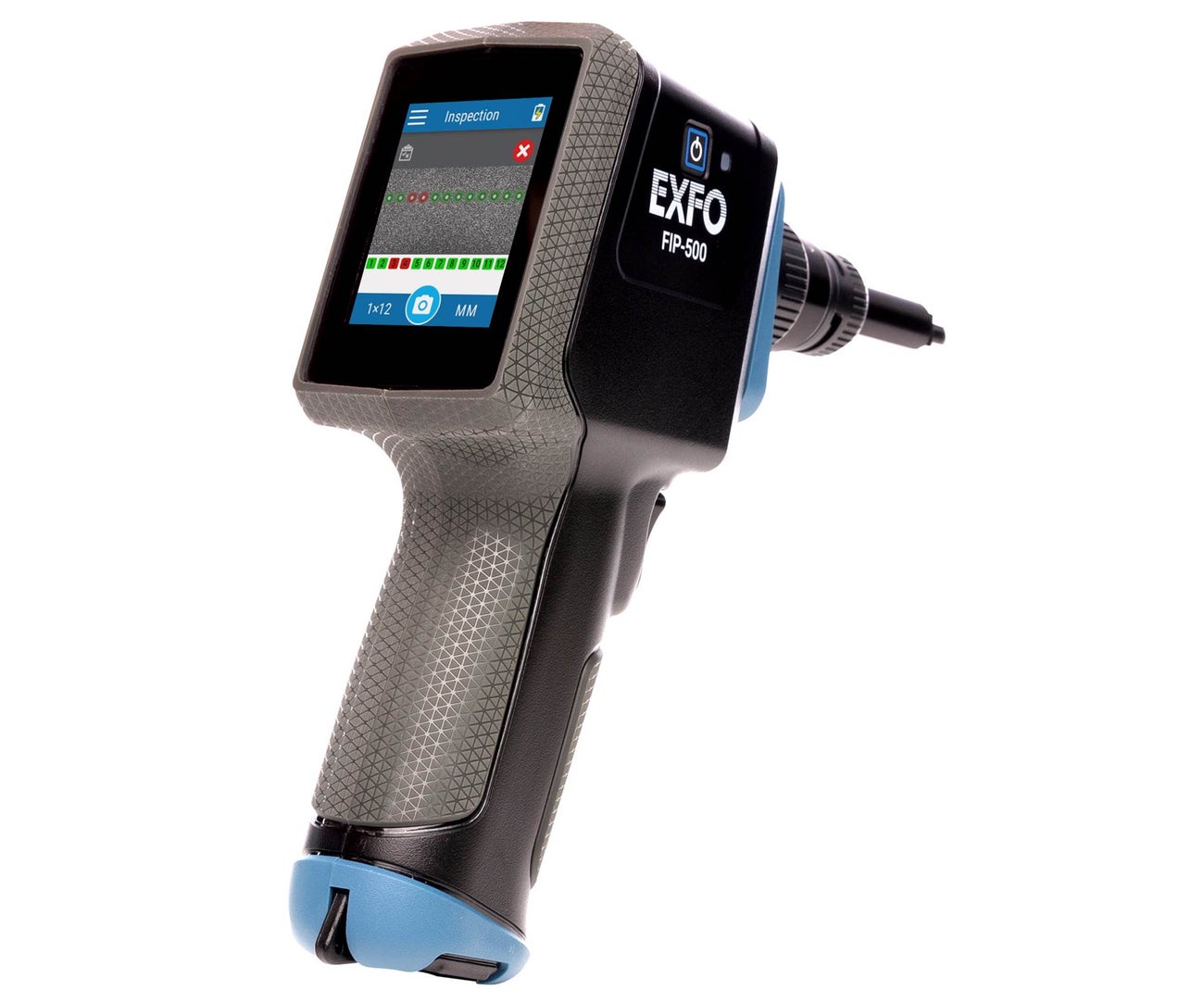

The FIP-500 was designed with not one, but several innovative image capture techniques. This unprecedented visibility of the connector end face translates into optimal accuracy and repeatability.
| Key Features |
| Fastest inspection in the industry (in under 10 seconds for MPO-12) |
| Best-in-class optical performance for accurate and repeatable results |
| Zero-button inspection: 100% automated from insertion to data saving |
| Wide array of adapter tips for single-fiber and multi-fiber connectors (e.g., LC, SC, ST, MPO, OptiTap®, OptiTip®) |
| Smartphone-grade 2.4-inch color touchscreen |
| Quick-connect design: quarter-turn click for switching between any tips or inspection type |
| Specifications |
|
| FIP-500 Fiber Inspection Scope |
|
| Model Overview |
|
| Model (FIP-500) | Description |
| FIP-500 | FIP-500 Fiber inspection scope |
| Configuration¹ (FIP-500-1) | Supports interchangeable optical heads |
| Optical Head² (FIP-500-1-XX) |
|
| OHMF | Multifiber optical head |
| OHSF | Single-fiber optical head |
| Multi-Fiber Tips³ (FIP-500-1-XX-XX) |
|
| STIP-MPO-U | MPO/UPC SmarTip |
| STIP-MPO-A | MPO/APC SmarTip |
| STIP-OTIP-A | OptiTip/APC SmarTip |
| STIP-QODC12-U | QODC-12/UPC SmarTip |
| STIP-QODC12-A | QODC-12/APC SmarTip |
| Single-Fiber Tips (cord)³ (FIP-500-1-XX-XX-XX) |
|
| STIP-U2.5-U | SmarTip for universal 2.5 mm, UPC patchcord |
| STIP-U2.5-A | SmarTip for universal 2.5 mm, APC patchcord |
| Single-Fiber Tips (bulkhead)⁴ (FIP-500-1-XX-XX-XX-XX) |
|
| STIP-SC-A | SmarTip for SC/APC bulkhead connector |
| STIP-OTAP-A | SmarTip for OptiTap bulkhead connector |
Notes:
¹. More that one optical head or SmarTip can be ordered together with the FIP-500.
². Both optical heads can be purchased together.
³. Multifiber optical head required.
⁴. Single-fiber optical head required.
| Specifications |
|
| FIP-500 Fiber Inspection Scope |
|
| FIP-500 Kits (FIP-500-KIT) Overview |
|
| FIP-500-KIT-XX |
|
| FIP-500 Kit 1 | MPO UPC inspection:
Includes;
FIP-500-1 with interchangeable multifier optical head (OHMF)
MPO/UPC SmarTip (STIP-MPO-U)
Soft Carrying Case (GP-10-071)
|
| FIP-500 Kit 2 | MPO APC inspection:
Includes;
FIP-500-1 with interchangeable multifiber optical head (OHMF)
MPO/APC SmarTip (STIP-MPO-A)
Soft Carrying Case (GP-10-071)
|
| FIP-500 Kit 3 | MPO UPC and APC inspection:
Includes FIP-500-1 with interchangeable multifiber optical head (OHMF)
MPO/UPC SmarTip (STIP-MPO-U)
MPO/APC SmarTip (STIP-MPO-A)
Soft Carrying Case (GP-10-071)
|
