Tektronix AFG31152

Option	Description
AFG31152 C3	Calibration Service 3 Yrs. Provides traceable or functional verification events whichever are applicable to the Product. Cals are at Tektronix recommended interval during the coverage period. Cal coverage includes the Manufactures Cal + 2
AFG31152 C5	Calibration Service 5 Yrs. Provides traceable or functional verification events whichever are applicable to the Product. Cals are at Tektronix recommended interval during the coverage period. Cal coverage includes the Manufactures Cal + 4
AFG31152 D1	Calibration Data Report
AFG31152 D3	Calibration Data Report 3 Years (with Option C3)
AFG31152 D5	Calibration Data Report 5 Years (with Option C5)
AFG31152 MEM	Installed option; Extends arb memory to 128Mpts/ch in Advanced mode
AFG31152 R5	Standard Warranty Extended to 5 Years. Covers parts, labor and 2-day shipping within country. Guarantees faster repair time than without coverage. All repairs include calibration and updates. Hassle free - a single call starts the process
AFG31152 SEQ	Installed option; Enables sequence, triggered and gated in Advanced mode
AFG31152 T3	Three Year Total Protection Plan, includes repair or replacement coverage from wear and tear, accidental damage, ESD or EOS plus preventative maintenance. Including a 5 day turnaround time and priority access to customer support
AFG31152 T5	Five Year Total Protection Plan, includes repair or replacement coverage from wear and tear, accidental damage, ESD or EOS plus preventative maintenance. Including a 5 day turnaround time and priority access to customer support

Attribute	Value
Channel/Port Count	2
High Frequency (range)	100MHz <= 1GHz

Product Overview

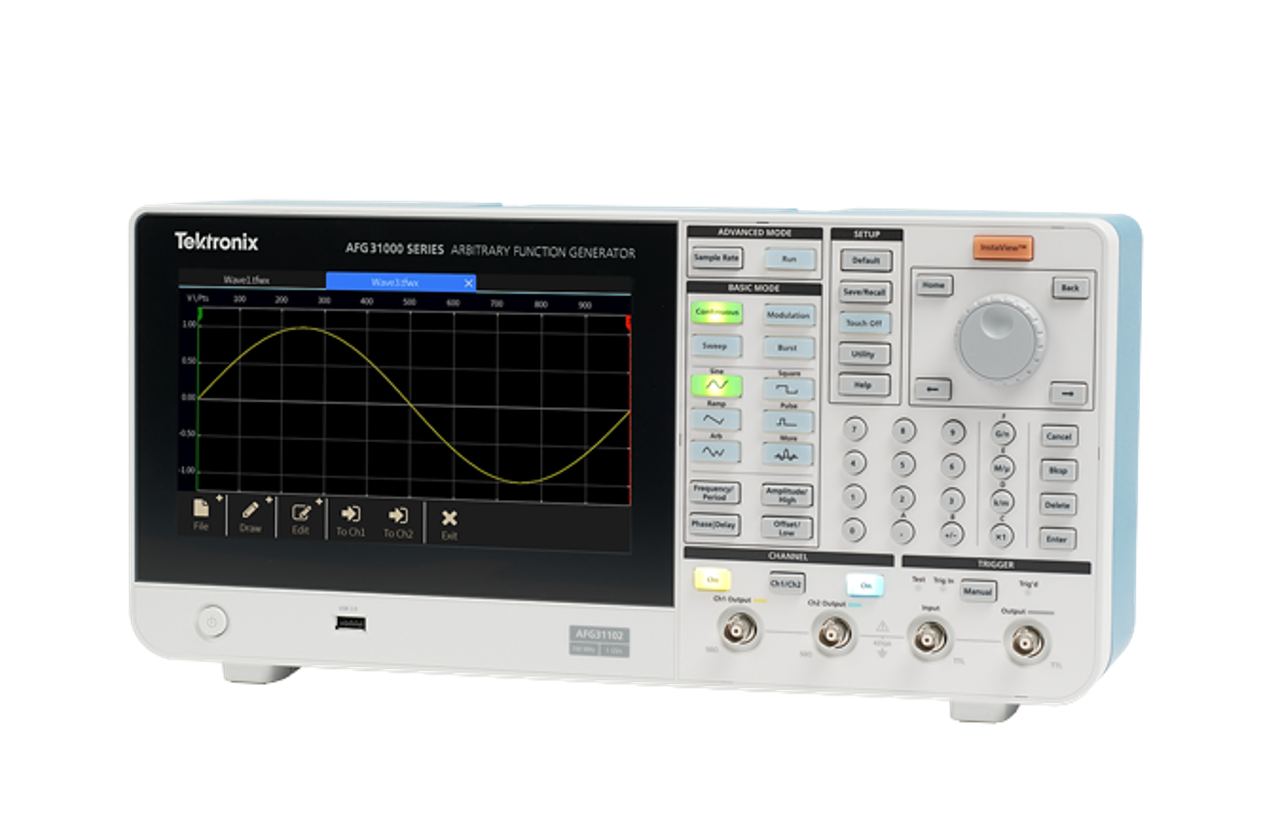

The AFG31000 series with InstaView™ technology is the first high-performance AFG with built-in waveform generation applications, patented real-time wave monitoring, and a modern user interface.

The AFG31000 is the first function generator on the market that includes built-in double pulse test software. Now you can generate two waveforms with varying pulse widths (from 20 ns to 150 µs) in under a minute directly on the touchscreen display. No need for an external PC application or manual programming.

Key Features

Patented InstaView™ technology enables engineers to see the actual waveform at the Device Under Test (DUT) in real time, without the need of an oscilloscope and probe, eliminating the uncertainty caused by mismatched impedance

Sequencing option adds the ability to program long, complex waveforms with up to 256 steps

The 9-inch capacitive touch screen works like a smart phone and has short-cuts to frequently used settings

Built-in ArbBuilder lets you create and edit arbitrary waveforms on the instrument, eliminating the need to connect to a PC

Outputs are protected from over voltage and current to minimize potential instrument damage

Built-in Double Pulse Test application to generate voltage pulses with varying pulse widths onto the DUTs

Key Performance Specifications

1 or 2 channel models

Output amplitude range 1 mVp-p to 10 Vp-p into 50Ω loads

Basic (AFG) Mode:

250 MSa/s, 500 MSa/s, 1 GSa/s or 2GSa/s sample rate

14-bit vertical resolution

Continuous, modulation, sweeping and burst run modes

128 kpts arbitrary waveform memory in each channel

Advanced Mode:

Continuous mode and optional sequence, triggered and gated modes

16 Mpts arbitrary waveform memory in each channel (128 Mpts optional)

Up to 256 steps in sequence mode with loop, jump and wait events

Variable sample clock 1 µSa/s to 2 GSa/s

Minimum waveform length 168pts with granularity of 1 point

Applications

Advanced research

Clock and system synchronization

Replication of real world signals

Component and circuit characterization and validation

Embedded circuit design and test

General purpose signal generation

Double pulse test

The AFG31000 series is the industry’s first arbitrary function generator with full function Basic (AFG) and Advanced (Sequence) modes.

In Basic mode, the AFG31000 generates traditional functions and arbitrary waveforms. The touchscreen and front-panel controls make it simple to set up.

Basic mode lets you change frequency without the need to worry about waveform length and sample rate. This feature is useful in analog designs that characterize filter/amplifier frequency responses or in digital designs where clock rates change frequently.

Specifications
AFG31000 Series Arbitrary Function Generator
Model Overview
Model	Analog Channels	Output Frequency	Record Length	Sample Rate	Vertical Resolution
AFG31021	1	25 MHz	16 MSa/ch	250 MS/s	14-bit
AFG31051	1	50 MHz	16 MSa/ch	500 MS/s	14-bit
AFG31022	2	25 MHz	16 MSa/ch	250 MS/s	14-bit
AFG31052	2	50 MHz	16 MSa/ch	500 MS/s	14-bit
AFG31101	1	100 MHz	16 MSa/ch	1 GS/s	14-bit
AFG31151	1	150 MHz	16 MSa/ch	2 GS/s	14-bit
AFG31102	2	100 MHz	16 MSa/ch	1 GS/s	14-bit
AFG31152	2	150 MHz	16 MSa/ch	2 GS/s	14-bit
AFG31251	1	250 MHz	16 MSa/ch	2 GS/s	14-bit
AFG31252	2	250 MHz	16 MSa/ch	2 GS/s	14-bit
