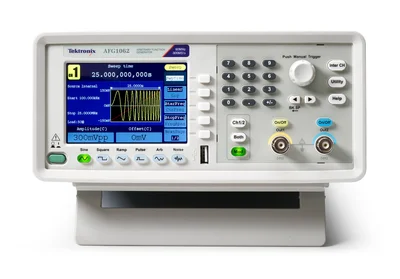

The AFG1000 Series Arbitrary Function Generator provides a waveform generation tool with the best price performance ratio. It includes two models with dual channels, up to 60 MHz bandwidth and up to 10 Vp-poutput amplitude. The four run modes, 50 built-in frequently-used waveforms and the built-in 200 MHz frequency counter cover most waveform generation needs in your experiment and test jobs. The 3.95-inch TFT LCD, short-cut buttons, USB interface and PC software provide the most intuitive ways to configure the instrument.
With 25 MHz or 60MHz bandwidth, 2 output channels, 1 mVpp to 10 Vpp output amplitude across full bandwidth, Tektronix AFG1000 Arbitrary/Function Generator generates all kinds of waveforms needed in a lab. Most importantly, it offers the best value for money in the Tektronix line-up of arbitrary function generators.
| Key Features |
| Dual-channel, 25MHz bandwidth with 1mVpp to 10Vpp output; 14-bit vertical resolution and 1uHz frequency resolution |
| 50 built-in arbitrary waveforms with continuous, modulation, sweep and burst modes |
| Dedicated 3.95” TFT LCD display, easy-to-navigate front panel and menu |
| Supported by TekSmartLab™ |
| Built-in 200MHz, 6-digit frequency counter |
| Standard 5 year warranty |
| Benefits |
| Generate more precise waveforms for more accurate lab result. |
| Generate all kinds of waveforms needed in a lab. |
| Provide easy access for users to conduct experiments. |
| Make it convenient for educational users to monitor and configure multiple instruments in a lab. |
| Measure frequency/period/pulse width/duty cycle in a precise way without a standalone frequency counter. |
| Better user experience guaranteed by Tektronix quality and service. |
| Specifications |
|
|
|
|
|
|
| Model Overview |
|
|
|
|
|
|
| Model | Analog Bandwidth | Analog Channels | Output Frequency | Record Length | Sample Rate | Vertical Resolution |
| AFG1022 | 25 MHz | 2 | 1 uHz to 25 MHz | 8k points | 125 MS/s | 14-bit |
| AFG1062 | 60 MHz | 2 | 1 uHz to 60 MHz | 1M points | 300 MS/s | 14-bit |
