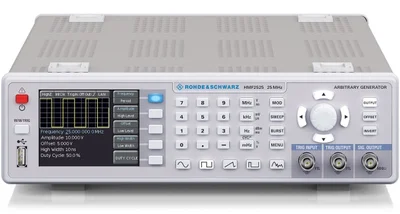

Rohde & Schwarz HMF2550 (3593.0622.02)

Configure Unit

Available to Buy Online

View Configurations

Arbitrary Function Generator ; 10 μHz to 50 MHz

Model

HMF2550 (3593.0622.02)

Product Family

Multimeter

Manufacturer

Rohde & Schwarz

Configured models contain the following attributes:

MultimeterData AcquisitionCounters & Function GeneratorsFunction-Arb Generators210MHz <= 100MHz

Configurations

Key Specs

Product Overview

Resources

Let us help you with your exact configuration

Please use 'Get Quick Quote' or ‘Configure Unit’ and we’ll contact you and quote for your exact need.

Configure Unit

You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.

Attribute	Value
Channel/Port Count	2
High Frequency (range)	10MHz <= 100MHz

Product Overview

The Arbitrary Function Generator provides pulses with a recurrence rate of up to 12.5 MHz/25 MHz; the pulse width can be set from 15 ns to 999 s with a resolution of 5 ns. Rise/fall time can be selected from 8 ns to 500 ns – a very useful feature when characterizing input hysteresis of semiconductor devices

Key Features

Frequency range: 10 μHz to 25/50 MHz

Triangle waveforms up to 10 MHz

Output voltage: 5 mV to 10 V (Vpp) (into 50 Ω)

Total harmonic distortion of 0.04 % (f < 100 kHz)

Waveforms: sine, square, triangle/ramp, pulse, arbitrary (incl. predefined waveforms such as white/pink noise, cardinal sine, exponential rise/fall)

Modulation modes: AM, FM, pulse, PWM, FSK (internal and external)

External connectors: TRIGGER (I/O), SWEEP (O), MODULATION (I)

External reference input/output (10 MHz) via BNC connector

Arbitrary waveform generator: 250 Msample/s, 14 bit, 256 kpoint

PC software (free of charge) to easily create user-defined waveforms

Oscillographic signal display in realtime

Front USB connector to easily save and recall waveforms and settings

USB/RS-232 dual interface for remote control

Fanless design

Specifications
HMF2525 HMF2550 Arbitrary Function Generator
Ordering Information
Model	Frequency Range	Output Voltage	Total Harmonic Distortion	DC Offset	Arbitrary Waveform Length	Arbitrary Waveform Resolution
HMF2525	10 μHz to 25 MHz	5 mVpp to 10 Vpp (into 50 Ω) 10 mVpp to 20 Vpp (open circuit)	0.04 % typ. (f < 100 kHz)	±5 mV to 5 V	up to 256 ksamples	14 bit
HMF2550	10 μHz to 50 MHz	5 mVpp to 10 Vpp (into 50 Ω) 10 mVpp to 20 Vpp (open circuit)	0.04 % typ. (f < 100 kHz)	±5 mV to 5 V	up to 256 ksamples	14 bit
