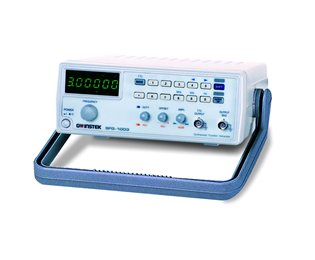

GW Instek SFG-1013

The SFG-1000 Series, an economic function generator with high accuracy and high stability output, are designed based on the DDS (Direct Digital Synthesized) technology embedded in a large scale FPGA.

The 3MHz frequency range and the output waveform selection of Sine, Square, Triangle and TTL available in the SFG-1000 Series adequately provide the fundamental functions to ensure high confidence in test results. The DDS technology at an affordable price gives a high value solution to the users who need a signal source for accurate but simple measurement applications.

Key Features:

• DDS Technique and FPGA Chip Design
• Frequency Range:0.1Hz~3MHz
• High Frequency Accuracy : ± 20ppm
• High Frequency Stability : ± 20ppm
• Max. Frequency Resolution : 100mHz
• Low Distortion Sine Wave : -55dBc,0.1Hz~200kHz
• Voltage Display (Only SFG-1013)
