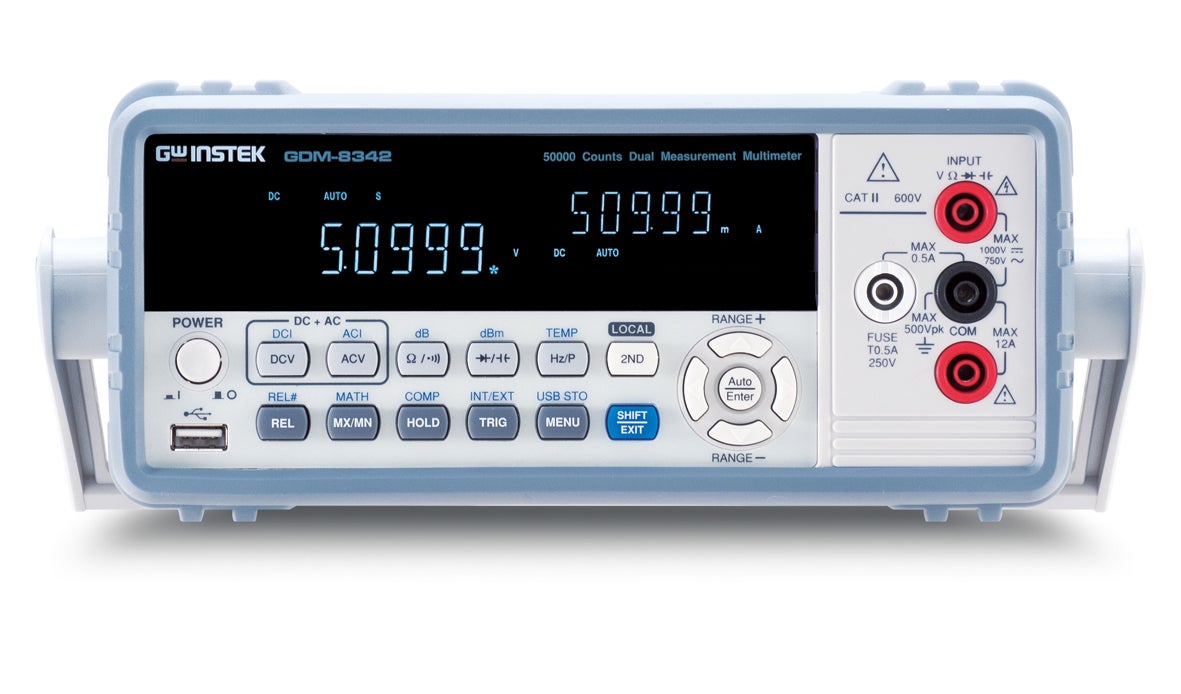

The GDM-834x series, which has two models -GDM-8341 and GDM 8342. Its exceptional features include 50,000 counts, VFD dual-display, 0.02% basic DC voltage accuracy and a USB protocol connector to provide users with measurement precision, lucid data observation, and the convenience to connect with the personal computer.
The GDM-834x series not only supports the fundamental measurement items provided by general multimeters, but also equips with capacitance and temperature measurement functions. Furthermore, the GDM-834x series also provides many auxiliary functions to meet the measurement requirements for manufacturing process tests, educational experiments and testing facilities.
With respect to storing and retrieving data, the GDM-834x series has two methods to offer: first, the USB flash drive storage function --- operating alone without connecting with a computer; second, USB interface (virtual COM port) and optional GPIB interface (must be installed in factory) for automatic measurement system users to conveniently save and retrieve data.
| Key Features |
| 50,000 counts, VFD display |
| Dual measurement/Dual display |
| Selectable measurement speeds, the maximum: 40 Readings/s for DCV |
| The basic precision of DC voltage: 0.02% |
| Auto/manual Ranging |
| True RMS (AC，AC+DC) measurements |
| 11 different measurement functions |
| Max./Min., REL, MX+B, 1/X, Ref%, Compare, Hold, dB, dBm |
| Standard USB device interface to connect with a computer |
| Temperature measurement function (GDM-8342 only) |
| USB storage for Data collection (GDM-8342 only) |
| Specifications |
|
| GDM-834x Series |
|
| Model Overview |
|
| Model | Description |
| GDM-8342 with GPIB | 50,000 Counts Digit Dual Measurement Multimeter with GPIB Interface |
| GDM-8342 | 50,000 Counts Digit Dual Measurement Multimeter |
| GDM-8341 | 50,000 Counts Digit Dual Measurement Multimeter |
