Specifications |
|

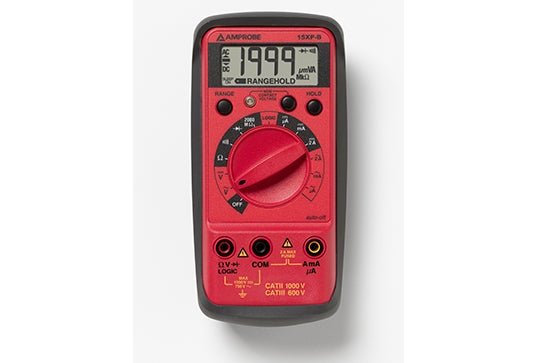

Amprobe 15XP-B Digital Multimeter VolTect™
Non-Contact Voltage Detection
|
|
Feature | Parameters |
Model | 15XP-B |
DC Voltage | 200.0 mV
2.000 V
20.00 V
200.0 V
600 V
|
AC Voltage | 200.0 mV
2.000 V
20.00 V
200.0 V
600 V
|
Current AC/DC | 200.0 µA
2.000 mA
20.00 mA
200.0 mA
2 A
|
Resistance | 200.0 Ω
2.000 kΩ
20.00 kΩ
200.0 kΩ
2.000 MΩ
20.00 MΩ
2000 MΩ
|
Continuity Beeper | • |
VolTect™ Non-Contact Voltage Detection | 70 V AC → 600 V AC (50 Hz → 60 Hz) |
Capacitance | – |
Frequency | – |
Temperature | – |
Logic Test | TTL, 20 MHz |
Battery Test | – |
Display | 3-1/2 digit liquid crystal display (LCD) with a maximum reading of 1999 |
Polarity | Automatic, positive implied, negative polarity indication |
Over-Range | (OL) or (-OL) is displayed |
Zero | Automatic |
Low Battery Indication | The + is displayed when the battery voltage drops below the operating level |
Auto Power Off | Approx. 10 minutes |
Measurement Rate | 2 times per second, nominal |
Operating Environment | 0 °C to 50 °C at <70 % R.H. |
Accuracy | Stated accuracy at 23 °C ± 5 °C, <75 % relative humidity |
Power | Single standard 9 volt battery, NEDA 1604, JIS 006P, IEC 6F22 |
DC Volt Ranges | 200 mV
2 V
20 V
200 V
600 V
Accuracy: ± (0.5 % rdg + 1 dgt)
|
AC Volts (45 Hz to 500 Hz) Ranges | 200 mV
2 V
20 V
200 V
600 V
Accuracy: ± (1.5 % rdg + 5 dgts)
|
DC Current Ranges | 200 µA
2000 µA
20 mA
200 mA
Accuracy: ± (1.0 % rdg + 2 dgt)
2 A, Accuracy ± (2.0 % rdg + 3 dgts)
|
AC Current (45 Hz to 500 Hz) Ranges | 200 µA,
2000 µA
20 mA
200 mA
Accuracy: ± (1.5 % rdg + 5 dgts)
2 A, Accuracy ± (2.5 % rdg + 5 dgts)
|
Resistance | 200 Ω
2 kΩ
20 kΩ
200 kΩ
2 MΩ
± (1.0 % rdg + 4 dgts)
|
Resistance | 2000 MΩ
± {5.0 % (rdg -10 dgts) +20 dgt}
|
Continuity Audible Indication | Less than 25 Ω |
Diode Test Current | 1.2 mA (approximate) ±(1.5 % rdg + 3 dgts) |
Logic Test | TTL |
Non-Contact Voltage Indicator | Sense voltage 70 V to 600 V AC (50 Hz to 60 Hz) beeper chirps and big bright red LED comes on, works on all ranges |
