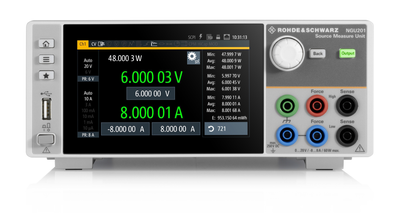

The two-quadrant R&S NGU201 and the four-quadrant R&S NGU401 provide up to 60 W of output power and sink power, respectively. The channels are floating, galvanically isolated and protected against overload and short circuits.
With six measurement ranges for current and a resolution of up to 6 ½ digits when measuring voltage, current and power, the R&S NGU source measure units are perfect for characterizing devices that work from extremely low power consumption to high currents in the ampere range. Using ammeters with feedback-amplifier technology increases accuracy and widens the sensitivity down to the nA range. With an acquisition rate of up to 500 000 samples per second, even extremely fast variations in voltage or current can be captured. The instruments provide fast load recovery time of < 30 μs combined with minimum overshoot even during a demanding load change.
The linear design of the output stages allows the R&S NGU source measure units to operate as a source and sink with minimum residual ripple and noise. The two-quadrant NGU201 source measure unit is a new member in the family of wireless communications test instruments, mainly designed to supply devices under test with extremely low sleep currents, such as Bluetooth® low energy devices.
| Promotion Contains |
| NGU201 Source Measure Unit |
| NGU-K103 Digital Trigger I/O |
| NGU-K104 DVM Option |
| NGU-K106 Battery Simulation |
| Key Features: |
| Fast load regulation |
| Minimum residual ripple and low noise |
| Readings with up to 6 ½ digit resolution |
| Galvanically isolated, floating channels |
| Output stage isolated with relays |
| Voltage priority and current priority mode |
| High-capacitance mode |
| High speed data acquisition (FastLog function) |
| Protection functions to safeguard instrument and DUT |
| Safety limits to safeguard the DUT |
|
| R&S NGU201 – The Wireless Communications Specialist |
| Two quadrants: operates as source and sink |
| Variable output impedance and constant resistance mode |
| Digital voltmeter (DVM) function |
| Battery simulation |
Package NGU201 COMPLETE PACKAGE Contains serialized product+option: NGU201 2-Q SOURCE MEASURE UNIT 3639.3763K02 consisting of: -NGU201 2-Q SOURCE MEASURE UNIT -NGU-K103 DIGITAL TRIGGER I/O -NGU-K104 DVM OPTION -NGU-K106 BATTERY SIMULATION
