Sub Femtoamp Remote Source Meter; 2.2W/20V
Model
6430Product Family
LCR / Impedance AnalyzersManufacturer
KeithleyConfigured models contain the following attributes:
LCR / Impedance AnalyzersSemiconductor Test EquipmentDC <= 1kHzConfigurations
Key Specs
Product Overview
Resources
Let us help you with your exact configuration
Please use 'Get Quick Quote' or ‘Configure Unit’ and we’ll contact you and quote for your exact need.
You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.
Key Specs
Indicates attributes available at part level. See Configurations tab for part detail.
| Attribute | Value |
|---|---|
| High Frequency (range) | DC <= 1kHz |
Product Overview
Choose from three sensitive options for precision high resistance and low current measurements. The 5½-digit Model 6514 and Model 6517B Electrometers offer 1fA sensitivity, >200TΩ input impedance on voltage measurements, and charge measurements down to 10fC. The 6½-digit Model 6430 Sub-Femtoamp Remote SourceMeter SMU Instrument can measure current with 1aA sensitivity. Its low noise and drift performance make it ideal for research on single electron devices, highly resistive nanowires and nanotubes, polymers, and electrochemical applications.
The Model 6430 Sub-Femtoamp Remote SourceMeter SMU Instrument combines the voltage and current sourcing and measurement functions of Keithley’s popular SourceMeter SMU instruments with sensitivity, noise, and input resistance specifications superior to electrometers.

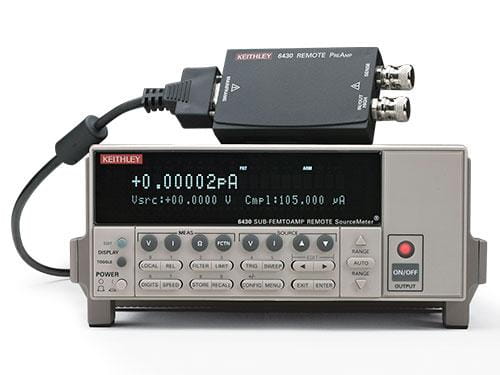

This unique combination of broad functionality and exceptional measurement integrity is made possible by the Model 6430’s Remote PreAmp, which offers a very sensitive bi-directional amplifier with sensitive feedback elements for measuring or sourcing currents at the device being tested. The high level signals output by the Remote PreAmp are sent to the controlling mainframe via a two-meter cable. This allows the user to make a direct or very short connection to the signal, minimizing the effects of cable noise.
| Key Features | Benefits |
| Extremely low noise (0.4fAp-p for 6430, <1fA for 6517B and 6514) | Ensures more accurate measurements of the extremely low currents common in device and materials research. |
| Resistance measurements up to 1016Ω (6517B) | Measures resistance on ultra-high resistance materials and insulators accurately. |
| Remote PreAmp can be located at the signal source (6430) | Allows making a direct or very short connection to the signal source, minimizing noise sources such as cable noise. |
| Low burden voltage | Eliminates errors that affect the accuracy of low current measurements. |
| Built-in ±1kV voltage source with sweep capability (6517B) | Simplifies performing leakage, breakdown, and resistance testing; As well as volume (Ω-cm) and surface resistivity (Ω/square) measurements on high resistivity materials. |
| Optional Model 8009 Resistivity Chamber for measuring volume and surface resistivities of sample materials (6517B) | Protects you from contact with potentially hazardous voltages; Opening the lid of the chamber automatically turns off the instrument’s voltage source. |
| High measurement speeds even on low-level signals | Allows faster low-level component testing. |
| Programmable digital I/O and built-in interfaces | Simplifies building automated component test systems. |
| Specifications | |||||
Series 6500, 6430 High Resistance / Low Current Electrometers | |||||
| Model | Current | Voltage | Resistance | Charge | Source |
| 6514 | 100aA - 20mA | 10µV - 200V | 10mΩ - 200GΩ | 10fC - 20μC | - |
| 6517B | 10aA - 20mA | 10µV - 200V | 100Ω - 10PΩ | 10fC - 2μC | 0 - ±1000V |
| 6430 | 10aA - 100mA | 1µV - 200V | 1µΩ - >20TΩ | - | 0 - ±200V 0 - ±100mA |
| Specifications | |
Series 6500, 6430 High Resistance / Low Current Electrometers | |
| Ordering Information | |
| Model Number | Description |
| 6430 | Sub-femtoamp Remote SourceMeter SMU Instrument |
| 6514 | Programmable Electrometer |
| 6517B | Electrometer/High Resistance Meter |
| Specifications | |
Keithley 6430 Sub-femtoamp Remote SourceMeter SMU Instrument | |
| Model Overview | |
| Model | Description |
| 6430 | Sub-femtoamp Remote SourceMeter SMU Instrument |
| Supplied Accessories | |
| 6430-322-1B | Low Noise Triax Cable, 3-slot triax to alligator clips, 20cm (8 in) |
| 8607 | Safety High Voltage Dual Test Leads |
| CA-176-1E | PreAmp Cable, 2m (6.6 ft) |
| CA-186-1B | Banana Lead to Screw Terminal Adapter |
| CAP-31 | 3-lug Protective Cap (2) |
| -- | Instruction Manual |
| Available Accessories | |
| 7007-1 | Shielded GPIB Cable, 1m (3.3 ft) |
| 7007-2 | Shielded GPIB Cable, 2m (6.6 ft) |
| 7007-4 | Shielded GPIB Cable, 4m (13.1 ft) |
| 7007-05 | Shielded GPIB Cable, 0.5m (1.6 ft) |
| 7078-TRX-6IN | 3-slot, Low Noise, 0.15m (0.5 ft) Guarded Triax Cable |
| 8501-1 | Trigger Link Cable, 1m (3.3 ft.) |
| 8501-2 | Trigger Link Cable, 2m (6.6 ft.) |
| 8502 | Trigger Link Adapter Box |
| 8503 | Trigger Link DIN-to-BNC Trigger Cable |
| KPCI-488LPA | IEEE-488 Interface/Controller for the PCI Bus |
| KUSB-488B | IEEE-488 USB-to-GPIB Interface Adapter |
