Rohde & Schwarz LCX-Z11 (3639.2538.02)

Configure Unit

Available to Buy Online

View Configurations

BNC Extension Cable; 1 m

Model

LCX-Z11 (3639.2538.02)

Product Family

LCR / Impedance Analyzers

Manufacturer

Rohde & Schwarz

Configured models contain the following attributes:

LCR / Impedance AnalyzersLCR Meters1MHz <= 10MHz

Configurations

Key Specs

Product Overview

Resources

Let us help you with your exact configuration

Please use 'Get Quick Quote' or ‘Configure Unit’ and we’ll contact you and quote for your exact need.

Configure Unit

You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.

Attribute	Value
High Frequency (range)	1MHz <= 10MHz

Product Overview

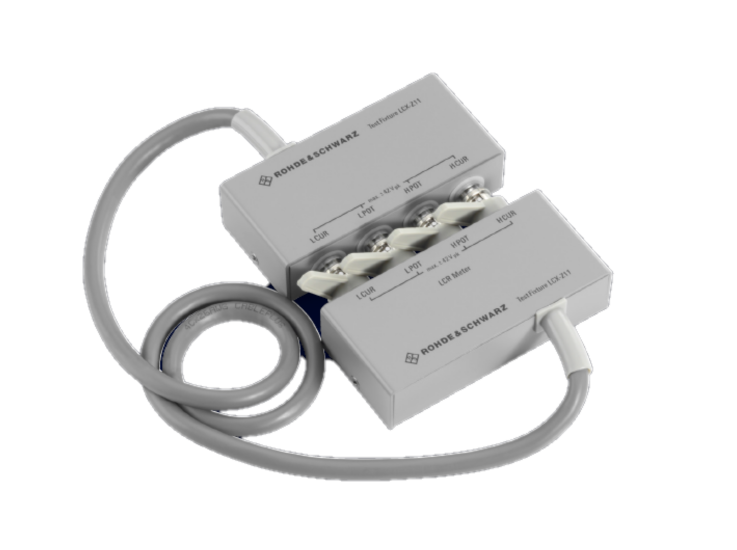

This 1 m long extension allows the test fixture to be used at a distance from the measuring instrument. The effect of the cables is compensated by the base unit.

Specifications
LCX LCR Meter
Test Fixtures Overview
Features	Parameters
LCX-Z1 Test fixture for axial/radial lead type devices
Measurable Components	resistors, coils or capacitors with axial or radial connecting wires
Frequency Range	DC to 10 MHz
DC bias	0 V to 40 V
Weight	approx. 200 g
LCX-Z2 Kelvin clip lead
Measurable Components	resistors, coils or capacitors
Frequency Range	DC to 100 kHz
DC bias	0 V to 40 V
Weight	approx. 250 g
LCX-Z3 Test fixture for SMD components
Measurable Components	SMD resistors, coils or capacitors
Frequency Range	DC to 10 MHz
DC bias	0 V to 40 V
Weight	approx. 325 g
LCX-Z4 Test tweezers for SMD components
Measurable Components	SMD resistors, coils or capacitors
Frequency Range	DC to 10 MHz
DC bias	0 V to 40 V
Weight	approx. 280 g
LCX-Z5 Transformer test cables
Measurable Components	transformers, transmitters
Frequency Range	DC to 100 kHz
DC bias	0 V to 40 V
Weight	approx. 260 g
LCX-Z11 BNC extension
Frequency Range	DC to 1 MHz
Length	1 m
Weight	approx. 300 g

Specifications
LCX LCR Meter
Model Overview
Model	Order Number	Description
Base Unit
LCX100	3629.8856.02	LCR meter, 300 kHz
LCX200	3629.8856.03	LCR meter, 500 kHz
Options
LCX-K106	3630.1922.03	Advanced analysis functions
LCX-K107	3660.7741.03	Digital I/O ports and binning function
LCX-K108	3692.9791.03	Extended bias functions
LCX-K201	3630.1880.03	Frequency upgrade to 1 MHz, for R&S®LCX200
LCX-K210	3630.1900.03	Frequency upgrade to 10 MHz, for R&S®LCX200
NG-B105	5601.6000.02	IEEE-488 (GPIB) interface, for R&S®NGP/LCX
Test Fixtures
LCX-Z1	3639.2296.02	Test fixture for axial/radial lead type devices
LCX-Z2	3638.6446.02	Kelvin clip lead
LCX-Z3	3639.2509.02	Test fixture for SMD components
LCX-Z4	3639.2515.02	Test tweezers for SMD components
LCX-Z5	3639.2521.02	Transformer test cables
LCX-Z11	3639.2538.02	BNC extension, length: 1 m
System Components
ZZA-GE23	5601.4059.02	19" rack adapter, 2 HU
