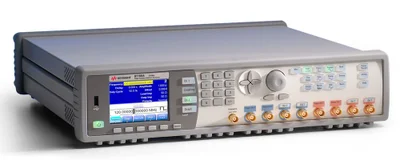

Keysight Technologies 81150A

Pulse Function Arbitrary Noise Generator; 240 MHz

Model

81150A

Product Family

Digital Design

Manufacturer

Keysight Technologies

Configured models contain the following attributes:

Digital DesignHigh-Speed ARBS2

Configurations

Key Specs

Product Overview

Resources

Let us help you with your exact configuration

Please use 'Get Quick Quote' and we’ll contact you and quote for your exact need.

You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.

Attribute	Value
Channel/Port Count	2

Product Overview

The Keysight 81150A pulse function arbitrary noise generator is a high-precision pulse generator enhanced with versatile signal generation, modulation, and distortion capabilities to stress your device to its limit.

Key Features

1µ - 120 MHz pulse generation with variable rise/fall time

1µ - 240 MHz sine waveform output

14-bit, 2 GSa/s arbitrary waveforms

512k samples deep arbitrary waveform memory per channel

Noise with a selectable crest factor and signal repetition time of 26 days

FM, AM, PW, PWM, FSK modulation capabilities up to 10 MHz

1 or 2 channel, coupled and uncoupled

Differential outputs

Benefits

Pulse generator guarantees reproducible tests with precise signals and unbeatable timing stability

Noise generator combines two required extremes: random noise and repeatable noise with very long repetition rates for simple problem identification

Function arbitrary generator provides versatile waveforms and modulation capabilities to adapt the signal to your device requirements

Arbitrary bit-shaped pattern generator (optional) allows ideal and distorted pattern up to 120 Mbit/s

Specifications
81150A Pulse Function Arbitrary Noise Generator
Feature	Parameter
Amplitude	50 mV to 5Vpp up entire frequency; 100 mV to 10Vpp up to 50 MHz
Data Capabilities	Yes
Frequency Range	240 MHz
Key Attributes	includes AFG & Noise Generator: 240 MHz sine waves; 2 GSa/s arbitrary waveforms; white Gaussian noise; 10 MHz modulation bandwidth. Differential output. Channel coupling, uncoupling & channel add. LXI Class C compliant. ISO 17025 & Z540 calibration
Number of Outputs	2, differential
Signal Type	pulse sine arbitrary ramp square noise

Specifications
Pulse Function Arbitrary Noise Generator
Model Overview
Model	Description
81150A	Pulse Function Arbitrary Noise Generator
Options
001	1-channel pulse function arbitrary noise generator
002	2-channel pulse function arbitrary noise generator
1A7	ISO17025 calibration documents
Z54	Z540.3 calibration documents
PAT	License for 120 Mbit/s pattern generator
Included Accessories	Certificate of calibration Local power cord USB cable Product CD (User Guide, Getting Started Guide, IVI-COM driver, examples for remote access)
