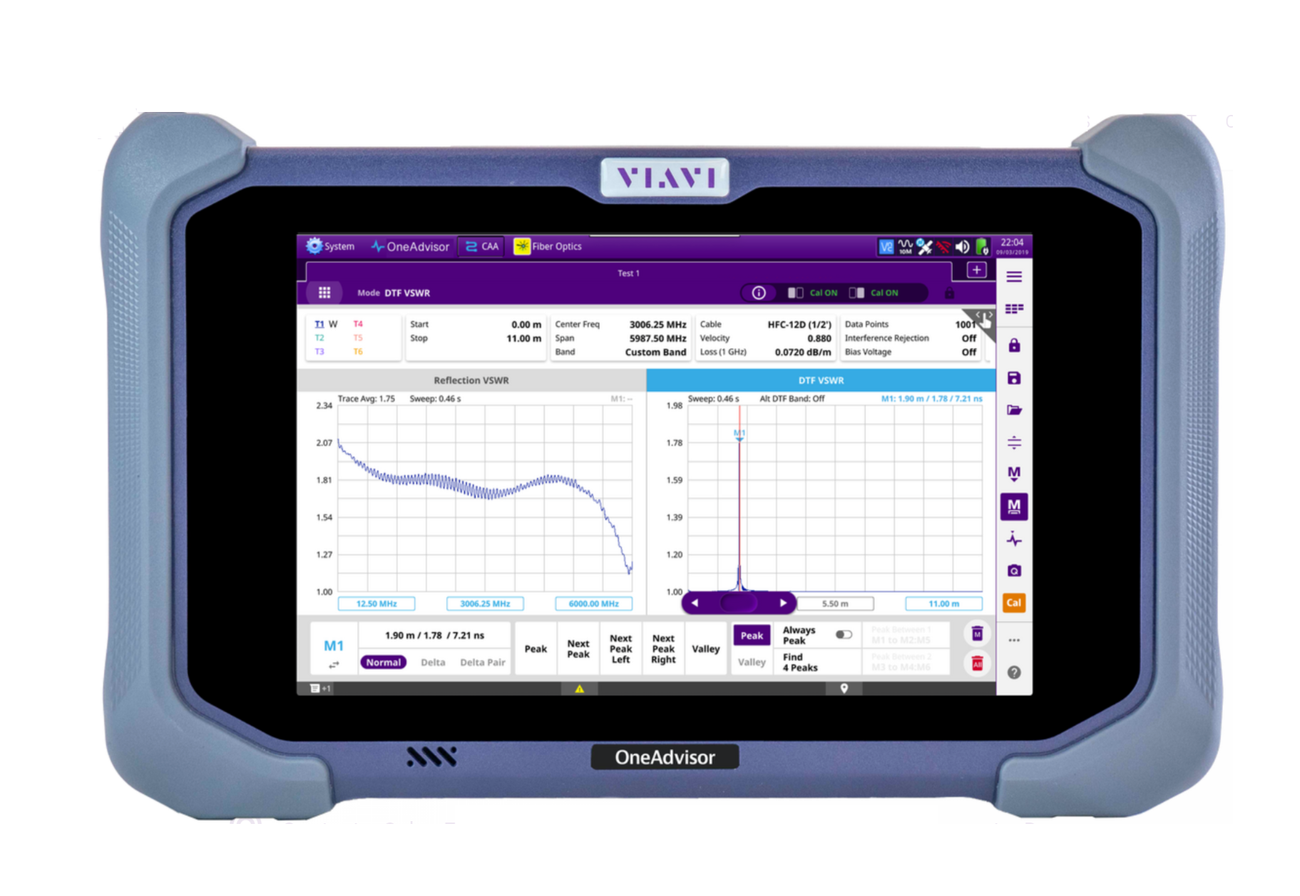

Viavi ONA800A-SPO-A
OneAdvisor Realtime Spectrum Analyzer; 9 kHz to 6 GHz
Model
ONA800A-SPO-AProduct Family
CableManufacturer
ViaviConfigured models contain the following attributes:
CableAntenna & PIM AnalyzersSite Masters / Cable TestersConfigurations
Key Specs
Product Overview
Resources
Let us help you with your exact configuration
Please use 'Get Quick Quote' and we’ll contact you and quote for your exact need.
You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.
Key Specs
Please refer to the Resources section for Datasheets or see the Product Overview.
If you would like to know more, please get in touch and one of our team will be happy to help.
Product Overview
The VIAVI OneAdvisor-800 is designed to meet the evolving needs of service providers, field technicians and contractors as they scale 5G infrastructure. OneAdvisor-800 allows cell site technicians to test fiber, RF, and CPRI/Ethernet from a single instrument, replacing multiple independent tools (OTDR, CAA, Fiber Scope) and significantly reducing the total cost of ownership.
The instrument’s workflow user interface carefully guides technicians through a pre-configured common test process, making sure that technicians complete the job in the same way and to the same specifications. With OneAdvisor-800, tower hands get built-in guidance, automatic test configuration, pass/fail results, and a single closeout report every time, at every site.
The VIAVI OneAdvisor-800 is the first test tool designed to address the challenges of a modern cell-site technician. By rolling all the key cell-site test capability into one portable tester and combining it with easy-touse test process and reporting automation, VIAVI has equipped mobile service providers, tower companies, and contractors to meet the work-speed and test coverage requirements for 5G buildouts and LTE maintenance.
| Key Features |
| Compact and highly integrated Cell site installation tool with two modular bays for 4100 series OTDR and 6 GHz CAA modules |
| Detachable 9kHz to 6GHz Spectrum module with built-in optical hardware for RFoCPRI Interference Analyzer. |
| Job Manager for workflow automation for seamless job between optical and coaxial– Enabled by cloud base StrataSync service |
| SAA (Smart Access Anywhere) for Remote Access and couching |
| Benefits | |
| Improved Tool Efficiency | Replaces multiple independent tools (i.e. OTDR, CAA, Fiber scope, etc). |
| Broad Coverage | Covers all radios types (LTE and 5G) and topologies (Macro-cell, Small-cell, C-RAN, and/or DAS) |
| Scalable | As a team’s test responsibility grows, so can the OneAdvisor platform with modular test components |
| Greater Accuracy | Complete test plans exactly to the specifications of the service provider with precise measurements. |
| Consistency | Test processes and workflows are defined centrally and “pushed” to test instruments, eliminating the variability of manual procedures and drives consistent, repeatable results, regardless of technician skill or experience level. |
| Lower Training Costs | Training focus shifts to the test process itself, which is faster and easier to learn, rather than on technical information that is generally time-consuming and overwhelming for new technicians. |
| Speed | Job Manager eliminates wasted technician time trying to remember which tests to run and how to run them |
| Specifications | |
| OneAdvisor-800 | |
| Ordering Information | |
| Model/Part Number | Description |
| ONA-800A* | OneAdvisor package |
| Package/Bundles | |
| ONA800A-CAA-OTDR-DBA | OneAdvisor Demo Bundle with Accessories - CAA-BiasT OTDR-SM |
| ONA800A-CAA-ATT-CFL | OneAdvisor Bundle 1 - CAA - Accessories - FOR ATT ONLY |
| ONA800A-CAA | OneAdvisor Bundle 2 - CAA |
| ONA800A-CAA-A | OneAdvisor Bundle 3 - CAA - Accessories |
| ONA800A-OSM | OneAdvisor Bundle 4 - OTDR SM |
| ONA800A-OSM-A | OneAdvisor Bundle 5 - OTDR SM - FiberChek - Accessories |
| ONA800A-C-OSM | OneAdvisor Bundle 6 - CAA - OTDR SM |
| ONA800A-C-OSM-A | OneAdvisor Bundle 7 - CAA - OTDR SM - FiberChek - Accessories |
| ONA800A-C-OSM-A-V | OneAdvisor Bundle 8 - CAA - OTDR SM - FiberChek - Accessories - RFVision |
| ONA800A-CAA-OQ | OneAdvisor Bundle 9 - CAA - OTDR Quad |
| ONA800A-C-OQ-A | OneAdvisor Bundle 10 - CAA - OTDR Quad - FiberChek - Accessories |
| ONA800A-C-OQ-A-V | OneAdvisor Bundle 11 - CAA - OTDR Quad - FiberChek - Accessories - RFVision |
| ONA800A-SPCP | OneAdvisor Bundle 12 - SpecAn GSS RM IntAn RtSA RFoCPRI |
| ONA800A-SPCPCA | OneAdvisor Bundle 13 - SpecAn GSS RM IntAn RtSA RFoCPRI - CAA |
| ONA800A-SPCPCAOS | OneAdvisor Bundle 14 - SpecAn GSS RM IntAn RtSA RFoCPRI - CAA - OTDR SM |
| ONA800A-SPO-A | OneAdvisor Bundle 15 - SpecAn GSS RM IntAn RtSA with RF Antennas |
Note:
*Including OneAdvisor Mainframe, Display, AC/DC Adapter, Li-Ion Battery, and Soft Carrying case. Recommended for CAA06MB module only
