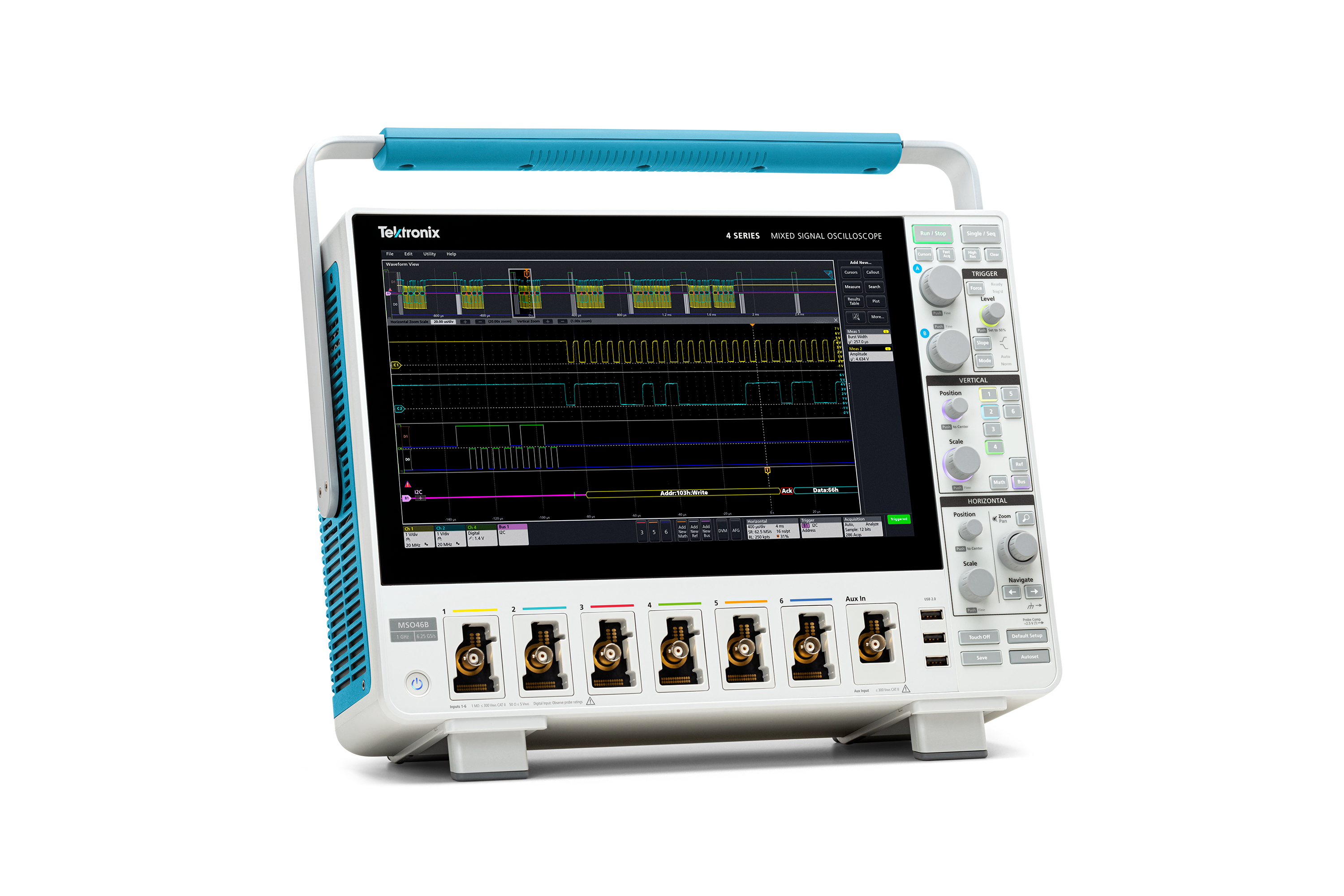

The new “B” version features a significantly faster processor system that speeds analysis and makes controls 2X more responsive. The 4 Series B offers 4 or 6 analog channels. In addition to analog waveform measurements, each channel can be used for spectrum analysis or equipped with an 8-channel logic probe. It is available with a built-in function generator, support for over 25 serial protocols and power analysis packages.

Key Benefits

• Faster processor
• Intuitive user interface
• Quick and easy analysis tools
• Decoders available for over 25 serial protocols
• Wide range of available probes

Specifications

• Analog Channels: 4 or 6
• Bandwidth: 200 MHz / 350 MHz / 500 MHz / 1 GHz / 1.5 GHz
• Sampling Rate: 6.25 GS/s on all channels
• Record Length: 31.25 Mpoints per channel, 62.5 Mpoints optional
• Display Type: 13.3-inch TFT color; full HD (1920 x 1080) resolution; capacitive (multi-touch) touchscreen
• Resolution: 12-bit; up to 16-bit in hi-resolution mode
• Interfaces: Two USB 3.0 and three USB 2.0 ports, one USB device port, and one Ethernet

Applications

• Analog signal chain
• Embedded systems
• Motor drives and controls
• Power management
• Power supplies

Dimensions

Height

• 11.3 in (287mm)

Width

• 15.9 in (405 mm)

Depth

• 6.1 in (265 mm)

Weight

• 16.8 lbs. (7.6 kg)
