Configured models contain the following attributes:
Power Supplies / Electronic LoadsDC Power Supplies- ModularNot Applicable600W11Please use 'Get Quick Quote' or ‘Configure Unit’ and we’ll contact you and quote for your exact need.
You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.
Attribute | Value |
---|---|
Maximum Current | Not Applicable |
Maximum Power | 600W |
Channel/Port Count | 1 |
Phases | 1 |
The N6705C DC Power Analyzer provides unrivaled productivity gains for sourcing and measuring DC voltage and current into the DUT.
The N6705C DC Power Analyzer provides unrivaled productivity gains for sourcing and measuring DC voltage and current into the DUT by integrating up to 4 advanced power supplies with DMM, Scope, Arb, and Data Logger features. The N6705C eliminates the need to gather multiple pieces of equipment and create complex test setups including transducers (such as current probes and shunts) to measure current into your DUT.
The DC Power Analyzer also eliminates the need to develop and debug programs to control a collection of instruments and take useful measurements because all functions and measurements are available at the front panel. For even greater control and analysis functions, the DC Power Analyzer can be used with the 14585A Control and Analysis Software. When automated bench setups are required, the N6705C is fully programmable over GPIB, USB, LAN and is LXI Compliant.
The N6705C offers flexible configuration to meet your power sourcing and analysis requirements. The N6705C is a 4-slot mainframe that accepts up to 4 DC Power Modules, and up to 600 W total DC Power Module output power. The modules are ordered separately.
N6705C accepts the same modules as N6700 Modular Power System, with over 30 modules to choose from. Basic sources for the N6705C include: 50 W, 100 W, and 300 W; up to 150 V, up to 50 A. High-performance sources for the N6705C include: 50 W, 100 W, 300 W, and 500 W; up to 60 V, up to 50 A. Precision sources for the N6705C include: 50 W, 100 W, 300 W, and 500 W; up to 60 V, up to 50 A. Source/Measure units for the N6705C include: 20 W; up to 20 V, up to 3 A. Each module includes built-in voltmeter, ammeter, scope, arbitrary waveform generator, and data logger functions.
Key Features |
Choose from 400, 600, or 1200 W mainframe |
Modular solution with 1U low-profile |
Up to four outputs per mainframe |
Mix and match module power and performance levels |
Choose modules from three levels of performance |
Sink current with DC electronic load modules |
Fast command processing and settling times |
Interfaces available — LAN (LXI Core), USB, GPIB |
Specifications | |
N6700 Series Mainframes | |
Model Overview | |
Model | Description |
N6700C | Low-profile modular power system mainframe, 400 W. Holds 1 to 4 modules. |
N6701C | Low-profile modular power system mainframe, 600 W. Holds 1 to 4 modules. |
N6702C | Low-profile modular power system mainframe, 1200 W. Holds 1 to 4 modules. |
N6705C | DC Power Analyzer Mainframe 600W. Holds 1 to 4 modules. |
Options to the N6710C, N6711C and N6712C Systems | |
N6705U-056 | 14585A Control & Analysis Software Upgrade FOR N6705C |
N6708A | Filler panel kit Required when you have less than 4 modules in a mainframe. Each filler kit contains 3 filler panels. |
N6709C | Rack mount kit Required for rack mounting. Standard rack mount hardware will not work.N6708A |
Specifications | |
N6700 Series DC Power Modules and Electronic Loads | |
Model Overview | |
Model | Description |
N6730 50W DC Power Modules | |
N6731B | DC Power Module; 5V / 10A / 50W |
N6732B | DC Power Module; 8V / 6.25A / 50W |
N6733B | DC Power Module; 20V / 2.5A / 50W |
N6734B | DC Power Module; 35V / 1.5A / 50W |
N6735B | DC Power Module; 60V / 0.8A / 50W |
N6736B | DC Power Module; 100V / 0.5A / 50W |
N6740 100W DC Power Modules | |
N6741B | DC Power Module; 5V / 20A / 100W |
N6742B | DC Power Module; 8V / 12.5A / 100W |
N6743B | DC Power Module; 20V / 5A / 100W |
N6744B | DC Power Module; 35V / 3A / 100W |
N6745B | DC Power Module; 60V / 1.6A / 100W |
N6746B | DC Power Module; 100V / 1A / 100W |
N6750 High Performance, Auto Ranging DC Power Modules | |
N6751A | Autoranging DC Power Module; 50V / 5A / 50W |
N6752A | Autoranging DC Power Module; 50V / 10A / 100W |
N6753A | Autoranging DC Power Module; 20V / 50A / 300W Occupies 2 of 4 mainframe slots |
N6754A | Autoranging DC Power Module; 60V / 20A / 300W Occupies 2 of 4 mainframe slots |
N6755A | Autoranging DC Power Module; 20V / 50A / 500W Occupies 2 of 4 mainframe slots |
N6756A | Autoranging DC Power Module; 60V / 17A / 500W Occupies 2 of 4 mainframe slots |
N6760 Precision DC Modules | |
N6761A ¹ | Precision DC Power Module; 50V / 1.5A / 50W |
N6762A ¹ | Precision DC Power Module; 50V / 3A / 100W |
N6763A ¹ | Precision DC Power Module; 20V / 50A / 300W Occupies 2 of 4 mainframe slots |
N6764A ¹ | Precision DC Power Module; 60V / 20A / 300W Occupies 2 of 4 mainframe slots |
N6765A ¹ | Precision DC Power Module; 20V / 50A / 500W Occupies 2 of 4 mainframe slots |
N6766A ¹ | Precision DC Power Module; 60V / 17A / 500W Occupies 2 of 4 mainframe slots |
N6770 300W DC Power Modules | |
N6773A | DC Power Module; 20V / 15A / 300W |
N6774A | DC Power Module; 35V / 8.5A / 300W |
N6775A | DC Power Module; 60V / 5A / 300W |
N6776A | DC Power Module 100V / 3A / 300W |
N6777A | DC Power Module; 150V / 2A / 300W |
N6780 ~80 W Application Specific Modules | |
N6781A ¹ | 20V, ± 3A, 20W source/measure unit |
N6782A ¹ | 20V, ± 3A, 20W source/measure unit |
N6783A-BAT ² | 8V, 3A, 24W battery charge/discharge module |
N6783A-MFG ² | 6V, 3A, 18W mobile communications module |

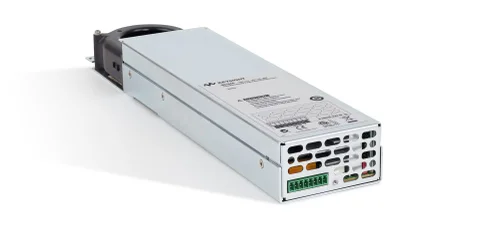

N6784A ¹ | ± 20V, ± 3A, 20W source/measure unit |
N6785A ¹ | 20V, +/-8A, 80W source/measure unit |
N6786A ¹ | 20V, +/-8A, 80W source/measure unit |
N6790 Electronic Load | |
N6791A | DC Electronic Load Module; 60V / 20A / 100W |
N6792A | DC Electronic Load Module; 60V / 40A / 200W |
Note:
¹ These power modules have multiple output and measurement ranges; values shown are for the highest range.
² These power modules have multiple measurement ranges; values shown are for the highest range.
