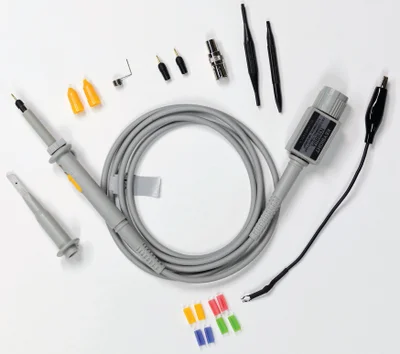

The Keysight N2889A low-cost passive probe provides up to 350 MHz bandwidth and features high-input resistance of 10 MΩ (@10:1 mode) to address a wide range of measurement needs with low probe loading. The N2889A comes with a convenient switch in the probe handle that lets you switch between a 1:1 and 10:1 attenuation ratio.
The probe can be adjusted for low-frequency compensation and high-frequency compensation. For the best measurements you should compensate your probe to match its characteristics to the oscilloscope.
| Specifications |
|
| N2889A Passive Probe |
|
| Features | Parameters |
| Bandwidth | DC to 350 MHz (@10:1), DC to 10 MHz (@1:1) |
| Risetime | 1 nsec (@10:1), 35 nsec (@1:1) (10%-90%) |
| Attenuation Ratio | 10:1/1:1 |
| Input Resistance | 10 MΩ (@10:1), 1 MΩ (@1:1 when terminated to 1MΩ) |
| Input Capacitance | 11 pF(@10:1), 60 pF (@1:1) |
| Maximum Input | 300 VRMS (or >400Vpk) CAT I/II (@10:1), 150 V RMS CAT I/II (@1:1) |
| Cable Length | 1.3 m |
| Probe ID Pin | No |
| Specifications |
|
|
|
|
|
| Switchable Passive Probes |
|
|
|
|
|
| Series Overview |
|
|
|
|
|
| Model | Bandwidth | Attenuation
Ratio
| Input
Impedance¹ ³
| Compensation
Range²
| Notes |
| N2142A | 6 MHz
70 MHz
| 1:1
10:1
| 1 MΩ // 100 pF +
10 MΩ // 15 pF +
| N/A
15 - 30 pF
| Low-cost 2-pack, recommended for InfiniiVision EDUX1000 X-Series |
| N2140A | 6 MHz
200 MHz
| 1:1
10:1
| 1 MΩ // 100 pF +
10 MΩ // 15 pF +
| N/A
15 - 30 pF
| Low-cost 2-pack, recommended for InfiniiVision EDUX1000 X-Series |
| N2889A | 10 MHz
350 MHz
| 1:1
10:1
| 1 MΩ // 60 pF +
10 MΩ // 11 pF +
| N/A
10 - 35 pF
| The most general-purpose passive probe |
Notes:
¹ Input impedance when terminated into oscilloscopes with 1-MΩ input terminations. For higher-bandwidth Infiniium oscilloscopes with 50-Ω input terminations only, the E2697A high impedance adapter can be purchased (includes 10073D 500-MHz passive probe) to provide a 1-MΩ input termination.
² For proper probe compensation (flatness), the oscilloscope’s input capacitance must be within the specified compensation range of the probe.
³ Capacitance at the probe tip of 1:1 probes is the specified probe capacitance plus the capacitance of the oscilloscope when terminated into 1-MΩ.
