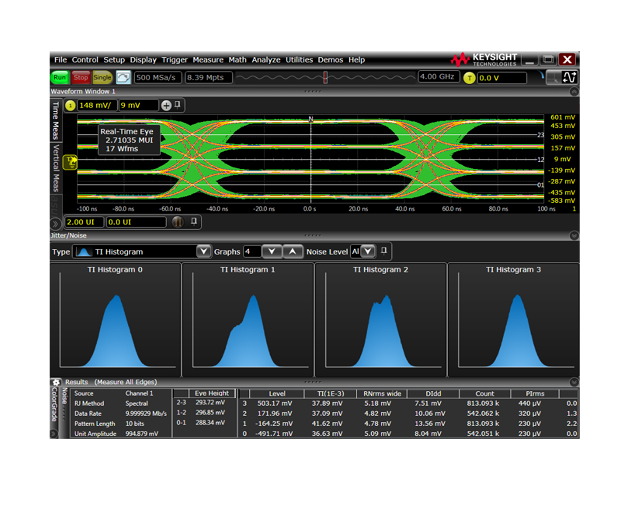

The Keysight D9120PAMA PAM-4 analysis software for Infiniium real-time oscilloscopes is designed to accurately and quickly characterize PAM-4 electrical signals described in IEEE 802.3bj Clause 94 and address future PAM measurement needs as outlined in developing standards such as OIF-CEI-56G and IEEE 400G.
Demand for increased network bandwidth in data centers continues to grow. Pulse Amplitude Modulation (PAM) is a multi-level signaling format that is enabling technology to help address this need. The switch from NRZ to PAM-4 is revolutionary, rather than evolutionary from 100G, presenting many new design and measurement challenges.
The switch from NRZ to PAM creates many new design and measurement challenges. D9110PAMA/D9120PAMA gives you analysis capabilities for today’s PAM systems, with the ability to grow as higher levels of PAM are introduced.
| Key Features |
|
| Electrical Signals | Eye width, eye height, eye skew
Level amplitude, level noise, level skew
Linearity measurements and more
|
| Powerful Analysis Features | PAM-4 equalizers (LFE, CTLE) using the Infiniium serial data equalization software
Embedding / de-embedding of channels using the InfiniiSim waveform transformation toolset for Infiniium oscilloscopes
Jitter and amplitude analysis on JP03 patterns using the EZJIT analysis software
|
| Flexible, Economical | PAM features integrated directly into the Infiniium graphical user interface (not a separate application)
Offline analysis on a PC using saved or simulated PAM-4 waveforms running Infiniium Offline analysis software bundle
|
| Compatibility | Infiniium real-time oscilloscopes running firmware 6.30 or later |
| Specifications |
|
D9110PAMA / D9120PAMA
PAM-N Analysis Software for Infiniium Oscilloscopes
|
|
| Model Overview |
|
| Model | Description / Compatibility |
| D9110PAMA | Infiniium 9000A, S-Series, EXR-Series
Infiniium MXR-Series
(Updates and Enhancements are available with a current Core Software subscription)
|
| D9120PAMA | Infiniium 90000, V-Series, Z-Series
Infiniium UXR-Series
(Updates and Enhancements are available with a current Core Software subscription)
|
Note:
To ensure you continue to receive all the latest software updates and enhancements on your MXR and UXR-Series scopes, you will need to have a current core software subscription. A node-locked perpetual core software license and a minimum 1-year updates and enhancements subscription is included with new MXR and UXR-Series scopes.
