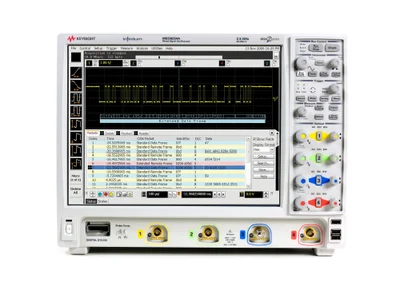

Keysight Technologies MSO9254A

Mixed Signal Oscilloscope; 4 Analog , 16 Digital Channels, 2.5 GHz,

Model

MSO9254A

Product Family

Oscilloscopes & Logic Analyzers

Manufacturer

Keysight Technologies

Configured models contain the following attributes:

Oscilloscopes & Logic AnalyzersOscilloscopes 1 - 3GHz2020 GS/s1GHz <= 10GHz

Configurations

Key Specs

Product Overview

Resources

Let us help you with your exact configuration

Please use 'Get Quick Quote' and we’ll contact you and quote for your exact need.

You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.

Key Specs

Indicates attributes available at part level. See Configurations tab for part detail.

Attribute	Value
Channel/Port Count	20
Maximum Sample/Data Rate	20 GS/s
High Frequency (range)	1GHz <= 10GHz

Product Overview

Key Features

2.5 GHz (upgradable)

4 analog plus 16 digital channels

Get 3 instruments in 1: scope, logic analyzer, and protocol analyzer

Capture more data with 20 Mpts per channel memory, upgradable to 1 Gpts

See more signal detail with 20 GSa/s sample rate and InfiniiScan advanced triggering

Expand your measurement capabilities with the widest range of compliance, protocol and analysis applications: serial protocol, FPGA dynamic probe, jitter analysis including EZJIT, MATLAB and more

Benefits
Oscilloscope:	Fast sample and update rates let you see a precise representation of your signal. Scope is packed with features and analysis capabilities.
Logic Analyzer:	Fast, deep-memory digital channels show critical data values and timing relationships
Protocol Analyzer:	World’s first scope-based protocol viewer with multi-tab viewing so you can quickly move between protocol and physical layers

Specifications
Features	Parameters
Bandwidth	2.5 GHz
Max Memory Depth	1 Gpts (2 channels), 20 Mpts (4 channels)
Max Sample Rate	20 GSa/s

Specifications
Model Overview
Model	Analog Bandwidth	Analog Sample Rate 4-Channel/2-Channel	Standard Memory 4-Channel/2-Channel	Scope Channels	Logic Channels
DSO9064A	600 MHz	5 GSa/s/10 GSa/s	20 Mpts/40 Mpts	4	-
MSO9064A	600 MHz	5 GSa/s/10 GSa/s	20 Mpts/40 Mpts	4	16
DSO9104A	1 GHz	10 GSa/s/20 GSa/s	20 Mpts/40 Mpts	4	-
MSO9104A	1 GHz	10 GSa/s/20 GSa/s	20 Mpts/40 Mpts	4	16
DSO9254A	2.5 GHz	10 GSa/s/20 GSa/s	20 Mpts/40 Mpts	4	-
MSO9254A	2.5 GHz	10 GSa/s/20 GSa/s	20 Mpts/40 Mpts	4	16
DSO9404A	4 GHz	10 GSa/s/20 GSa/s	20 Mpts/40 Mpts	4	-
MSO9404A	4 GHz	10 GSa/s/20 GSa/s	20 Mpts/40 Mpts	4	16
