Quick quote: Keysight Technologies MSOX2012A

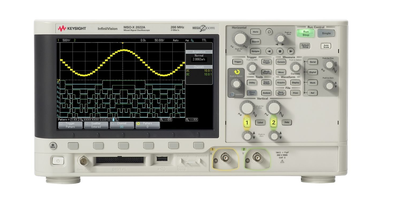

Keysight Technologies MSOX2012A
Mixed-Signal Digital Oscilloscope; 2+8 Channel, 100MHz
Model
MSOX2012AProduct Family
Oscilloscopes & Logic AnalyzersManufacturer
Keysight TechnologiesConfigured models contain the following attributes:
Oscilloscopes & Logic AnalyzersOscilloscopes < 1GHzConfigurations
Key Specs
Product Overview
Resources
Let us help you with your exact configuration
Please use 'Get Quick Quote' or ‘Configure Unit’ and we’ll contact you and quote for your exact need.
You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.
Key Specs
Please refer to the Resources section for Datasheets or see the Product Overview.
If you would like to know more, please get in touch and one of our team will be happy to help.
Product Overview
The InfiniiVision 2000 X-Series offers entry-level price points to fit your budget with superior performance and optional capabilities that are not available in any other oscilloscope in its class.
Sometimes you need a basic oscilloscope with a little more functionality — features like advanced waveform math, higher updates rates, or mixed signal capabilities. All of this is available in the InfiniiVision 2000 X-Series to enable you to perform deeper analysis in an entry-level oscilloscope.
| Key Features |
| PathWave BenchVue oscilloscope software for remote control, data logging, and automated testing |
| Achieve 70 MHz to 200 MHz of bandwidth |
| Teach your students how to use an oscilloscope with the Educator’s Oscilloscope Training Kit |
| View more signals at once with 8 digital channels in the mixed signal analysis option (MSO) |
| Simulate operations with standard advanced math functions |
| Isolate and analyze pulses, bursts, or infrequent glitches with segmented memory |
| Perform easy pass / fail analysis with mask testing |
| Specifications | ||||||
| InfiniiVision 2000 X-Series Oscilloscopes | ||||||
| Model Overview | ||||||
| Model | 2002A | 2004A | 2012A | 2014A | 2022A | 2024A |
Bandwidth* (–3 dB) | 70 MHz | 70 MHz | 100 MHz | 100 MHz | 200 MHz | 200 MHz |
Calculated Rise Time (10 to 90%) | ≤ 5 ns | ≤ 5 ns | ≤ 3.5 ns | ≤ 3.5 ns | ≤ 1.75 ns | ≤ 1.75 ns |
Input Channels DSOX MSOX | 2 2 + 8 | 4 4 + 8 | 2 2 + 8 | 4 4 + 8 | 2 2 + 8 | 4 4 + 8 |
| Maximum Sample Rate* | 2 GSa/s half-channel interleaved, 1 GSa/s per channel | 2 GSa/s half-channel interleaved, 1 GSa/s per channel | 2 GSa/s half-channel interleaved, 1 GSa/s per channel | 2 GSa/s half-channel interleaved, 1 GSa/s per channel | 2 GSa/s half-channel interleaved, 1 GSa/s per channel | 2 GSa/s half-channel interleaved, 1 GSa/s per channel |
| Maximum Memory Depth | 1M points per channel (standard) | 1M points per channel (standard) | 1M points per channel (standard) | 1M points per channel (standard) | 1M points per channel (standard) | 1M points per channel (standard) |
| Display Size and Type | 8.5-inch WVGA with 64 levels of intensity grading | 8.5-inch WVGA with 64 levels of intensity grading | 8.5-inch WVGA with 64 levels of intensity grading | 8.5-inch WVGA with 64 levels of intensity grading | 8.5-inch WVGA with 64 levels of intensity grading | 8.5-inch WVGA with 64 levels of intensity grading |
| Waveform Update Rate | 200,000 waveforms per second | 200,000 waveforms per second | 200,000 waveforms per second | 200,000 waveforms per second | 200,000 waveforms per second | 200,000 waveforms per second |
Note:
* Denotes warranted specifications, all others are typical. Specifications are valid after a 30-minute warm-up period and from ± 10 °C firmware calibration temperature.
| Specifications | ||||
| InfiniiVision X-Series Oscilloscopes | ||||
| Series Overview | ||||
| X-Series | InfiniiVision 1000 X-Series | InfiniiVision 2000 X-Series | InfiniiVision 3000T X-Series | InfiniiVision 4000 X-Series |
| Analog Channels | 2 and 4 | 2 and 4 | 2 and 4 | 2 and 4 |
Bandwidth (upgradable) | 50MHz 70MHz 100MHz 200MHz | 70MHz 100MHz 200MHz | 100MHz 200MHz 350MHz 500MHz 1 GHz | 200MHz 350MHz 500MHz 1 GHz 1.5 GHz |
| Digital Channels | External trigger can be used as a 3rd digital channel for 2 channel model | 8 (MSO models or upgrade) * | 16 (MSO models or upgrade) | 16 (MSO models or upgrade) |
| Maximum Sample Rate | 2 GSa/s | 2 GSa/s | 5 GSa/s | 5 GSa/s |
| Maximum Memory Depth | Up to 2 Mpts standard | 1 Mpt/channel | 4 Mpts | 4 Mpts |
| Waveform Update Rate | Up to 200,000 wfms/sec | > 200,000 wfms/sec | > 1,000,000 wfms/sec | > 1,000,000 wfms/sec |
| Display | 7-inch display | 8.5-inch display | 8.5-inch capacitive touch display | 12.1-inch capacitive touch display |
| Zone Touch Trigger | No | No | Standard | Standard |
| WaveGen 20-MHz Function/ Arbitrary Waveform Generator | Single-channel function only (standard on G models) | Single-channel function only (option) | Single-channel AWG (option) | Dual-channel AWG (option) |
Integrated Digital Voltmeter (standard) | Yes | Yes | Yes | Yes |
Integrated Hardware Counter (standard) | 5-digits | 5-digits | 5-digits 8-digits - totalizer | 5-digits |
| Serial Protocol Analysis | I²C, UART (standard on all models) SPI, CAN/LIN (standard on DSO models) | Yes (optional: CAN, LIN, I²C, SPI, RS232/UART) * | Yes (optional: ARINC 429 CAN/CANdbc/CAN-FD/LIN/LIN symbolic SENT FlexRay I²C I²S LIN MIL-STD-1553 SPI UART/RS232 CXPI Manchester/NRZ) | Yes (optional: ARINC 429 CAN/CAN-dbc/CANFD/LIN/LIN symbolic SENT FlexRay I²C I²S LIN MIL-STD-1553 SPI UART/RS232 USB 2.0, CXPI Manchester/NRZ) |
| Segmented Memory | Yes (standard on DSO model) | Standard | Standard | Standard |
| Mask/Limit Testing | Yes (standard on DSO model) | Yes (option) | Yes (option) | Yes (option) |
| Power Analysis | No | No | Yes (option) | Yes (option) |
| USB 2.0 Signal Quality Test | No | No | No | Yes (option) |
| HDTV Analysis | No | No | Yes (option) | Yes (option) |
| Advanced Waveform Math | No | Standard | Standard | Standard |
| Connectivity | Standard USB 2.0 LAN | Standard USB 2.0 (LAN/video option) (GPIB option) | Standard USB 2.0 (LAN/video option) (GPIB option) | Standard USB2.0 LAN video out (GPIB option) |
Note:
* The digital channels and serial protocol analysis cannot be used simultaneously on 2000 X-Series.
