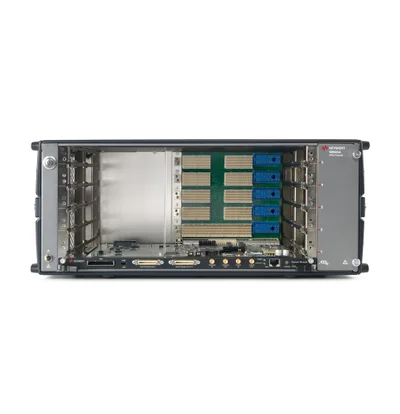

M9505A 5-slot AXIe chassis with embedded system module and Gen 2, x8 link to external controller.
The M9505A AXIe Chassis is fully compatible with the AXIe 1.0 specification. It includes an embedded system module (ESM) that does not take up an instrument slot. This system module performs the chassis management functions contained in the AXIe specification. Additionally, it provides PCI and LAN interfaces for connection to an external computer, external clock and trigger connectors, and Keysight-exclusive, inter-chassis synchronization connectors. The local bus implemented in the M9505A provides the maximum 62 pairs allowed by the AXIe specification. Combine the M9505A with the M9048A PCIe Desktop Adaptor to achieve the highest system bandwidth.
The instrument modules slots are arranged horizontally to minimize rack space. This arrangement combined with a high-performance cooling system allows the chassis to be racked in only 4U of space. The M9505A is also designed to be easily maintained as both the power supply and fan tray can be removed while the chassis remains in the rack.
Key Features |
|
Functionality | 5 slots for AXIe instrument modules
Embedded AXIe system module
High Power, 200W Cooling per slot
|
Performance Characteristics | Gigabit LAN connection to each module slot
Gen 2 PCIe x8 interface to system controller provide up to a 4 GB/s data rate from external controller
Gen 2 PCIe x4 links to each module slot (maximum 2 GB/s data rate)
|
Applications | Transportable applications (can also be rack-mounted) |
Specifications |
|
M9505A AXIe 5-Slot Chassis |
|
Feature | Parameter |
Bandwidth | Module-to-module: 2 GB/s System-to-backplane: 4 GB/s |
Connectivity | LAN PCIe |
Description | M9505A 5-slot AXIe chassis with embedded system module and Gen 2, x8 link to external controller. |
Form Factor | AXIe |
Height | 4U |
Slots | 5 |
Specifications |
|
2 and 5 Slot AXIe Chassis |
|
Model Overview |
|
Model | Description |
M9502A | AXIe chassis: 2-slot with embedded system |
M9505A | AXIe chassis: 5-slot with embedded system |
Options |
|
Opt 900-932 | Optional power cords |
Opt U20 | ESM USB 2.0 * Includes USB cable |
Note:
* USB port is only supported for a very limited set of Keysight AXIe modules
