HV Diagnostics TD-90

The TD90 instrument allows users to perform advanced diagnostics, not only on medium voltage cables, but also on transmission class cables to assess their condition in a non-destructive way. The TD90 can help verify the cable’s integrity, as well as, track cable insulation data over time. The Tan Delta unit sends information directly to a PC using wireless Bluetooth technology and includes software that can generate reports within minutes of completing a test.

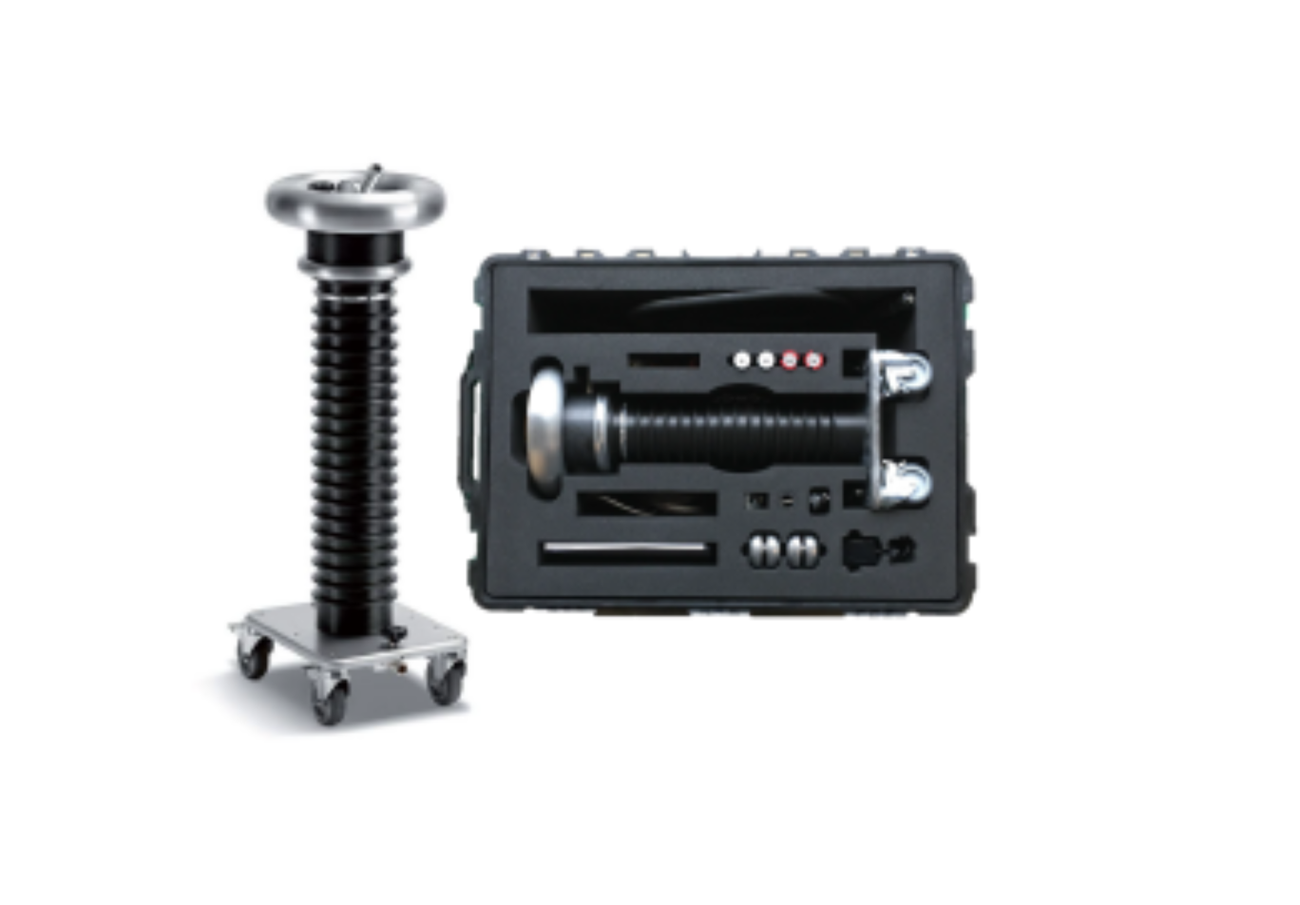

The TD90 system is used with the HVA90/HVA94 VLF test systems. The unit comes in custom cases for organization and transport. The unit is supplied with a host of accessories including corona protection, Blue tooth dongle, jumper cable, ground cable, C Type batteries, Battery Charger etc.

Key Features:

• Perform advanced diagnostics on MV Cables according to IEEE400 and 400.2
• Suitable for testing 69kV cables and below
• Wireless Bluetooth Connection
• Minimum connection hookups
• Accurate 1E-5 Resolution!
• Excellent, easy to use TD reporting
• Supplied with Free TD control center Software and FW upgrades
• Local LED indication for TD value range
• Leakage Current Guard Protection
• Sleep mode saves battery life
• Uses universal C-type batteries
• Supplied in rugged transport cases with all accessories.
