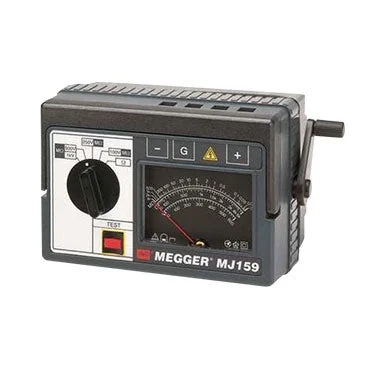

Megger MJ159

Hand-Cranked Insulation Tester

Model

MJ159

Product Family

Electrical & Power Quality

Manufacturer

Megger

Configured models contain the following attributes:

Electrical & Power QualityInsulation / Ground Testing

Configurations

Key Specs

Product Overview

Resources

Let us help you with your exact configuration

Please use 'Get Quick Quote' and we’ll contact you and quote for your exact need.

You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.

Product Overview

Portable, self-contained instruments designed to give rapid and accurate measurements. Four of the models feature an analog display having four selectable test voltages of 100, 250, 500 and 1000 V dc, measuring insulation resistance up to 2000 MΩ and an ohm range to 5000 ohms.

The other model has four test voltages of 50, 100, 250 and 500 V dc measuring insulation resistance up to 1000 MΩ.

Key Features

No scale multipliers

Multiple test voltages for spot and step voltage testing

Guard terminal to eliminate surface leakage current

Specifications
Major Megger Insulation Resistance Testers
Model Overview
Part Number	Description
212159	MJ159 Hand-cranked insulation tester
212359	MJ359 120 Va.c./hand-cranked insulation tester
Included Accessories
6172-113	User guide
6220-436	Test lead set (3 leads, 3 prods, 3 clips)
25970-002	Power cord (where applicable)
1010-850	Test record card (5 supplied)
6420-111	Carrying case
Optional Accessories
6111-216	Test record card (pack of 20)
6220-295	Black test lead with large alligator clip
6220-586	Red test lead with large alligator clip
6220-587	Green test lead with large alligator clip
6111-288	Set of test leads with fused prods (FPK5) 1000 V a.c. 500 mA fuse
210972	Test lead set, 3.6m [12 ft] (1 pair)
260565	Electrodes (for floor testing), 2.25 kg [5 lb] each (1 pair)
AVTM21-P8B	‘A Stitch In Time’
