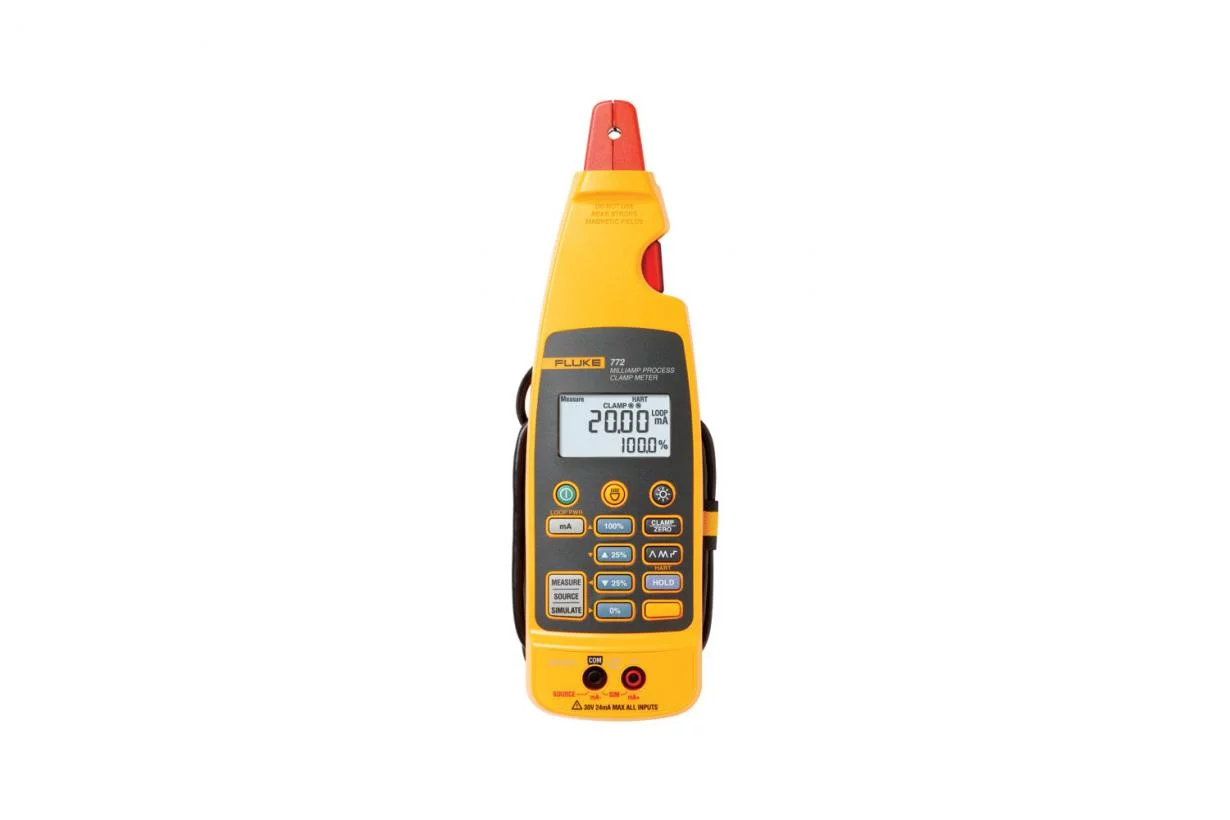

Fluke 772

Milliamp Process Clamp Loop Meter

型號

772

產品類別

Thermal

製造商

Fluke

配置型號包含以下特性:

ThermalTemperature Measurement & EnvironmentalProcess Instrumentation and Controls

配置

技术指标

產品總覽

資源

讓我們為您提供準確的配置

請使用“獲取快速報價”，我們將根據您的需求與您聯繫並報價。

您也可以選擇保持聯繫，我們會為您提供正確的應用和採購解決方案。

產品總覽

Fluke 772 Milliamp Clamp Loop Meter measures, sources, and simulates 4-20 mA signals for testing control system I/O or IPs.

The Fluke 772 loop meter adds to the basic capabilities of the Fluke 771 to save more time and expand its applications. With the 771, you'll also be able to: source and simulate 4-20 mA signals for testing control system I/O; measure 4-20 mA signals with in-circuit measurement; power a transmitter with the 24 V loop power supply; and automatically ramp and step change the 4-20 mA output for remote testing.

You'll be able to test 4–20 mA signals five times faster than with traditional DMMs, and without breaking the loop. That means you can troubleshoot a live device without having to power down, which can save you time, and help you avoid possibly missing something going on in the process.

Key Features

Simulates 4-20 mA signals for testing control system I/O

Sources 4 to 20 mA signals for testing control system I/O or I/Ps

Measures 4 to 20 mA signals with in-circuit measurement

Includes simultaneous mA in-circuit measurement with 24V loop power for powering and testing transmitters

Features a detachable clamp with extension cable for measurements in tight locations

Captures and displays changing measurements with Hold function

Offers mA output linear ramp or 25% step output

Extends battery life with auto-off and backlight timeout

Dual backlit display with both mA measurement and percent of 4 to 20 mA span

Measurement Spotlight to illuminate hard to see wires in dark enclosures

Measures 10 to 50 mA signals in older control systems using the 99.9 mA range

Automatically changes the 4 to 20 mA output for remote testing

Specifications
Fluke 772 Milliamp Process Clamp Loop Meter
Features	Parameters
Diameter of Measurable Conductor	0.177” or 4.5 mm max
Operating Temperature	-10 to 50ºC
Storage temperature	-25 to 60ºC
Operating Humidity	< 90% @ <30ºC < 75% @ 30 to 55ºC
Operating Altitude	0 to 2000 m
IP Rating	IP 40
Size	44 x 70 x 246 mm (2 7/8 x 5 ¾ x 11 5/8 in)
Weight	410 g (14.4 oz)
Vibration	Random 2 g, 5 to 500 Hz
Shock	1 meter drop test (except the jaw)
EMI/RFI	Meets EN61326-1 For current measurement w/ JAW, add 1mA to specification for EMC field strengths of 1V/m up to 3V/m.
Temperature Coefficient	0.01% ºC (< 18ºC or > 28ºC)
Power, Battery Life	(4) AA 1.5 V Alkaline IEC LR6 12 hours in mA source into 500 ohms
Warranty	Three years for electronics One year for cable and clamp assembly

Specifications
Fluke 77x Series
Model Overview
Model	Description
Fluke 771	Milliamp Process Clamp Meter Included Accessories: Soft Carrying Case Users Manual
Fluke 772	Milliamp Process Clamp Loop Meter Included Accessories: Four AA alkaline batteries (installed) Soft carrying case TL75 test leads AC 72 detachable clip TL 940 mini hook test leads Instruction sheet Hanging tool with hook and loop strap
Fluke 773	Milliamp Process Clamp Meter Included Accessories: Four AA alkaline batteries (installed) Soft carrying case TL75 test leads AC 72 detachable clip TL 940 mini hook test leads Instruction sheet Hanging tool with hook and loop strap
