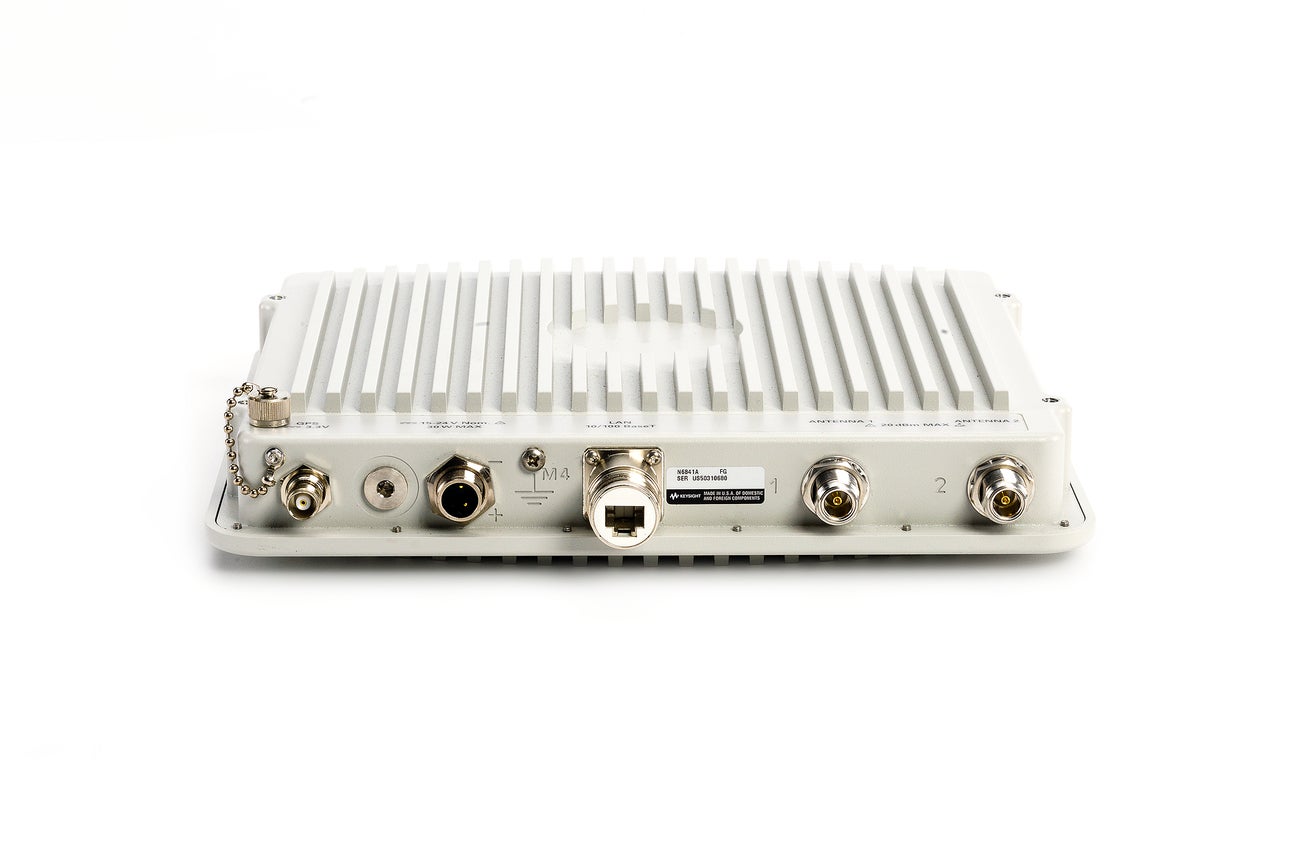

The Keysight Technologies, Inc. N6841A RF Sensor represents an entirely new concept in spectrum monitoring. Communication signals have evolved dramatically and continue to do so as new and emerging wireless standards are defined and deployed. These new generation signals are wider bandwidth, more complex, time variant and low power. Traditional methods of monitoring communication signals from outside the city limits, a crowded vehicle or walking with a handheld analyzer just don’t work well on these new standards or today’s interference problems.
Key Features |
Reduce operating costs with affordable spectrum monitoring and TDOA geolocation measurements |
Deploy fully capable RF monitoring stations faster with simple hardware and measurement-specific software |
24/7 real-time remote spectrum monitoring with Signal Surveyor 4D software |
Capture intermittent signals with spectrum analysis software |
Faster search and signal isolation with broad attenuation and wide dynamic range |
Locate narrow or wideband signals with geolocation software |
Specifications |
|
RF Sensor; 20MHz-6GHz |
|
Features | Parameters |
Standard Attenuator Range | 62 dB |
Standard Attenuator Step | 1 dB |
Real-Time Bandwidth Options | n/a |
DANL @1 GHz | -150.8 dBm |
Maximum Analysis Bandwidth | 20 MHz |
Phase Noise @1 GHz (1 MHz offset) | n/a |
Spur Free Dynamic Range | 75 dBc |
TOI @1 GHz (3rd Order Intercept) | >8.5 dBm |
Applications Available | Yes |
Maximum Real-Time Bandwidth | 20 MHz |
Overall Amplitude Accuracy | ± 2.0 dB |
Bandwidth Options | n/a |
Performance Level | ◆◆◆◇◇◇ |
Applications-General Purpose | Analog Demodulation
Field Strength Measurement
Spectrogram
|
Minimum Duration for 100% Probability of Intercept | 1 μs |
Applications with Frequency Mask Trigger | 89600 VSA Software |
Maximum Real-Time Bandwidth Options | n/a |
Specifications |
|
N6841A Options |
|
Model Number | Description |
N6841A-0B1 | Add DVD Media - Software and Manuals |
N6841A-GPS | Adds GPS capability, includes cable and active antenna |
N6841A-SP1 | Power supply for indoor use |
N6841A-MFP | Multiple DDCs, fixed, permanent |
N6841A-EFP | Embedded apps, fixed permanent |
N6841A-GEO | Enables use with RF Geolocation server software + Advanced geolocation software |
N6841A-CFP | Interface for downconverter/upconverter |
