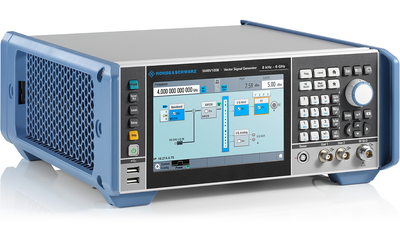

Rohde & Schwarz SMBV100B (1423.1003.02)

The state-of-the-art R&S SMBV100B vector signal generator sets new standards in its class. Ultra high output power, fully calibrated wideband signal generation and intuitive touchscreen operation make the R&S®SMBV100B ideal for all kinds of applications.

Always in line with the latest specifications of major digital communication standards like 5G NR, LTE and WLAN, the SMBV100B is the preferred test solution for receiver and component characterization.

The R&S SMBV100B can be equipped with a multitude of GNSS options turning the instrument into a reliable, full-featured GNSS simulator. With its advanced simulation capabilities, realistic and complex yet repeatable GNSS scenarios can be run under controlled conditions.

The R&S®SMBV100B exhibits very low SSB phase noise of < –134 dBc (measured) at 1 GHz and 20 kHz offset. The close-in SSB phase noise can be reduced using the R&S®SMBVB-B1 OCXO option. The option reduces the phase noise from < –37 dBc (1 Hz) at 1 GHz and 1 Hz offset by 13 dB to < –50 dBc (1 Hz). Using the R&S®SMBVB-B1H high performance OCXO option, the close-in SSB phase noise can be further reduced by more than 20 dB compared with the standard instrument specifications, resulting in a value of < –65 dBc (1 Hz).

Note:

* The base unit can only be ordered with an R&S®SMBVB-B103 frequency option
