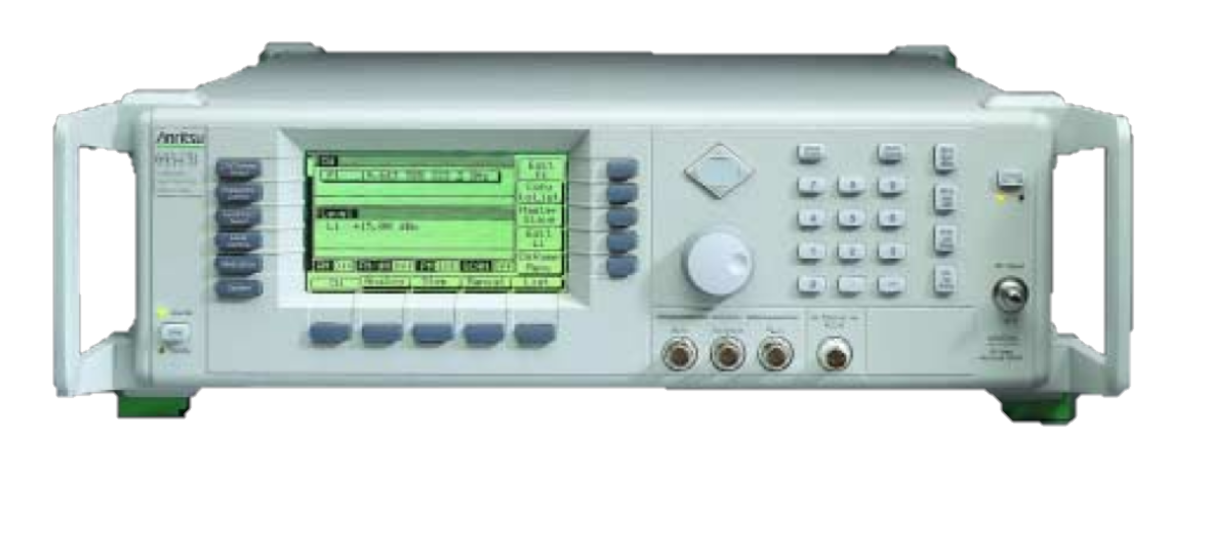

Anritsu 69047B

Synthesized CW Generator; (Ultra Low Noise), 10 MHz to 20 GHz

型號

69047B

產品類別

RF & Microwave Signal Generators

製造商

Anritsu

配置型號包含以下特性:

RF & Microwave Signal GeneratorsRF Generators 18-39 GHz

配置

技术指标

產品總覽

資源

選擇您的配置

顯示:

搜尋和整合選項，例如“C4000; M400”

Anritsu 69047B的可用選項

選項	說明
69047B/2A	110 dB Step Attenuator: Adds a 10 dB/step attenuator with 110 dB range for models having a high-end frequency of ≤26.5 GHz. Rated RF output power is reduced.
69047B/11	0.1 Hz Frequency Resolution: Provides frequency resolution of 0.1 Hz
69047B/15A	High Power Output (683xxC and 693xxB): Adds high-power RF components to the instrument in the 2−20 GHz frequency range
69047B/19	SCPI Programmability: Adds GPIB command mnemonics complying with Standard Commands for Programmable Instruments (SCPI), Version 1993.0. SCPI programming complies with IEEE 488.2–1987.

顯示中 1 - 1 的 1 結果

Ultra Low Noise Synthesized CW Generator (10 MHz to 20 GHz)

產品編號: P-245544

69047B/2A • 110 dB Step Attenuator: Adds a 10 dB/step attenuator with 110 dB range for models having a high-end frequency of ≤26.5 GHz. Rated RF output power is reduced.69047B/11 • 0.1 Hz Frequency Resolution: Provides frequency resolution of 0.1 Hz69047B/15A • High Power Output (683xxC and 693xxB): Adds high-power RF components to the instrument in the 2−20 GHz frequency range69047B/19 • SCPI Programmability: Adds GPIB command mnemonics complying with Standard Commands for Programmable Instruments (SCPI), Version 1993.0. SCPI programming complies with IEEE 488.2–1987.

租賃

查詢報價

報價

數量

周

開始日期

二手購置

查詢報價

查詢

電子郵件 +886 701 0152 200

其他購置方案

查詢我們的金融解決方案

顯示中 1 - 1 的 1 結果

* 價格及供應情況如有更改，恕不另行通知。所有價格可能因運輸條款、增值稅或銷售稅、進口關稅和匯率而有所不同。產品可能不是在所有地區都能買到。任何列出的折扣是基於全新儀器的售價並僅供參考;實際折扣可能會因選項、配置、貨幣匯率和其他因素而有所不同。保修期可能因儀器類別或特定產品而有差異。所有條款均需通過完整的書面報價確認。

¹ 對於我們的品質二手儀器，在發貨前需要進行23步認證檢查

產品總覽

The 69047B is a 20 GHz sweep generator from Anritsu. A signal generator is a device that creates electronic signals, repeating or non-repeating, in the digital or analog domains, depending on need. Signal generators design, test, troubleshoot, and repair electronic devices across many different industries and applications. There are several kinds of signal generators, including RF signal generators, sound frequency generators, function generators, and digital pattern generators.

Key Features

Ultra-low SSB phase noise; –107 dBc at 10 kHz offset from 10 GHz

0.1 Hz to 65 GHz frequency coverage in a single coaxial output

Waveguide extensions to 110 GHz

+17 dBm maximum power, –125 dBm minimum power

Internal AM, FM, øM, pulse modulation

User down-loaded arbitrary modulation

Specifications
Microwave/Millimeterwave Synthesizers
Model Overview
Model	Description
Synthesized CW Generators
69017B	0.01 to 8.4 GHz
69037B	2 to 20 GHz
69047B	0.01 to 20 GHz
69067B	0.01 to 40 GHz
69077B	0.01 to 50 GHz
69087B	0.01 to 60 GHz
69097B	0.01 to 65 GHz
68017C	0.01 to 8.4 GHz
68037C	2 to 20 GHz
68047C	0.01 to 20 GHz
68067C	0.01 to 40 GHz
68077C	0.01 to 50 GHz
68087C	0.01 to 60 GHz
68097C	0.01 to 65 GHz

Specifications
Microwave/Millimeterwave Synthesizers
Model Overview
Model	Description
Synthesized Signal Generators
69117B	0.01 to 8.4 GHz
69137B	2 to 20 GHz
69147B	0.01 to 20 GHz
69167B	0.01 to 40 GHz
69177B	0.01 to 50 GHz
69187B	0.01 to 60 GHz
69197B	0.01 to 65 GHz
68117C	0.01 to 8.4 GHz
68137C	2 to 20 GHz
68147C	0.01 to 20 GHz
68167C	0.01 to 40 GHz
68177C	0.01 to 50 GHz
68187C	0.01 to 60 GHz
68197C	0.01 to 65 GHz

Specifications
Microwave/Millimeterwave Synthesizers
Model Overview
Model	Description
Synthesized High Performance Signal Generators
69317B	0.01 to 8.4 GHz
69337B	2 to 20 GHz
69347B	0.01 to 20 GHz
69367B	0.01 to 40 GHz
69377B	0.01 to 50 GHz
69387B	0.01 to 60 GHz
69397B	0.01 to 65 GHz
68317C	0.01 to 8.4 GHz
68337C	2 to 20 GHz
68347C	0.01 to 20 GHz
68367C	0.01 to 40 GHz
68377C	0.01 to 50 GHz
68387C	0.01 to 60 GHz
68397C	0.01 to 65 GHz
