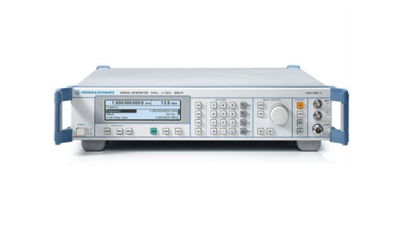

The new Signal Generator SML01 comes up with a variety of technical benefi ts. For example, it features a wear-free electronic attenuator guaranteeing short level setting times. Users in production and servicing, EMC testing and design alike will highly appreciate this feature. In frequency synthesis too, our engineers have taken new approaches and created a spectrally pure synthesizer with extremely short setting times previously only found in high-end equipment.
Key Features:
- 9 kHz to 1.1 GHz/2.2 GHz/3.3 GHz
- SSB phase noise: −128 dBc (1 Hz) (at f = 1 GHz, ∆f = 20 kHz)
- Setting times <10 ms
- High level accuracy (deviation <0.5 dB at levels >−120 dBm)
- High reliability through electronic attenuator
- Digital frequency and level sweep
- AM/FM/ϕM
- Optional pulse modulator with integrated pulse generator
- Optional stereo coder with analog and digital audio inputs
新型訊號產生器 SML01 具有多項技術優勢。例如,它採用無磨損電子衰減器,確保快速電平設定時間。生產、維修、EMC 測試和設計等領域的用戶將高度讚賞此功能。在頻率合成方面,工程師也採用了新方法,創造出具有極短設定時間的純譜合成器,這以前只有在高端設備中才能找到。
主要特點:
- 頻率範圍:9 kHz 至 1.1 GHz/2.2 GHz/3.3 GHz
- SSB 相位雜訊:-128 dBc (1 Hz) (在 f = 1 GHz, ∆f = 20 kHz)
- 設定時間 <10 ms
- 高電平精度(電平 > -120 dBm 時偏差 <0.5 dB)
- 電子衰減器確保高可靠性
- 數位頻率和電平掃描
- AM/FM/ϕM 調製
- 可選脈衝調製器,帶整合脈衝產生器
- 可選身歷聲編碼器,帶類比和數位音訊輸入
