Rohde & Schwarz ZVA8 (1145.1110.10)

選項	說明
ZVA-K4 (1164.1863.02)	Option: Mixer- and frequency converting measurements for ZVA and ZVT (software license)
ZVA-K5 (1311.3134.02)	Vector corrected mixer measurements (for R&S®ZVA, R&S®ZVT; R&S®ZVA/T-B16 and R&S®ZVA-K4 required) (software license)
ZVA-K6 (1164.1540.02)	True Differential Measurements for all 4-port ZVA and for ZVT with at least 3 ports (software license)
ZVA-K7 (1164.1511.02)	Measurements on pulsed signals pulse profile, recording time up to 3ms up to 30 MHz bandwidth for all ZVA and ZVT (software license). includes ZVA-K17 (1164.1070.02)
ZVA-K9 (1311.3128.02)	Measurement of group delay on frequency converters without LO access (for ZVA, ZVT; ZVA/T-B16 and ZVA-K4 required. 4-port ZVA or ZVT with 3 or more test ports recommended) (software license)
ZVA8-B16 (1164.0209.10)	Direct generator/receiver access for 4-port ZVA8
ZVA8-B21 (1164.0009.02)	Generator attenuator port 1 mechanical, 70 dB in 10-dB-steps, 8 GHz
ZVA8-B22 (1164.0015.02)	Generator attenuator port 2 mechanical, 70 dB in 10-dB-steps 8 GHz
ZVA8-B23 (1164.0021.02)	Generator attenuator port 3 mechanical, 70 dB in 10-dB-steps, 8 GHz
ZVA8-B24 (1164.0038.02)	Generator attenuator port 4 mechanical, 70 dB in 10-dB-steps 8 GHz
ZVA8-B31 (1164.0044.02)	Receiver attenuator port 1 mechanical, 35 dB in 5-dB-steps 8 GHz
ZVA8-B32 (1164.0050.02)	Receiver attenuator port 2 mechanical, 35 dB in 5-dB-steps 8 GHz
ZVA8-B33 (1164.0067.02)	Receiver attenuator port 3 mechanical, 35 dB in 5-dB-steps 8 GHz
ZVA8-B34 (1164.0073.02)	Receiver attenuator port 4 mechanical, 35 dB in 5-dB-steps 8 GHz
ZVAB-B4 (1164.1757.02)	Option: Oven quartz (OCXO) for ZVA, ZVB, ZVT
ZVAB-B18 (1164.0715.03)	Removable Flash Disk 4GB for ZVA/ZVB with controller unit FMR7/3 or FMR7/6 (factory installed only)
ZVAB-B18 (1164.0715.04)	Removable hard disk 500 GB (including firmware) for R&S®ZVA/ZVB with FMR7, FMR9, FMR11 factory installed only (hardware option)
ZVAB-B44 (1302.5544.02)	USB-IEC/IEEE Adapter and driver-SW (USB-Stick) for control of external generators
ZVAB-K2 (1164.1657.02)	Time domain (for ZVA, ZVB, ZVT) (software license)

特性	參數
High Frequency (range)	1GHz <= 10GHz
Low Frequency (range)	100kHz <= 1MHz

產品總覽

The ZVA series is an ideal choice for demanding measurements in the lab and in production – from filter measurements requiring maximum dynamic range to linear and nonlinear measurements on amplifiers and mixers as well as on receivers and transceivers.

Key Features

Linear and nonlinear amplifier and mixer measurements

Noise figure measurements

Pulse profile measurements with 12.5 ns resolution

True differential measurements for reliable characterization of active devices with balanced ports

Wide dynamic range typ. > 140 dB

High measurement speed < 3.5 µs per test point

Wide IF bandwidth: 1/5/30 MHz

Versatile calibration techniques: TOSM, TRL/LRL, TOM, TRM, TNA, UOSM

Automatic calibration units

Phase and group delay measurements on mixers with and without LO access

Benefits

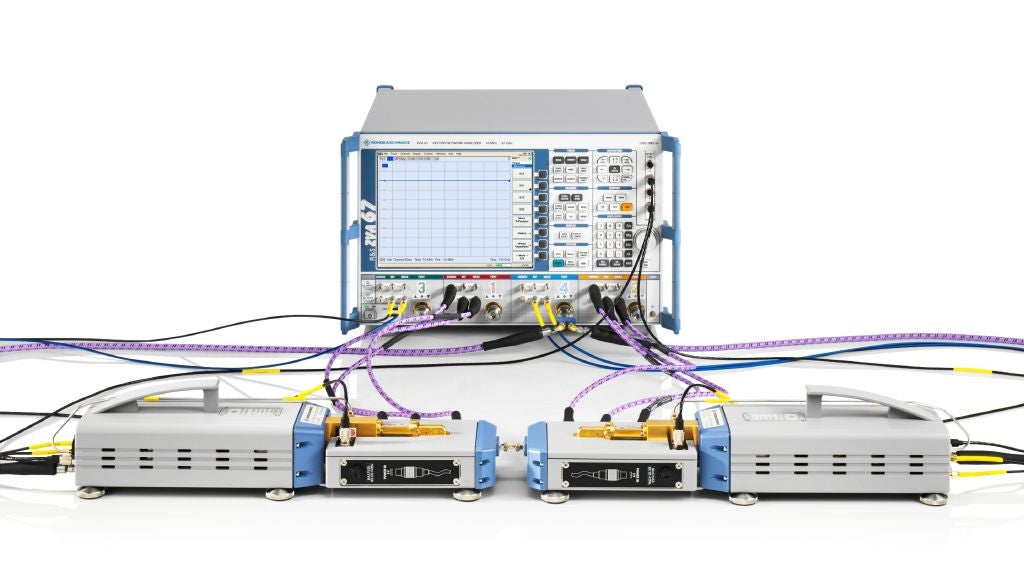

System Configuration Flexibility	The system can be re-configured, using the included ZVZ-Z110E frequency converters without the diplexers to set up a banded solution. Thus optimum performance is provided in the frequency range 75 GHz to 110GHz, with a WR10 wave guide connector flange
Basis for Banded Solutions	The ZVA110 can easily be reconfigured for banded solutions, combining the base unit ZVA67 with ZCxx and ZVA-Zxx mm wave converters (additional cable and adapters required)
Models for Individual system Integration	The ZVA110 models .03 and .13 (high power version) include all RF and control cables. However, some applications such as on Wafer installation, require RF cables with an individual length, provided by the user. To save unnecessary costs, the ZVA110 models .05 and .15 come without RF cables.
Get the Full Power of ZVA67	When operation the ZVA67 without the frequency extension equipment, the unrestricted performance of the base unit is available: Up to four internal sources are available for mixer, converter/receiver and TR-Module measurements, at maximum sensitivity, dynamic and power range. The source phase control supports true differential and multiple-path propagation testing. All ZVA67 options can be installed, and the feature range can be extended further in combination with the ZVAX-TRM67 extension unit.

Specifications
ZVA Vector Network Analyzer
Model Overview
Model	Order Number	Description
ZVA8	1145.1110.08	Vector Network Analyzer; 8 GHz, Two Ports
ZVA8	1145.1110.10	Vector Network Analyzer; 8 GHz, Four Ports
ZVA24	1145.1110.24	Vector Network Analyzer; 24 GHz, Two Ports
ZVA24	1145.1110.26	Vector Network Analyzer; 24 GHz, Four Ports, Two Sources
ZVA24	1145.1110.28	Vector Network Analyzer; 24 GHz, Four ports, Four sources
ZVA24-U5	1312.7710.28	Upgrade Vector Network Analyzer; 24 GHz, Four Ports, Two Sources to Four Sources
ZVA40	1145.1110.40	Vector Network Analyzer; 40 GHz, Two ports, 2.92 mm
ZVA40	1145.1110.42	Vector Network Analyzer; 40 GHz, Four Ports, 2.92 mm, Two Sources
ZVA40	1145.1110.48	Vector Network Analyzer; 40 GHz, Four Ports, 2.92 mm, Four Sources
ZVA40-U5	1312.7710.48	Upgrade Vector Network Analyzer; 40 GHz, Four Ports, Two Sources to Four Sources
ZVA40	1145.1110.43	Vector Network Analyzer; 40 GHz, Two Ports, 2.4 mm
ZVA40	1145.1110.45	Vector Network Analyzer; 40 GHz, Four Ports, 2.4 mm
ZVA50	1145.1110.50	Vector Network Analyzer; 50 GHz, Two Ports
ZVA50	1145.1110.52	Vector Network Analyzer; 50 GHz, Four Ports
ZVA67	1305.7002.02	Vector Network Analyzer; 67 GHz, Two Ports, Two Sources
ZVA67	1305.7002.04	Vector Network Analyzer; 67 GHz, Four Ports, Four Sources
ZVA110	1312.7004.03	Vector Network Analyzer; 110 GHz, Two Ports, 1.00 mm (m)
ZVA110	1312.7004.05	Vector Network Analyzer; 110 GHz, Two Ports, 1.00 mm (m) w/o RF Cables
ZVA110	1312.7004.13	Vector Network Analyzer; 110 GHz, Two Ports, 1.00 mm (m) High Power Model
ZVA110	1312.7004.15	Vector Network Analyzer; 110 GHz, Two Ports, 1.00 mm (m) High Power Model w/o RF Cables
