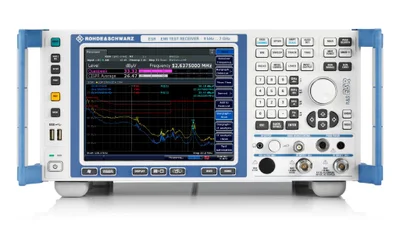

Rohde & Schwarz ESR7 (1316.3003.07)

EMI Test Receiver; 9 kHz to 7 GHz

型號

ESR7 (1316.3003.07)

產品類別

RF & Microwave Network Analyzers

製造商

Rohde & Schwarz

配置型號包含以下特性:

RF & Microwave Network AnalyzersEMC / EMI / RFI Analyzers1GHz <= 10GHz1kHz <= 100kHz

配置

技术指标

產品總覽

資源

選擇您的配置

顯示:

搜尋和整合選項，例如“C4000; M400”

Rohde & Schwarz ESR7 (1316.3003.07)的可用選項

選項	說明
ESR-B10 (1310.9551.03)	External generator control for R&S®ESR and R&S®ESRP
ESR-B29 (1316.3578.02)	10Hz frequency extension, incl. Decadal EMI bandwidths, retrofittable in the service center (software license)
ESR-B50 (1316.3584.02)	Domain Scan and real-time measurements (mandatory for R&S®ESR-K53/K55)
ESR-K53 (1316.3590.02)	Time-Domain-Scan, FFT based scan for fast EMI measurements, R&S®ESR-B50 required (software license)
ESR-K55 (1316.3603.02)	Real-Time analysis, for diagnosis measurements, R&S®ESR-B50 required (software license)
ESR-K56 (1316.3610.02)	IF analysis, IF spectrum display in parallel to the EMI measurement (software license)
FSV-B9 (1310.9545.02)	Tracking generator: for R&S®FSV7/13/30/40 (100 kHz-7 GHz); for R&S®ESR7 ( 9 kHz-7 GHz); for R&S®FSV3 (100 kHz-3,6 GHz); for R&S®ESR3 ( 9 kHz-3,6 GHz);
FSV-B22 (1310.9600.02)	RF Preamplifier 20 dB, 9 kHz to 7 GHz

顯示中 1 - 4 的 4 結果

EMI test receiver 9 kHz to 7 GHz for certification measurements, compliant to CISPR 16-1-1

產品編號: P-222337

ESR-B50 (1316.3584.02) • Domain Scan and real-time measurements (mandatory for R&S®ESR-K53/K55)ESR-K55 (1316.3603.02) • Real-Time analysis, for diagnosis measurements, R&S®ESR-B50 required (software license)FSV-B9 (1310.9545.02) • Tracking generator: for R&S®FSV7/13/30/40 (100 kHz-7 GHz); for R&S®ESR7 ( 9 kHz-7 GHz); for R&S®FSV3 (100 kHz-3,6 GHz); for R&S®ESR3 ( 9 kHz-3,6 GHz);ESR-K53 (1316.3590.02) • Time-Domain-Scan, FFT based scan for fast EMI measurements, R&S®ESR-B50 required (software license)

租賃

查詢報價

報價

數量

周

開始日期

二手購置

查詢報價

查詢

電子郵件 +886 701 0152 200

其他購置方案

查詢我們的金融解決方案

EMI test receiver 9 kHz to 7 GHz for certification measurements, compliant to CISPR 16-1-1

產品編號: P-221070

ESR-B50 (1316.3584.02) • Domain Scan and real-time measurements (mandatory for R&S®ESR-K53/K55)FSV-B9 (1310.9545.02) • Tracking generator: for R&S®FSV7/13/30/40 (100 kHz-7 GHz); for R&S®ESR7 ( 9 kHz-7 GHz); for R&S®FSV3 (100 kHz-3,6 GHz); for R&S®ESR3 ( 9 kHz-3,6 GHz);

租賃

查詢報價

報價

數量

周

開始日期

二手購置

查詢報價

查詢

電子郵件 +886 701 0152 200

其他購置方案

查詢我們的金融解決方案

EMI test receiver 9kHz to 7GHz

產品編號: P-644587

ESR-B29 (1316.3578.02) • 10Hz frequency extension, incl. Decadal EMI bandwidths, retrofittable in the service center (software license)FSV-B22 (1310.9600.02) • RF Preamplifier 20 dB, 9 kHz to 7 GHzESR-B50 (1316.3584.02) • Domain Scan and real-time measurements (mandatory for R&S®ESR-K53/K55)ESR-K55 (1316.3603.02) • Real-Time analysis, for diagnosis measurements, R&S®ESR-B50 required (software license)ESR-K53 (1316.3590.02) • Time-Domain-Scan, FFT based scan for fast EMI measurements, R&S®ESR-B50 required (software license)

租賃

查詢報價

報價

數量

周

開始日期

二手購置

查詢報價

查詢

電子郵件 +886 701 0152 200

其他購置方案

查詢我們的金融解決方案

EMI test receiver 9kHz to 7GHz

產品編號: P-384474

ESR-K53 (1316.3590.02) • Time-Domain-Scan, FFT based scan for fast EMI measurements, R&S®ESR-B50 required (software license)ESR-B50 (1316.3584.02) • Domain Scan and real-time measurements (mandatory for R&S®ESR-K53/K55)ESR-B29 (1316.3578.02) • 10Hz frequency extension, incl. Decadal EMI bandwidths, retrofittable in the service center (software license)

租賃

查詢報價

報價

數量

周

開始日期

二手購置

查詢報價

查詢

電子郵件 +886 701 0152 200

其他購置方案

查詢我們的金融解決方案

顯示中 1 - 4 的 4 結果

* 價格及供應情況如有更改，恕不另行通知。所有價格可能因運輸條款、增值稅或銷售稅、進口關稅和匯率而有所不同。產品可能不是在所有地區都能買到。任何列出的折扣是基於全新儀器的售價並僅供參考;實際折扣可能會因選項、配置、貨幣匯率和其他因素而有所不同。保修期可能因儀器類別或特定產品而有差異。所有條款均需通過完整的書面報價確認。

¹ 對於我們的品質二手儀器，在發貨前需要進行23步認證檢查

技术指标

在選擇附件時標明其特性，有關附件詳細資訊請參見“配置”選項。

特性	參數
High Frequency (range)	1GHz <= 10GHz
Low Frequency (range)	1kHz <= 100kHz

產品總覽

The ESR is an EMI test receiver build to measure electromagnetic disturbances using conventional stepped scans or ultrafast FFT based time domain scans. It also functions as a powerful signal and spectrum analyzer. The receiver features real-time spectrum analysis with a wide range of diagnostic tools for detailed analysis of disturbance signals and their history. With these tools, users can detect hidden or sporadic emissions and analyze their causes.

The ESR comes with intuitive menus on an easy to use touchscreen. Compact dimensions, low weight, optional ruggedized housing and optional DC power supply make the R&S®ESR an ideal choice also for mobile applications.

Key Features

Frequency ranges from 10 Hz to 3, 7 or 26.5 GHz

In line with CISPR 16-1-1, ANSI C63.2, MIL‑STD‑461 and FCC standards

High dynamic range and accuracy

Ultrafast measurements with FFT based time domain scan

Real-time spectrum analysis with 40 MHz bandwidth (option)

Specifications
ESR / EMI Test Receiver
Model Overview
Model	Order Number	Frequency Range	Measurement Bandwidth	Noise Indication	1db Compression Nominal @ 1 GHz	Residual Spurious Responses (1 MHz ≤ f ≤ 1 GHz)
ESR3	1316.3003.03	9 kHz to 3.6 GHz (optional 10 Hz)	10 Hz to 10 MHz 40 MHz in zerospan	< -7 dBµV	+10 dBm	< -103 dBm
ESR7	1316.3003.07	9 kHz to 7 GHz (optional 10 Hz)	10 Hz to 10 MHz 40 MHz in zerospan	< -7 dBµV	+10 dBm	< -103 dBm
ESR26	1316.3003.26	9 kHz to 26.5 GHz (optional 10 Hz)	10 Hz to 10 MHz 40 MHz in zerospan	< -5 dBµV	+10 dBm	< -103 dBm

Specifications
EMI Test Receiver
Model Overview
Model	Order Number	Description
ESR3	1316.3003.03	EMI Test Receiver
ESR7	1316.3003.07	EMI Test Receiver
ESR26	1316.3003.26	EMI Test Receiver
Options
ESR-B1	1316.4100.02	Impact Protection Retrofittable: Yes Remarks: User-Retrofittable
FSV-B4	1310.9522.02	OCXO Reference Frequency Retrofittable: Yes Remarks: User-Retrofittable
FSV-B4	1310.9522.03	OCXO Extended Frequency Stability Retrofittable: Yes Remarks: User-Retrofittable
FSV-B9	1310.9545.02	Tracking Generator (9 kHz to 7 GHz) Retrofittable: Yes Remarks: Retrofit in Service Center
ESR-B10	1310.9551.03	External Generator Control Retrofittable: Yes Remarks: Retrofit in Service Center
ESR-B18	1316.3555.18	Solid State Drive (SSD, removable hard drive) Retrofittable: Yes Remarks: User-Retrofittable
ESR-B19	1316.3561.18	Spare Hard Drive (removable hard drive) Retrofittable: Yes Remarks: User-Retrofittable
FSV-B22	1310.9600.02	RF Preamplifier (100 kHz to 7 GHz) Retrofittable: Yes Remarks: User-Retrofittable for ESR3 and ESR7 Only
ESR-B29	1316.3578.02	Frequency Extension 10 Hz and MIL bandwidths Retrofittable: Yes Remarks: User-Retrofittable
FSV-B30	1329.0243.02	DC Power Supply for 12 V/24 V supply voltage Retrofittable: Yes Remarks: User-Retrofittable
FSV-B32	1321.3750.04	Lithium-Ion Battery Pack Retrofittable: Yes Remarks: User-Retrofittable, requires FSV-B30 and FSV-B34
FSV-B34	1321.3950.02	Lithium-Ion Battery Charger
ESR-B50	1316.3584.02	Hardware for Time Domain and Real-Time Analysis Retrofittable: Yes Remarks: Retrofit in Service Center
Firmware/Software
ESR-K53	1316.3590.02	Time Domain Scan Remarks: Requires ESR-B50
ESR-K55	1316.3603.02	Real-Time Analysis Remarks: Requires ESR-B50
ESR-K56	1316.3610.02	IF Analysis
