快速報價: Keysight Technologies E3646A

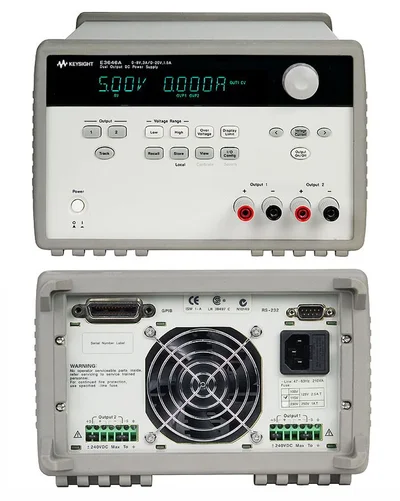

Keysight Technologies E3646A
DC Power Supply; Dual Output, 8 V, 3 A, or 20 V, 1.5 A, 60W
型號
E3646A產品類別
Power Supplies / Electronic Loads製造商
Keysight Technologies配置型號包含以下特性:
Power Supplies / Electronic LoadsDC Power Supplies <50V20V1.5A60W2配置
技术指标
產品總覽
資源
讓我們為您提供準確的配置
技术指标
在選擇附件時標明其特性， 有關附件詳細資訊請參見“配置”選項。
| 特性 | 參數 |
|---|---|
| Maximum Voltage | 20V |
| Maximum Current | 1.5A |
| Maximum Power | 60W |
| Channel/Port Count | 2 |
產品總覽
The E3640A Series bench power supply gives you outputs from 30 W to 100 W of power along with dual range flexibility. Each output has a low and high voltage range. The low voltage range allows the power supply to output more current. The series also has models with one and two outputs – tracking is turned on or off to allow the two outputs to operate independently or work as a pair.
The E3646A 60 W dual output bench power supply offers dual-range flexibility with a low and high voltage range. The low voltage range allows the power supply to output more current. The E3640 Series has models with single and dual outputs—automate tests with GPIB or RS232.
| Key Features |
| Low output noise with ripple and noise < 500 µVrms |
| Stable output, load regulation < 0.01% |
| Meter accuracy better than 0.05% |
| Store and recall up to five different operating states |
| Highly visible vacuum fluorescent display |
| One or two channels |
| Connectivity: RS232 and GPIB |
| Specifications | |
| E3646A Power Supply | |
| Feature | Parameter |
Output Ratings, Two Outputs (@ 0°C to 40°C) | Range 1: 0 to 8 V / 3 A Range 2: 0 to 20 V / 1.5 A |
Programming Accuracy (@ 25°C ±5°C), ±(% output + offset) | Voltage: < 0.05% + 10 mV (< 0.1% + 25 mV for output two of Keysight E3646A, E3647A, E3648A, E3649A) Current: < 0.2% + 10 mA |
| Ripple & Noise (20 Hz to 20 MHz) | Normal mode voltage: < 5 mVpp / 0.5 mVrms Normal mode current: < 4 mArms |
Readback Accuracy (@ 25°C ±5°C), ±(% output + offset) | Voltage: < 0.05% + 5 mV (< 0.1% + 25 mV for output two of E3646A, E3647A, E3648A, E3649A) Current: < 0.15% + 5 mA (< 0.15% + 10 mA for output two of E3646A, E3647A, E3648A, E3649A) |
| Specifications | ||||
E3640 Series Bench Power Supply | ||||
| Model Overview | ||||
| Model Number | E3646A | E3647A | E3648A | E3649A |
| Maximum Power | 60 W | 60 W | 100 W | 100 W |
| Number of Outputs | 2 | 2 | 2 | 2 |
DC Output Rating (@ 0 ºC to 40 ºC) | Two 0 to 8 V/3 A or 0 to 20 V/1.5 A | Two 0 to 35 V/0.8 A or 0 to 60 V/0.5 A | Two 0 to 8 V/5 A or 0 to 20 V/2.5 A | Two 0 to 35 V/1.4 A or 0 to 60 V/0.8 A |
| Net Weight | 8.2 kg | 8.0 kg | 9.2 kg | 9.1 kg |
| Dimensions (without bumper) | 212.8 mm (W) 133.0 mm (H) 348.3 mm (D) | 212.8 mm (W) 133.0 mm (H) 348.3 mm (D) | 212.8 mm (W) 133.0 mm (H) 348.3 mm (D) | 212.8 mm (W) 133.0 mm (H) 348.3 mm (D) |
| Specifications | ||||||
E3640 Series Bench Power Supply | ||||||
| Model Overview | ||||||
| Model Number | E3640A | E3641A | E3642A | E3643A | E3644A | E3645A |
| Maximum Power | 30 W | 30 W | 50 W | 50 W | 80 W | 80 W |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 | 1 |
DC Output Rating (@ 0 ºC to 40 ºC) | 0 to 8 V/3 A or 0 to 20 V/1.5 A | 0 to 35 V/0.8 A or 0 to 60 V/0.5 A | 0 to 8 V/5 A or 0 to 20 V/2.5 A | 0 to 35 V/1.4 A or 0 to 60 V/0.8 A | 0 to 8 V/8 A or 0 to 20 V/4 A | 0 to 35 V/2.2 A or 0 to 60 V/1.3 A |
| Net Weight | 5.3 kg | 5.2 kg | 6.3 kg | 6.2 kg | 6.6 kg | 6.7 kg |
Dimensions (without bumper) | 212.6 mm (W) 88.5 mm (H) 348.3 mm (D) | 212.6 mm (W) 88.5 mm (H) 348.3 mm (D) | 212.6 mm (W) 88.5 mm (H) 348.3 mm (D) | 212.6 mm (W) 88.5 mm (H) 348.3 mm (D) | 212.6 mm (W) 88.5 mm (H) 348.3 mm (D) | 212.6 mm (W) 88.5 mm (H) 348.3 mm (D) |
資源
文檔資料
Keysight E3640A – E3649A Programmable DC Power Supplies Data Sheet
