使用S96011A為高速資料應用執行增強的時域分析。它包括S96010A的所有功能(TDR/TDT模式)。此外，S96011A支援更詳細的測量和評估，如眼圖/掩模模式，無需添加PLTS軟體。抖動和加重/均衡功能可以類比真實世界的信號和環境。S96011A覆蓋高達53 GHz的頻寬。 可進行全面校準，自動糾偏功能可確保輕鬆消除夾具和探針的影響。為獲得最佳精度，請使用機械校準套件或帶DC選項的ECal(即帶0DC選項的N469xD或N4433D)。
Use S96011A to perform enhanced time domain analysis for high-speed data applications. It includes all functionality of the S96010A (TDR/TDT mode). In addition, the S96011A enables more detailed measurements and evaluations, such as eye diagram / mask modes, without adding PLTS software. Jitter and emphasis / equalization capabilities enable simulation of real-world signals and environment. The S96011A covers up to 53 GHz bandwidth.
Full calibration is available and the automatic deskew ensures easy removal of fixture and probe effects. To get the best accuracy, use mechanical calibration kits or ECal with DC option (i.e. N469xD or N4433D with Option 0DC).
| Key Features |
| Up to 53 GHz bandwidth with 8.42-psec rise time enables measurement on the latest high-speed serial standards |

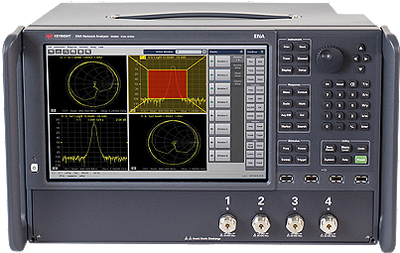

| Runs on the E5080B ENA with simple and intuitive operation |
| Unmatched performances: wide dynamic range (up to 140 dB) and low noise floor for accurate measurements |
| Fast measurement speed for real-time analysis |
| State-of-the art calibration techniques reduce measurement errors |
| Automatic deskew for easy removal of fixture and probe effects |
| Eye diagram analysis of high-speed digital interconnects |
