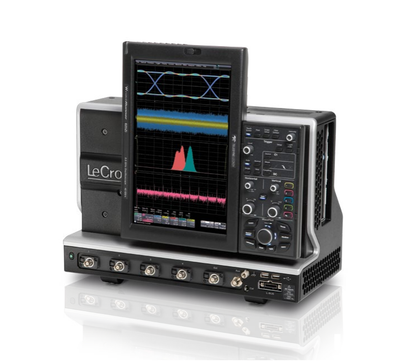

Teledyne LeCroy WaveRunner 6 ZI image.png

Lecroy WaveRunner 625Zi

WaveRunner 6 Zi Oscilloscope; 4 Channel, 10 GS/s, 16 Mpts/Ch, 400 MHz

型號

WaveRunner 625Zi

產品類別

Oscilloscopes & Logic Analyzers

製造商

Lecroy

配置型號包含以下特性:

Oscilloscopes & Logic AnalyzersOscilloscopes > 3GHz - < 8GHz

配置

技术指标

產品總覽

資源

讓我們為您提供準確的配置

請使用“獲取快速報價”，我們將根據您的需求與您聯繫並報價。

您也可以選擇保持聯繫，我們會為您提供正確的應用和採購解決方案。

產品總覽

The WaveRunner 6 Zi oscilloscope family features 400 MHz - 4 GHz of bandwidth, 40 GS/s sampling rate, exceptional signal fidelity, and fast operation, helping to get the job done quickly and accurately. The versatile toolset provides every necessity for an engineer to validate a design, debug errors at board bring up, and offer powerful analysis capabilities to characterize an embedded system. The WaveRunner 6 Zi is the ultimate debug machine.

Key Features

400 MHz - 4 GHz bandwidths

Up to 40 GS/s sample rate

12.1” touch screen display

Advanced Tools:

▪ Spectrum Analyzer Mode

▪ WaveScan – Search and Find

▪ LabNotebook Documentation and Report Generation

▪ History Mode - Waveform Playback

Comprehensive set of serial data analysis, debug, validation and compliance tools

Advanced Triggering with TriggerScan and Measurement Trigger

WaveRunner 620MZi complete debug bundle available

18 digital channels with 2 GS/s:

▪ Analog and Digital Cross-Pattern Triggering

▪ Digital Pattern Search and Find

▪ Analog and Digital Timing Measurements

▪ Logic Gate Emulation

▪ Activity Indicators

Benefits
Superior Validation, Debug, Analysis	The WaveRunner 6 Zi defines superiority in a test instrument with a powerful feature set including a wide range of application packages, advanced triggering to isolate events, a user interface developed for quick and easy navigation, a wide range of probing options, and lightning-fast performance.
Most Comprehensive Serial Data Analysis	WaveRunner 6 Zi offers the most tools for serial data analysis. With over 30 trigger, decode, and compliance solutions, WaveRunner 6 Zi can address problems with unique, powerful views and automated tools. The SDAII serial data analysis package performs eye diagram and jitter testing which is ideal for characterization and debug.
Excellent Signal Fidelity	The WaveRunner 6 Zi features a pristine signal path that offers unmatched signal fidelity with low noise, providing accuracy which can be counted on. This performance is augmented by a huge offset and timebase delay adjustment to allow easy signal and amplifier performance assessment and zooming on vertical and horizontal signal characteristics.
WaveRunner 620MZi	The WaveRunner 620MZi model includes some of the most commonly used options as part of the standard configuration, reducing confusion when choosing a powerful toolset for debugging. In addition to the versatile software options, it is equipped with 40 GS/s and 128 Mpts of memory to ensure common debug needs are covered.

Specifications
WaveRunner 6 Zi Series Oscilloscopes
Model Overview
Model	Description
WaveRunner 604Zi	400 MHz, 10 GS/s, 4 Ch, 16 Mpts/Ch DSO with 12.1" WXGA Color Display 50 Ω and 1 MΩ Input 20 GS/s and 32 Mpts/Ch in Interleaved Mode
WaveRunner 606Zi	600 MHz, 10 GS/s, 4 Ch, 16 Mpts/Ch DSO with 12.1" WXGA Color Display 50 Ω and 1 MΩ Input 20 GS/s and 32 Mpts/Ch in Interleaved Mode
WaveRunner 610Zi	1 GHz, 10 GS/s, 4 Ch, 16 Mpts/Ch DSO with 12.1" WXGA Color Display 50 Ω and 1 MΩ Input 20 GS/s and 32 Mpts/Ch in Interleaved Mode
WaveRunner 620Zi	2 GHz, 10 GS/s, 4 Ch, 16 Mpts/Ch DSO with 12.1" WXGA Color Display 50 Ω and 1 MΩ Input 20 GS/s and 32 Mpts/Ch in Interleaved Mode
WaveRunner 620MZi	2 GHz, 20 GS/s, 4 Ch, 64 Mpts/Ch DSO with 12.1” WXGA Color Display 50 Ω and 1 MΩ Input 20 GS/s and 128 Mpts/Ch in Interleaved Mode
WaveRunner 625Zi	2.5 GHz, 20 GS/s, 4 Ch, 16 Mpts/Ch DSO with 12.1" WXGA Color Display 50 Ω and 1 MΩ Input 40 GS/s and 32 Mpts/Ch in Interleaved Mode
WaveRunner 640Zi	4 GHz, 20 GS/s, 4 Ch, 16 Mpts/Ch DSO with 12.1" WXGA Color Display 50 Ω and 1 MΩ Input 40 GS/s and 32 Mpts/Ch in Interleaved Mode
Memory Options
WR604Zi-S-32	32 Mpts/Ch (64 Mpts/Ch Interleaved) Standard Memory. Includes 4 GB of RAM
WR606Zi-S-32	32 Mpts/Ch (64 Mpts/Ch Interleaved) Standard Memory. Includes 4 GB of RAM
WR610Zi-S-32	32 Mpts/Ch (64 Mpts/Ch Interleaved) Standard Memory. Includes 4 GB of RAM
WR620Zi-S-32	32 Mpts/Ch (64 Mpts/Ch Interleaved) Standard Memory. Includes 4 GB of RAM
WR625Zi-S-32	32 Mpts/Ch (64 Mpts/Ch Interleaved) Standard Memory. Includes 4 GB of RAM
WR640Zi-S-32	32 Mpts/Ch (64 Mpts/Ch Interleaved) Standard Memory. Includes 4 GB of RAM
WR604Zi-M-64	64 Mpts/Ch (128 Mpts/Ch Interleaved) Standard Memory. Includes 4 GB of RAM
WR606Zi-M-64	64 Mpts/Ch (128 Mpts/Ch Interleaved) Standard Memory. Includes 4 GB of RAM
WR610Zi-M-64	64 Mpts/Ch (128 Mpts/Ch Interleaved) Standard Memory. Includes 4 GB of RAM
WR620Zi-M-64	64 Mpts/Ch (128 Mpts/Ch Interleaved) Standard Memory. Includes 4 GB of RAM
WR625Zi-M-64	64 Mpts/Ch (128 Mpts/Ch Interleaved) Standard Memory. Includes 4 GB of RAM
WR640Zi-M-64	64 Mpts/Ch (128 Mpts/Ch Interleaved) Standard Memory. Includes 4 GB of RAM
