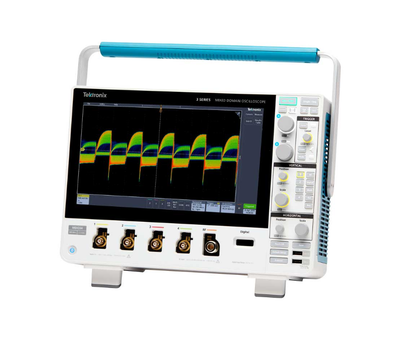

Tektronix MDO34

Mixed Domain Oscilloscope, 4-Channel

MDO34

Oscilloscopes & Logic Analyzers

Tektronix

配置型號包含以下特性:

Oscilloscopes & Logic AnalyzersOscilloscopes < 1GHz10MHz <= 100MHz100MHz <= 1GHz

配置

技术指标

產品總覽

資源

請使用“獲取快速報價”，我們將根據您的需求與您聯繫並報價。

您也可以選擇保持聯繫，我們會為您提供正確的應用和採購解決方案。

在選擇附件時標明其特性，有關附件詳細資訊請參見“配置”選項。

特性	參數
High Frequency (range)	10MHz <= 100MHz
High Frequency (range)	100MHz <= 1GHz

Key Performance Specifications:

Spectrum Analyzer Features:

Frequency range: 9 kHz - 1 GHz or 3 GHz
Ultra-wide capture bandwidth up to 3 GHz
Arbitrary Function Generator (optional)
- 13 predefined waveform types
- 50 MHz waveform generation
- 128 k arbitrary generator record length
- 250 MS/s arbitrary generator sample rate

Specifications
MDO32 and MDO34
Analog Channel Bandwidth	100 MHz	100 MHz	200 MHz	200 MHz	350 MHz	350 MHz	500 MHz	500 MHz	1 GHz	1 GHz
Analog Channels	2	4	2	4	2	4	2	4	2	4
Rise Time (typical, calculated) (10 mV/div setting with 50 Ω input termination)	3.5 ns	3.5 ns	2 ns	2 ns	1.14 ns	1.14 ns	800 ps	800 ps	400 ps	400 ps
Sample Rate (1 ch)	2.5 GS/s	2.5 GS/s	2.5 GS/s	2.5 GS/s	2.5 GS/s	2.5 GS/s	2.5 GS/s	2.5 GS/s	5 GS/s	5 GS/s
Sample Rate (2 ch)	2.5 GS/s	2.5 GS/s	2.5 GS/s	2.5 GS/s	2.5 GS/s	2.5 GS/s	2.5 GS/s	2.5 GS/s	5 GS/s	5 GS/s
Sample Rate (4 ch)	-	2.5 GS/s	-	2.5 GS/s	-	2.5 GS/s	-	2.5 GS/s	-	2.5 GS/s
Record Length (1 ch)	10 M	10 M	10 M	10 M	10 M	10 M	10 M	10 M	10 M	10 M
Record Length (2 ch)	10 M	10 M	10 M	10 M	10 M	10 M	10 M	10 M	10 M	10 M
Record Length (4 ch)	-	10 M	-	10 M	-	10 M	-	10 M	-	10 M
Digital Channels with 3-MSO Option	16	16	16	16	16	16	16	16	16	16
Arbitrary Function Generator Outputs with 3-AFG Option	1	1	1	1	1	1	1	1	1	1
Spectrum Analyzer Channels	1	1	1	1	1	1	1	1	1	1
Standard Spectrum Analyzer Frequency Range	9 kHz - 1 GHz	9 kHz - 1 GHz	9 kHz - 1 GHz	9 kHz - 1 GHz	9 kHz - 1 GHz	9 kHz - 1 GHz	9 kHz - 1 GHz	9 kHz - 1 GHz	9 kHz - 1 GHz	9 kHz - 1 GHz
Optional Spectrum Analyzer Frequency Range with 3-SA3 Option	9 kHz - 3 GHz	9 kHz - 3 GHz	9 kHz - 3 GHz	9 kHz - 3 GHz	9 kHz - 3 GHz	9 kHz - 3 GHz	9 kHz - 3 GHz	9 kHz - 3 GHz	9 kHz - 3 GHz	9 kHz - 3 GHz

Specifications
Model Series	3-Series MDO	4-Series MDO	5-Series MDO	6-Series MDO
Bandwidth	up to 1 GHz	up to 1.5 GHz	up to 2 GHz	up to 8 GHz
Vertical Resolution	8 bits	12 bits	12 bits	12 bits
Display	11.6" HD	13.3" HD	15.6" HD	15.6" HD
Inputs	TekVPI	FlexChannel / TekVPI	FlexChannel / TekVPI	FlexChannel / TekVPI
Advanced Analysis			Compliance / Jitter / Windows OS	Compliance / Jitter / Windows OS

Digital Channels (optional):

Serial Bus Decode & Triggering (optional):

Digital Voltmeter / Frequency Counter (Free with product registration):
