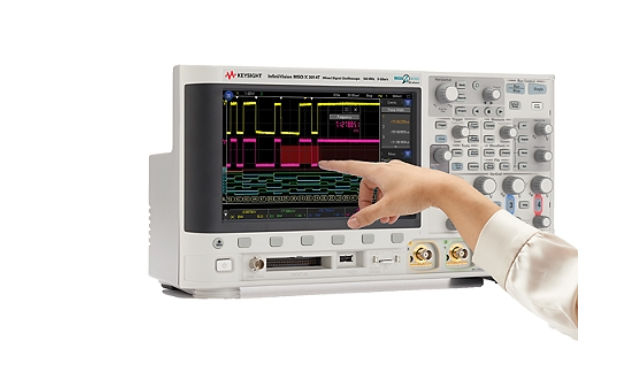

The MSOX3034T, 350 MHz oscilloscope provides 4 analog plus 16 digital channels, 4 Mpts memory, 1,000,000 waveforms/sec update rate and standard touch zone trigger with an 8.5-in capacitive touch screen.
The InfiniiVision 3000A X-Series redefined oscilloscopes. It saw the most signal detail, provided more functionality than any other oscilloscope, and gave you maximum investment protection. It was also the most successful oscilloscope in Hewlett Packard, Agilent and Keysight Technologies, Inc.’s history. The 3000T X-Series continues that legacy.
The 3000T X-Series takes everything that was revolutionary about the A model and adds a capacitive touch screen, a user interface designed for touch, and the exclusive zone touch trigger, all combined with an industry-leading uncompromised update rate of 1 million wfm/s to give you the confidence that you’re seeing all of your signal detail, and the ability to discover any issues. And the addition of new analysis capabilities help you solve your hardest problems quickly.
Key Features |
350 MHz |
4 analog channels |
Easily view and analyze your signals with on the large 8.5-inch capacitive touch screen |
Isolate signals in seconds with exclusive Zone touch triggering |
See more signal detail with the 1,000,000 wfms/s update rate |
Capture more data with up to 4 Mpts memory |
Expand your measurement capabilities with full upgradability: Add bandwidth, digital channels, 20 MHz arbitrary waveform generator, 3-digit voltmeter, serial trigger and analysis & mask testing at any time |
Specifications | |
MSOX3034T Mixed Signal Oscilloscope | |
Feature | Parameter |
Bandwidth Upgrades | Available |
Channels | 4 + 16 |
Max. Memory Depth | 4 Mpts |
Max. Sample Rate | 5 GSa/s |
Display Size | 8.5 inch |
Waveform Update Rate | 1,000,000 wfms/s |
ADC Bits | 8 bits |
Special Triggers | edge pulse width video protocol decodes zone touch edge then edge pattern runt pulse rise/fall time Nth edge burst setup and hold |
Operating System | Embedded |
Specification | ||||||||||
3000 X-Series | ||||||||||
Model Overview | ||||||||||
Model | 3012T | 3014T | 3022T | 3024T | 3032T | 3034T | 3052T | 3054T | 3102T | 3104T |
Bandwidth (–3 dB) | 100 MHz | 100 MHz | 200 MHz | 200 MHz | 350 MHz | 350 MHz | 500 MHz | 500 MHz | 1 GHz | 1 GHz |
Calculated Rise Time (10 to 90%) | ≤ 3.5 ns | ≤ 3.5 ns | ≤ 1.75 ns | ≤ 1.75 ns | ≤ 1 ns | ≤ 1 ns | ≤ 700 ps | ≤ 700 ps | ≤ 450 ps | ≤ 450 ps |
Input Channels | ||||||||||
DSOX | 2 | 4 | 2 | 4 | 2 | 4 | 2 | 4 | 2 | 4 |
MSOX | 2 + 16 | 4 + 16 | 2 + 16 | 4 + 16 | 2 + 16 | 4 + 16 | 2 + 16 | 4 + 16 | 2 + 16 | 4 + 16 |
Specifications | ||||
InfiniiVision X-Series Oscilloscopes | ||||
Model Overview | ||||
Model | InfiniiVision 1000 X-Series | InfiniiVision 2000 X-Series | InfiniiVision 3000T X-Series | InfiniiVision 4000 X-Series |
Analog Channels | 2 and 4 | 2 and 4 | 2 and 4 | 2 and 4 |
Bandwidth (upgradable) | 50, 70, 100, 200 MHz | 70, 100, 200 MHz | 100, 200, 350, 500 MHz, 1 GHz | 200, 350, 500 MHz, 1 GHz, 1.5 GHz |
Digital Channels | External trigger can be used as a 3rd digital channel for 2 channel model | 8 (MSO models or upgrade) * | 16 (MSO models or upgrade) | 16 (MSO models or upgrade) |
Maximum Sample Rate | 2 GSa/s | 2 GSa/s | 5 GSa/s | 5 GSa/s |
Maximum Memory Depth | Up to 2 Mpts standard | 1 Mpt/channel | 4 Mpts | 4 Mpts |
Waveform Update Rate | Up to 200,000 wfms/sec | Up to 200,000 wfms/sec | > 1,000,000 wfms/sec | > 1,000,000 wfms/sec |
Display | 7-inch display | 8.5-inch display | 8.5-inch capacitive touch display | 12.1-inch capacitive touch display |
Zone Touch Trigger | No | No | Standard | Standard |
WaveGen 20-MHz Function/ Arbitrary Waveform Generator | Single-channel function only (standard on G models) | Single-channel function only (option) | Single-channel AWG (option) | Dual-channel AWG (option) |
Integrated Digital Voltmeter (standard) | Yes | Yes | Yes | Yes |
Integrated Hardware Counter (standard) | 5-digits | 5-digits | 5-digits, 8-digits - totalizer | 5-digits |
Serial Protocol Analysis | I 2C, UART( standard on all models) SPI, CAN/LIN (standard on DSO models) | Yes (optional: CAN, LIN, I²C, SPI, RS232/UART) * | Yes (optional: ARINC 429, CAN/CANdbc/CAN-FD/LIN/LIN symbolic, SENT, FlexRay, I2C, I2S, LIN, MIL-STD-1553, SPI, UART/RS232, CXPI, Manchester/NRZ) | Yes (optional: ARINC 429, CAN/CAN-dbc/CANFD/LIN/LIN symbolic, SENT, FlexRay, I2C, I2S, LIN, MIL-STD-1553, SPI, UART/RS232, USB 2.0, CXPI, Manchester/NRZ) |
Segmented Memory | Yes (standard on DSO model) | Standard | Standard | Standard |
Mask/Limit Testing | Yes (standard on DSO model) | Yes (option) | Yes (option) | Yes (option) |
Power Analysis | No | No | Yes (option) | Yes (option) |
USB 2.0 Signal Quality test | No | No | No | Yes (option) |
HDTV Analysis | No | No | Yes (option) | Yes (option) |
Advanced Waveform Math | No | Standard | Standard | Standard |
Connectivity | Standard USB 2.0, LAN | Standard USB 2.0 (LAN/video option) (GPIB option) | Standard USB2.0 (LAN/video option) (GPIB option) | Standard USB2.0, LAN, video out (GPIB option) |
Notes:
* The digital channels and serial protocol analysis cannot be used simultaneously on 2000 X-Series.
