快速報價: EXFO MAX-720C-Q1-QUAD-XX
EXFO MAX-720C-Q1-QUAD-XX
MaxTester QUAD OTDR Module; 850/1300, 1310/1550
型號
MAX-720C-Q1-QUAD-XX產品類別
Network & Fiber Installations製造商
EXFO配置型號包含以下特性:
Network & Fiber InstallationsOptical Time Domain ReflectometersHandheldModular配置
技术指标
產品總覽
資源
讓我們為您提供準確的配置
技术指标
在選擇附件時標明其特性， 有關附件詳細資訊請參見“配置”選項。
| 特性 | 參數 |
|---|---|
| Form Factor | Handheld |
| Form Factor | Modular |
產品總覽

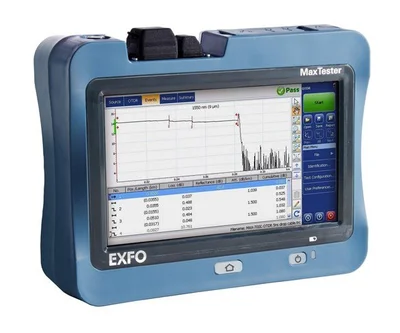

MaxTester 720C - QUAD OTDR; 850/1300 nm, 1310/1550 nm
This fully featured OTDR with tablet-inspired design combines singlemode and multimode fiber testing in a dedicated and compact quad unit to allow everyday field testing in access networks, data centers and private enterprise networks.
The MaxTester 720C (MAX-720C) provides first-time-right fiber characterization thanks to its short dead zones and effective dynamic range. This compact quad unit is optimized for singlemode and multimode field testing for data centers, private/enterprise networks, FTTA and fronthaul deployments.
The MAX-720C includes a power meter, a visual fault locator, Wi-Fi connectivity and high-resolution inspection capabilities, making the unit a complete and an integrated contractor tool.
| Key Features |
| Handy, lightweight, powerful, tablet-inspired design |
| 7-inch, outdoor-enhanced touchscreen–the biggest in the handheld industry |
| 12-hour battery life |
| Dynamic range of up to 36 dB in singlemode and 29 dB in multimode |
| Live fiber testing at 1625 nm |
| iOLM-ready: intelligent and dynamic application that turns complex OTDR trace analysis into a one-touch task |
| Rugged design built for the outside plant |
| Specifications | |
| MaxTester 720C | |
| Features | Parameters |
| Display | 7-in (178-mm) outdoor-enhanced touchscreen, 800 x 480 TFT |
| Interfaces | Two USB 2.0 ports RJ45 LAN 10/100 Mbit/s |
| Storage | 2 GB internal memory (20 000 OTDR traces, typical) |
| Batteries | Rechargeable lithium-polymer battery 12 hours of operation as per Telcordia (Bellcore) TR-NWT-001138 |
| Power Supply | Power supply AC/DC adapter, input 100-240 VAC, 50-60 Hz |
| Wavelength (nm) * | 850 ± 20/1300 ± 20/1310 ± 20/1550 ± 20/1625 ± 10 |
Note:
* Typical.
| Specifications | |
| MaxTester 720C | |
| Model Overview | |
| Model | Description |
| MAX-720C | OTDR |
Optical Configuration (MAX-720C-XX) | |
| MAX-720C-SM1 | SM OTDR, 1310/1550 nm |
| MAX-720C-SM2 | SM OTDR, 1310/1550 nm and 1625 nm live (a) |
| MAX-720C-Q1 | MM OTDR, 850/1300 nm, QUAD-ready (a) (b) |
| MAX-720C-Q1-QUAD | QUAD OTDR, 850/1300 nm and 1310/1550 nm (a)(b) |
Base Software (MAX-720C-XX-XX) | |
| OTDR | Enables OTDR application only |
| iOLM | Enables iOLM application only |
| Oi | Enables OTDR and iOLM applications |
Singlemode and Multimode Connector (c) (MAX-720C-XX-XX-XX) | |
| EA-EUI-28 | APC/DIN 47256 |
| EA-EUI-89 | APC/FC narrow key |
| EA-EUI-91 | APC/SC |
| EA-EUI-95 | APC/E-2000 |
| EA-EUI-98 | APC/LC |
| EI-EUI-28 | UPC/DIN 47256 |
| EI-EUI-89 | UPC/FC narrow key |
| EI-EUI-90 | UPC/ST |
| EI-EUI-91 | UPC/SC |
| EI-EUI-95 | UPC/E-2000 |
| EI-EUI-98 | UPC/LC |
Notes:
(a) The two ports are configured with the same adapter type.
(b) Multimode connector port will be supplied in UPC.
(c) Multimode connectors available in EI (UPC) only.
